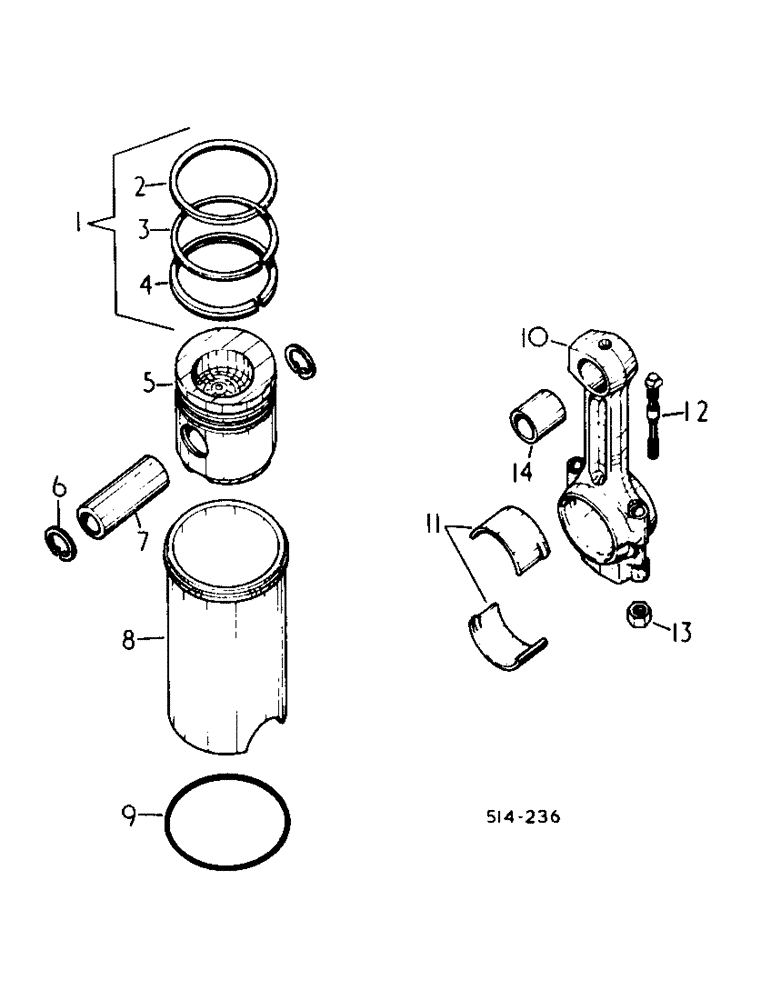

Запчасти Case IH 484 (12-18) - POWER, CONNECTING ROD, PISTONS AND SLEEVE Power

1

3218416R92

PISTON RING SET

RING SET, piston, chrome, replaces 3144452R92, used w/3 ring pistons

3шт.

2

RING, compression, first, used w/3 ring pistons, order set 3144452R91 or 3218416R92

3шт.

3

RING, compression, second, used w/3 ring pistons, order set 3144452R91 or 3218416R92

3шт.

4

RING, compression, third, used w/3 ring pistons, order set 3144452R91 or 3218416R92

3шт.

5

3218759R95

SLEEVE ASSY

PISTON W/SLEEVE, 8 1/2" long

3шт.

3218758R95 is Piston W/Sleeve that is 8" long.

1шт.

6

933327R1

SNAP RING,M36, Int

SPRING, retainer

6шт.

7

3055217R1

PISTON PIN

PIN, piston

3шт.

8

3139592R4

SLEEVE CYLINDER

SLEEVE, cylinder

3шт.

9

3228344R1

SEALING RING,5mm Thk x 110mm ID

O-RING

3шт.

Engine serial no. D375917 and below.

1шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

O-RING

3шт.

Engine serial no. D375918 and above.

1шт.

10

3055030R24

ROD, CONNECTING

ROD ASSY, connecting

3шт.

11

3055351R91

BEARING ASSY

BEARING ASSY, connecting rod, std

3шт.

11

3056834R11

BEARING ASSY

BEARING ASSY, connecting rod 0.25mm U.S.

3шт.

Engine serial no. D374567 and above.

1шт.

12

3055033R11

BOLT

W/Nut, Connecting rod

6шт.

13

NUT, connecting rod bolt, not serviced separately

6шт.

14

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

3шт.
