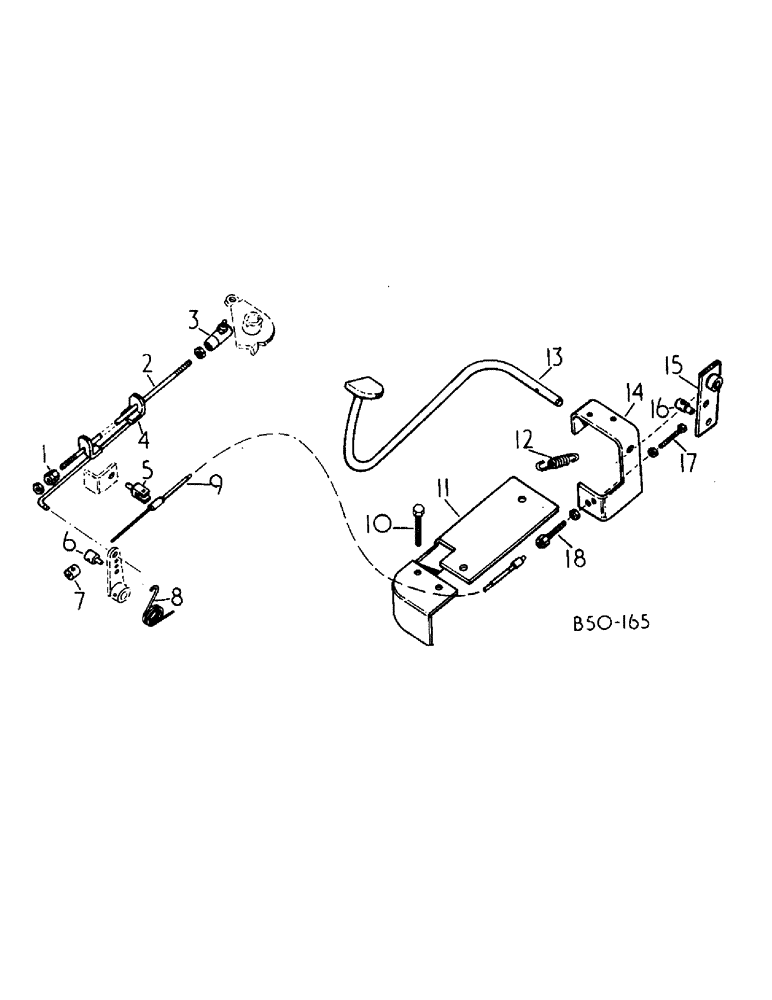

Запчасти Case IH 484 (12-13) - POWER, FOOT PEDAL ACCELERATOR, CABLE TYPE Power

1

528776R1

NUT

foot accelerator pick-up rod swivel

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-NF pln jam type 5

1шт.

2

528775R1

ROD

accelerator pick-up

1шт.

3

191474

BALL JOINT

JOINT, 1/4 UNF ball, or

1шт.

3

192227

BALL JOINT

JOINT, 1/4 UNF ball, or

1шт.

3

27258R1

BALL JOINT

JOINT, 1/4 UNF ball

1шт.

4

3121956R1

ROD ASSY.

ROD ASSY, bell crank pull

1шт.

934606R1

COTTER PIN,M1.6 x 16

PIN, 1.6 x 16 mm pln cot

1шт.

933347R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6mm pln

1шт.

5

534621R1

CLAMP

swivel

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

454065

SCREW,Hex Hd, #10-32 x 3/4"

no. 10 NF x 3/4 znd H/HD mach

1шт.

453284

NUT,#10-32

no. 10-NF CAD mach screw type 1

1шт.

6

3121958R1

PIVOT

foot accelerator cable

1шт.

933346R1

WASHER,M6 x 12 x 1.6

6.4 x 12.5 x 1.6mm pln

1шт.

934787R1

COTTER PIN,M1.6 x 10

PIN, 1.6 x 10 mm pln cot

1шт.

7

3121959R1

STOP

foot accelerator cable end

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

no. 8 x 3/8 pln h/hd mach

1шт.

8

539012R1

SPRING

torsion

1шт.

9

3112807R2

CABLE

1шт.

Use 1502356C1 Cable

1шт.

10

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

3123874R1

SHIELD

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

12

704526R1

SPRING

accelerator bell crank arm return

1шт.

13

3121948R2

PEDAL

ASSY, foot accelerator

1шт.

14

3121950R2

BRACKET

ASSY, foot accelerator

1шт.

181593

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

5/16-NF x 5/8 type 5

2шт.

120368

NUT,5/16"-24, G5

2шт.

15

3121953R1

ARM

ASY, accelerator bell crank

1шт.

16

396388R1

PIVOT

accelerator arm

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, 1/16 x l/2 pln cot

1шт.

446179

WASHER,#12

.250 x .500 x .036

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

no. 8 x 3/8 pln h-hd mach

1шт.

17

3114271R1

BOLT,Hex, 5/16" x 1 3/4"

pedal stop

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

18

3123877R1

ADJUSTER

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.
