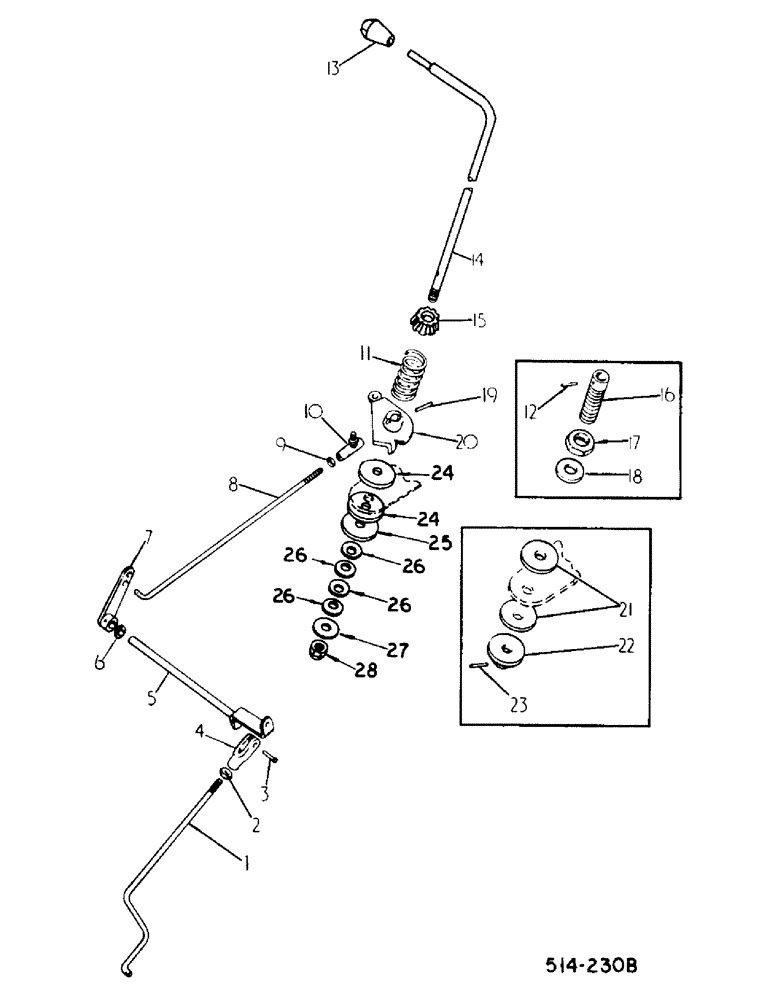

Запчасти Case IH 484 (12-11) - POWER, GOVERNOR CONTROLS, BOSCH Power

1

528321R3

ROD

front governor control

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

1шт.

2

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-NF pln jam type 5

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x .770 pln clevis

1шт.

4

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS, 1/4-28 x 1-11/16 short adj rod end

1шт.

5

528325R2

ARM

ASSY, governor control idler

1шт.

6

Q1597

WASHER

13/32 x 3/4 x 16 ga plain, or

1шт.

6

20285H

WASHER

13/32 x 3/4 x 11 ga plain

1шт.

7

539572R2

LEVER

ASSY, idler arm

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

8

528336R1

ROD

rear governor control

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 pln cot

1шт.

9

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

10

191474

BALL JOINT

JOINT, 1/4-28 ball, or

1шт.

10

27258R1

BALL JOINT

JOINT, 1/4-28 ball

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-NF pln jam type 5

1шт.

25-114

NUT,1/4"-28, G5

1/4-NF pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

65344C1

SPRING

governor friction control, used w/rod 3121391R1

1шт.

12

19313R1

PIN,5/32" x 7/8", Coiled

5/32 x 1 HV coiled spring

1шт.

13

402584R1

BUTTON

KNOB, governor control handle

1шт.

14

3121391R2

ROD

governor control handle

1шт.

When R2 rod is furnished for service for R1 rod, also order Ref. 24 - 28.

1шт.

15

528290R1

GUIDE RING

COLLAR, governor control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW, no. 8 x 3/8 pln F/PT HDL/HS set

1шт.

16

65345C1

SPACER

ajdustable, used w/rod 3121391R1

1шт.

17

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 znd hex jam, used w/rod 3121391R1

1шт.

18

467750R1

WASHER

25/32 x 1-1/2 x .120 znd, used w/rod 3121391R1

1шт.

19

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

20

528291R3

ARM ASSY.

ARM ASSY, governor control rod

1шт.

21

394716R1

DISC

governor control friction, used w/rod 3121391R1

2шт.

22

528294R1

PLATE ASSY.

PLATE ASSY, governor control friction, used w/rod 3121391R1

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

23

19313R1

PIN,5/32" x 7/8", Coiled

Used w/rod 3121391R1 5/32" x 7/8", Coiled

1шт.

24

3123275R1

FRICTION WASHER

DISC, governor control friction

2шт.

Ref #24 is the same as Ref #21 except it is .010 Thicker

1шт.

25

22042R1

WASHER

.531 x 2.000 x .105

1шт.

26

1500778C1

DISC

spring 24.4 x 12.9 x 0.90

4шт.

27

22187R1

WASHER

.531 x 1.125 x .054

1шт.

28

19764R1

LOCK NUT,1/2"-20

NUT, 1/2 UNF self locking, replaces 894980H1

1шт.
