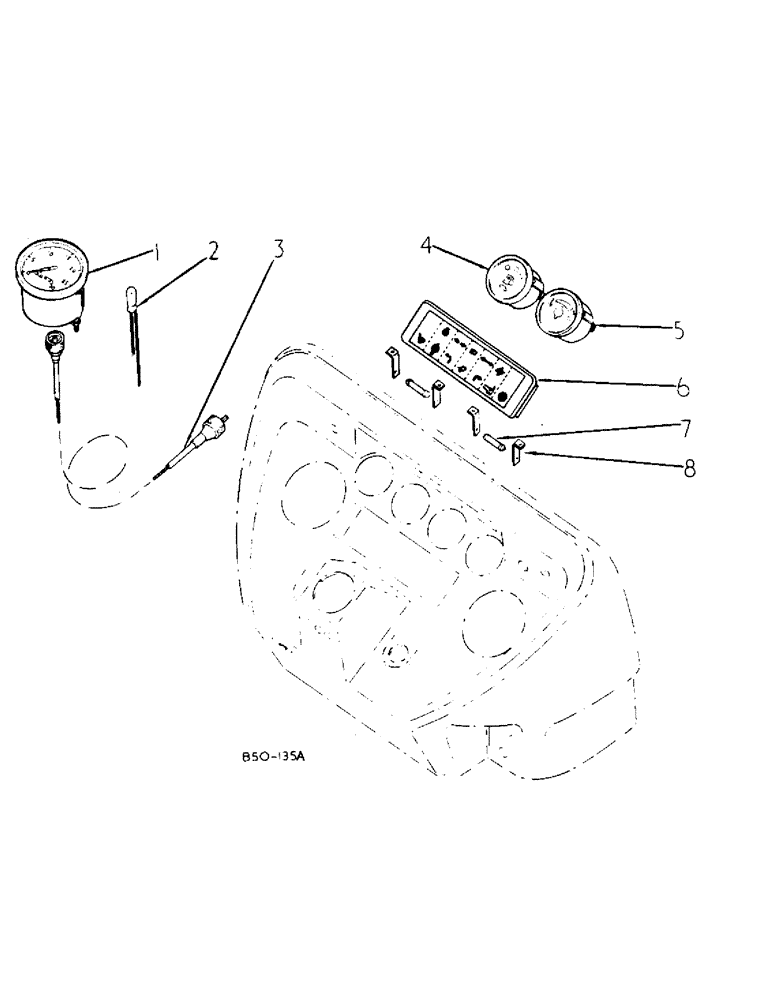

Запчасти Case IH 484 (11-02) - INSTRUMENTS Instruments

1

66455C1

GAUGE

TACHOMETER, or

1шт.

1

3125106R92

TACHOMETER

2150 RPM PTO

1шт.

1

66344C1

TACHOMETER

or

1шт.

1

3125874R92

TACHOMETER

1950 RPM PTO

1шт.

2

3041099R1

LAMP

12V 2.2W mes cap, used w/66455C1 tachometer

1шт.

2

3123661R1

HOLDER

LAMP ASSY, tachometer/speedometer

2шт.

529233R1

LAMP

12V-3W wedge type capless

2шт.

3125084R91

CABLE

ASSY, tachometer illumination

1шт.

3

529235R2

FLEXIBLE DRIVE SHAFT

CABLE ASSY, tachometer drive

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, tachometer cable

2шт.

4

3121239R1

FUEL GAUGE

GAUGE ASSY, fuel, AC Delco, use only w/AC Delco sending unit 529790R1 or

1шт.

4

3129840R1

FUEL GAUGE

GAUGE ASSY, fuel, Icknield, use only w/Icknield sending unit 3129841R91

1шт.

5

3121240R1

ELECTRICAL GAUGE

GAUGE ASSY, water temp, AC Delco, use only w/AC Delco sending unit 3073787C91, or

1шт.

5

3127959R1

ELECTRICAL GAUGE

GAUGE ASSY, water temp, Icknield, use only w/Icknield sending unit 3127956R1

1шт.

6

1502006C1

HOLDER

warning light bulb, replaces 3121636R2, Includes: Refs. 3121718R1 and 3121717R1

1шт.

3121718R1

SCREW

no. 6-32 x 5/8 cs hd, used w/3121636R2

4шт.

3121717R1

LOCK NUT

lokut, used w/3121636R2

4шт.

529233R1

LAMP

112V-3W wedge type capless

6шт.

7

710196R1

BULB,C5W, 12V, 5W

Festoon C11, 12Vm 5W

2шт.

8

3121705R1

CONTACT HOUSING

lamp, Includes: Ref. 3121704R1

4шт.

3121704R1

SCREW

no. 4-40 x 5/16 slt fil hd

4шт.

3121703R1

TERMINAL CONNECTOR

TERMINAL, 1/4 blade

4шт.

1135281R1

PRODUCT GRAPHIC

speed chart MPH, power train type ER

1шт.

1093205R1

DECAL

PRODUCT GRAPHIC, speed chart MPH, power train type BR, tractors w/13.6-28, 14.9-24 or 14.9-28 rear tires

1шт.
