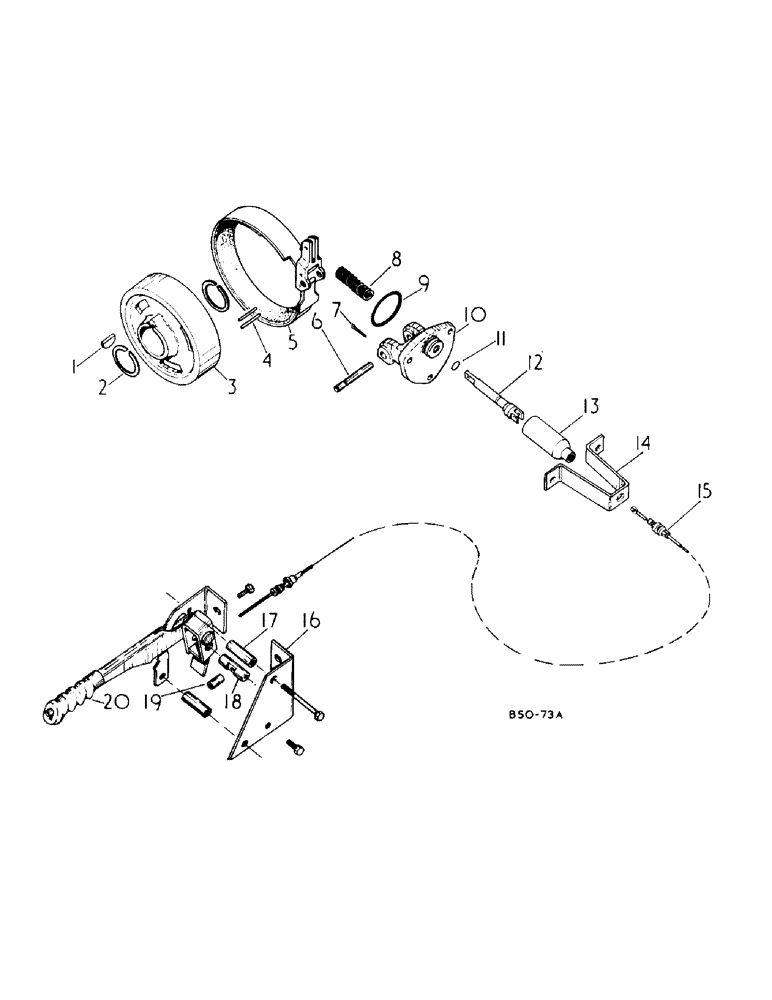

Запчасти Case IH 484 (04-04) - BRAKES, PARK BRAKE (5.1) - BRAKES

1

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

327058R1

RING, SNAP

RING, retaining snap

2шт.

3

399828R1

HUB

brake drum

1шт.

4

535544R1

PIN

1-1/2 x .250 dia.

2шт.

5

401992R3

BAND

ASSY, brake and actuating toggle

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

PIN, 5/16 x .940 PHC clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

6

401998R1

PIVOT PIN

PIN, parking brake pivot

1шт.

7

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

8

402000R1

SPRING

parking brake return

1шт.

9

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32, parking brake pivot

1шт.

10

401997R2

PIVOT

parking brake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16, pivot plunger

1шт.

12

402014R1

PLUNGER

parking brake pivot

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

PIN, 5/16 x .938 pln hd type 1

1шт.

13

402015R1

BOOT

cable protection

1шт.

14

401999R1

SUPPORT

BRACKET, cable hsg. anchor lower

1шт.

15

529084R1

NO LONGER SERVICED

CABLE ASSY, parking brake, order 3129788R2 w/pin 3129789R1, block 3129790R1 and nut 144418H

1шт.

15

3129788R2

CABLE ASSY.

CABLE ASSY, parking brake

1шт.

144418H

LOCK NUT,5/16"-24, GB

NUT, LOCK, 5/16"-24, GB

1шт.

148150

HAIR PIN COTTER,3/8" Retainer

PIN, 3/8 pln ret

2шт.

16

1502240C1

SUPPORT

BRACKET ASSY, handbrake support, replaces 3121680R1

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

17

11531N

SPACER,3/8" Pipe x 2"

.675 x .493 x 2.0 long

2шт.

18

3121683R1

PIN

parking brake cable, Serial Range: -5514

1шт.

3129789R1

PIN,16mm OD x 50mm L

parking brake cable, Start Serial: 5515

1шт.

19

48094K

SPACER

.5 x .334 x .938 long, Serial Range: -5514

1шт.

19

3129790R1

BLOCK

park lock cable, Start Serial: 5515

1шт.

20

3129929R92

LEVER ASSY.

LEVER ASSY, park brake hand, replaces 3121682 R92, for components see park brake hand lever

1шт.
