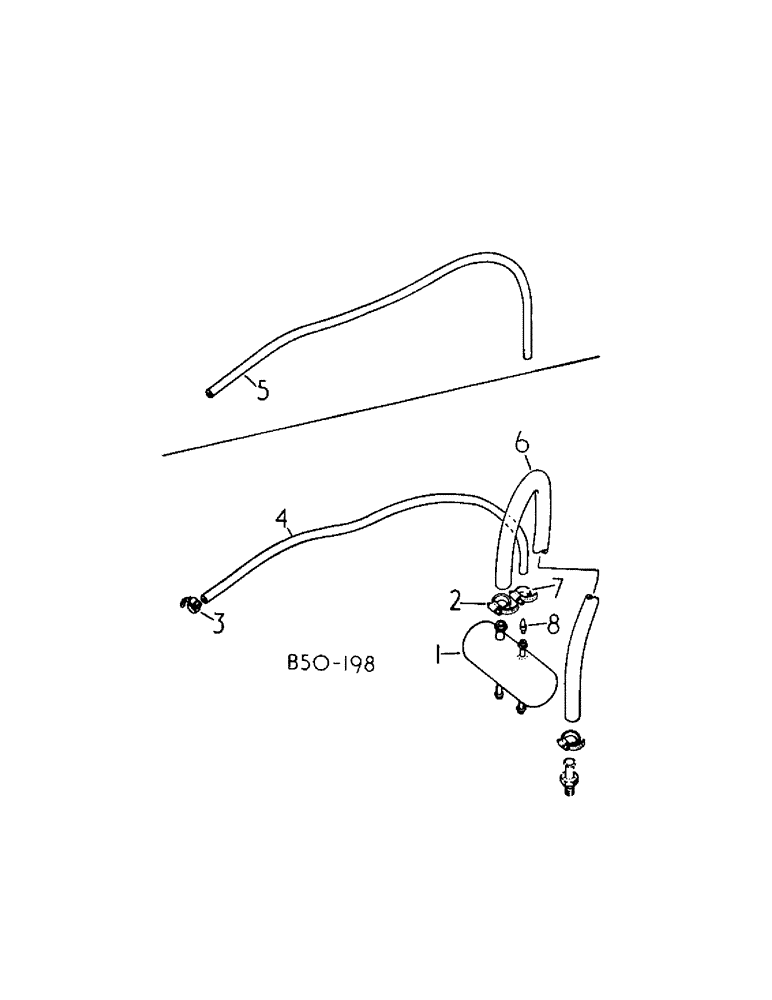

Запчасти Case IH 484 (04-03[A]) - BRAKES, BRAKE RESERVOIR AND HOSES, TRACTOR WITH SERIAL NO. 3075 AND ABOVE (5.1) - BRAKES

1

1287885C1

RESERVOIR

brake replaces 3125839R1

1шт.

2

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, no. 10 hose, or

2шт.

2

3074617R1

CLAMP

hose

2шт.

3

3125239R1

COLLAR

CLAMP, worm drive hose

1шт.

4

(Not use this application)

1шт.

5

3125841R1

HOSE,8.50 mm ID x 580.00 mm, SAE 100R6 Class 14

brake reservoir supply

1шт.

6

3125842R1

HOSE,13.50 mm ID x 250.00 mm, SAE 100R6 Class 14

brake reservoir dump

1шт.

7

3125239R1

COLLAR

CLAMP, worm drive hose

1шт.

8

537518R1

SCREEN

AND ORIFICE ASSY, brake

1шт.
