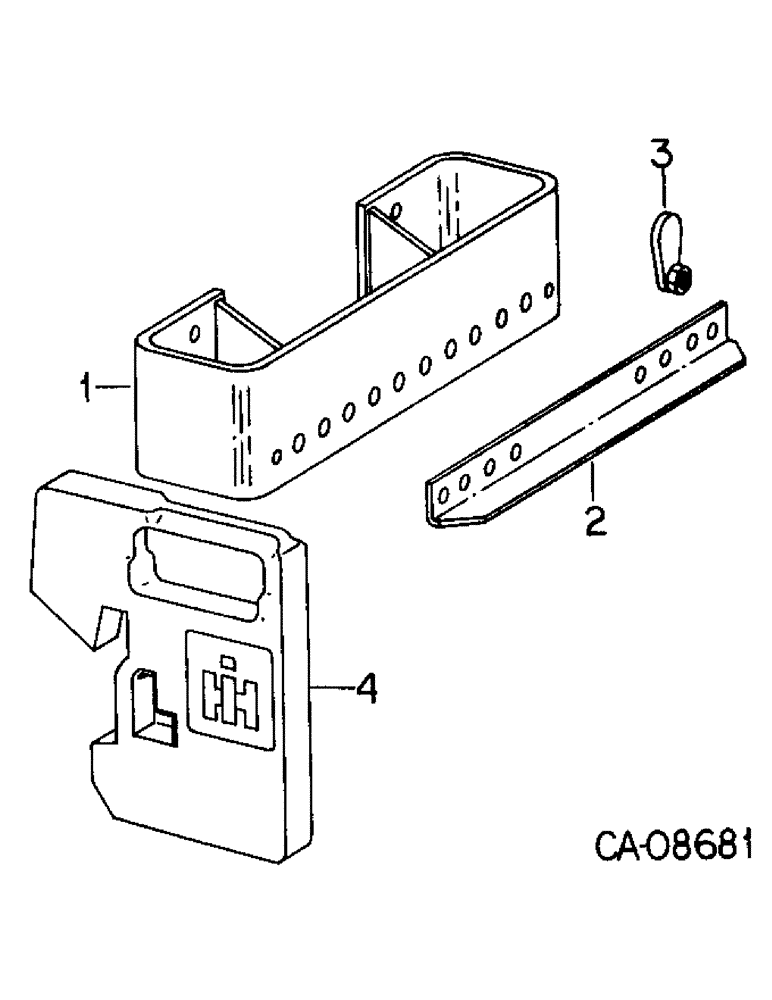

Запчасти Case IH 484 (09-07) - FRAME, FRONT END WEIGHT BRACKETS AND WEIGHTS (12) - FRAME

1

383389R21

BRACKET

ASSY, front weight mounting

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 type 8

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Upper holes 3/4"

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga, key hole slot

1шт.

2

536042R2

BAR

front weight retaining

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4 type 5

2шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

5/8 x 3-1/4 type 5

2шт.

21793R1

WASHER

.656 x 1.250 x .164

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

2шт.

3

74202C1

CAM

weight locking

2шт.

4

WEIGHT, 100 lb, use 2 to 4 as required, weights are only furnished as a machine attachment

1шт.
