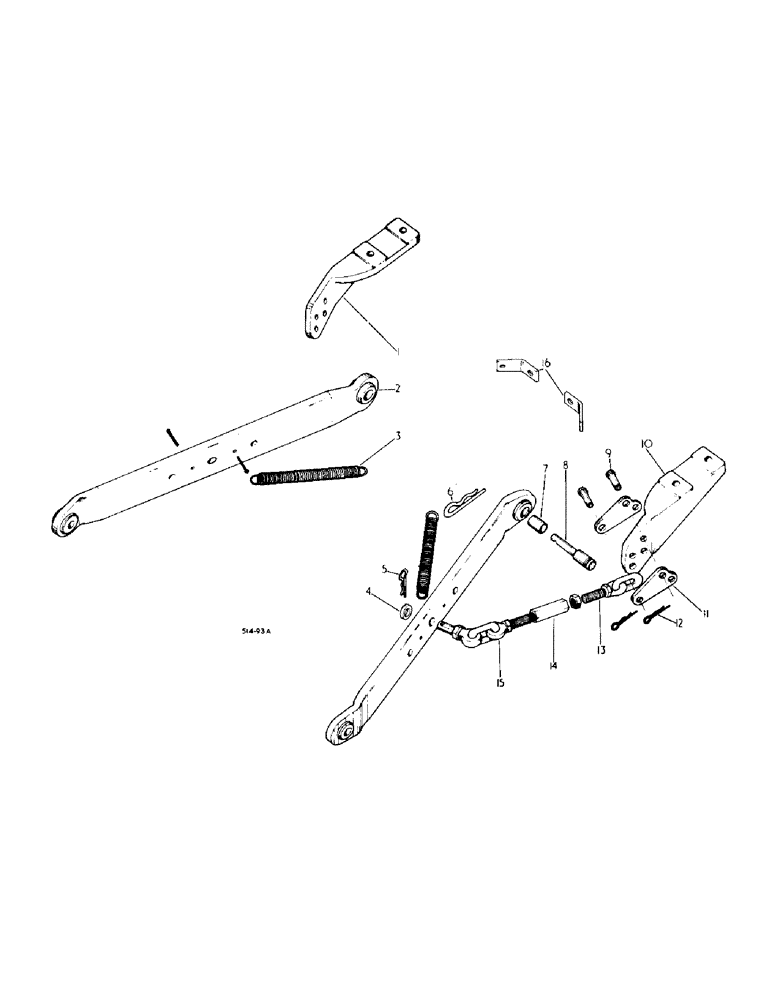

Запчасти Case IH 484 (09-05) - FRAME, LOWER LINKS, THREE POINT HITCH WITH OUTSIDE CHECK CHAINS, SERIAL NO. 6097 AND BELOW (12) - FRAME

1

529874R1

SUPPORT

BRACKET, check chain LH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

1286791C91

LOWER LINK

LINK ASSY, lower (replaces 529870R1)

2шт.

The width of the lower implement ball was changed for 1 3/4 to 1 3/8" S-4992.

1шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

4шт.

3

662632R1

SPRING

check chain retraining

2шт.

4

529894R1

WASHER

adj eye bolt chain pin

2шт.

5

529895R1

CLIP

PIN, adj eye bolt pin washer spring

2шт.

6

538406R1

COTTER PIN

PIN, quick attachable cotter

2шт.

7

530826R1

BUSHING

lower link

2шт.

8

530825R1

PIN,31.75mm OD x 119.84mm L

lower link

2шт.

9

528112R2

PIN,15.77mm OD x 54.61mm L

limiter chain

4шт.

10

529875R1

SUPPORT

BRACKET, check chain RH

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

529878R1

STRAP

check chain adj

4шт.

12

720631R1

LINCH PIN

PIN, adj strap cotter

4шт.

13

529879R2

BOLT,Eye & Chain

ASSY, eye and chain adj

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

2шт.

14

529885R1

TURNBUCKLE,3/4" - 10

check chain adj eye bolt

2шт.

15

529886R2

BOLT

ASSY, lift link pin and chain

2шт.

16

3121228R1

BRACKET

sway chain

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8 x 1-1/4 pln h/hd cap

2шт.

1092610R2

DECAL

PRODUCT GRAPHIC, sway chains

1шт.
