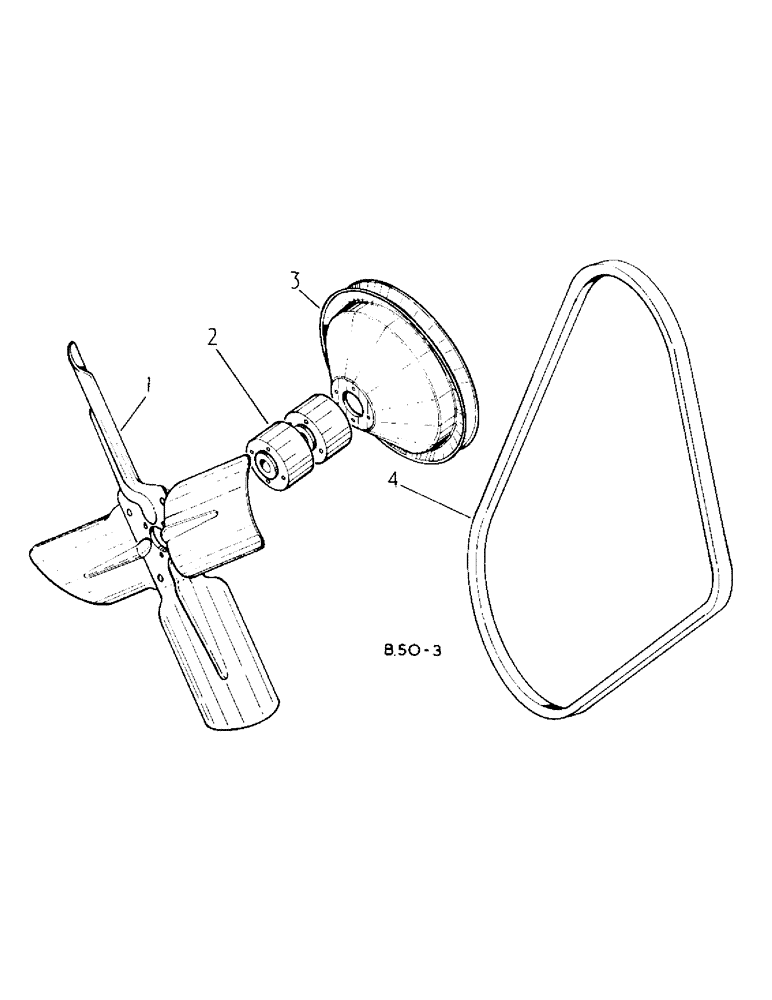

Запчасти Case IH 484 (06-03) - COOLING, FAN Cooling

1

82797R91

NO LONGER SERVICED

BLADE ASSY, fan, 17 in. 4 blade, or

1шт.

Tractors with 9-11/16 dia crankshaft pulley.

1шт.

1

86897R91

FAN

BLADE ASSY, fan, 17 in. 4 blade

1шт.

Tractors with 9-11/16 dia crankshaft pulley.

1шт.

1

527472R1

FAN

BLADE ASSY, fan, 18 in. 4 blade, order 84355C1

1шт.

Tractors with 9-11/16 dia crankshaft pulley.

1шт.

1

84355C1

FAN

BLADE ASSY, fan, 18 in. 6 blade, replaces 527472R1 by also ordering 4 each of bolt 433070 and washer 103339

1шт.

Tractors with 9-11/16 dia crankshaft pulley.

1шт.

1

1275810C1

FAN

BLADE ASSY, fan, 18 in. 5 blade

1шт.

Tractors with 8-3/8 dia crankshaft pulley.

1шт.

433065

BOLT,Hex, 1/4" - 28 x 3 1/2", Gr 5

1/4-NF x 3-1/2 pln type 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

4шт.

2

403335R1

SPACER

fan

2шт.

3

401124R2

PULLEY

water pump

1шт.

4

3129139R1

V-BELT,13.70 mm W

V-BELT , Fan, See note A, Belt length 62 inches 13.70 mm W

1шт.

4

3129140R1

V-BELT,13.70 mm W

Fan, See note B, Belt length 60-3/4 inches 13.70 mm W

1шт.
