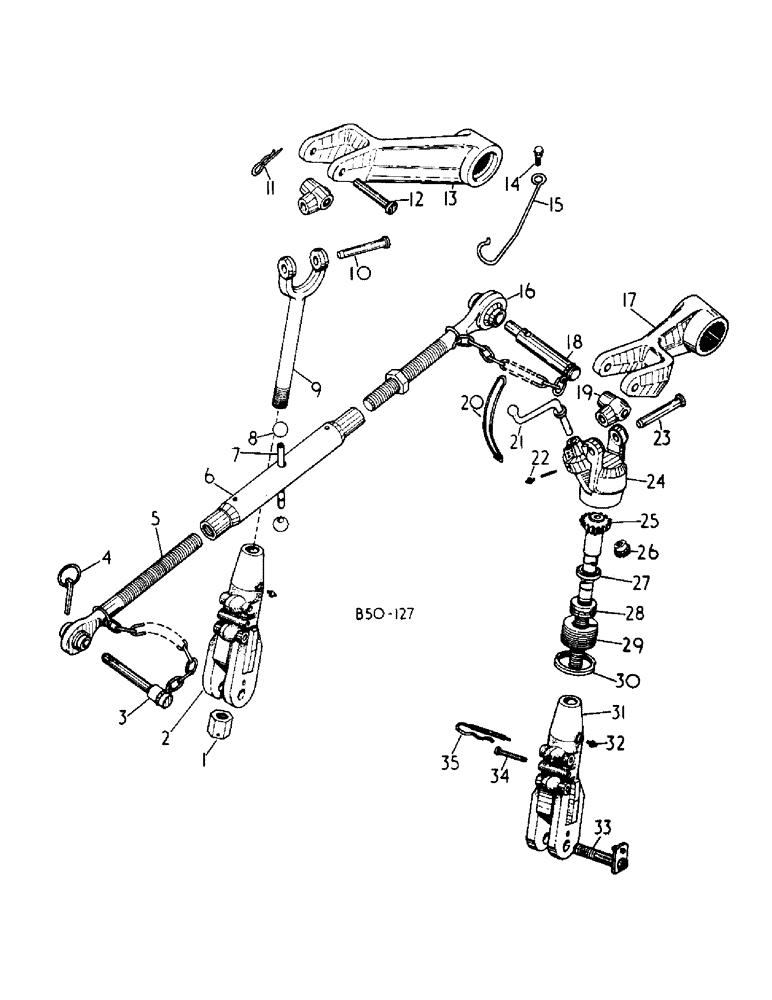

Запчасти Case IH 484 (09-02) - FRAME, THREE POINT HITCH (12) - FRAME

1

527937R1

NUT

lift link

2шт.

2

3121964R1

HOUSING

lift link yoke

1шт.

575814R1

WASHER

.781 x 2.000 x .105 pln

2шт.

3

528081R1

PIN ASSY.

PIN ASSY, upper link cat I

1шт.

4

533189R1

PIN

ASSY, implement

1шт.

5

528000R1

SCREW

ASSY, RH thd upper

1шт.

6

528002R1

TURNBUCKLE

1шт.

426899

NUT,Jam, 1"-8, G5

1 jam type 5

1шт.

7

65958C2

ROD

turnbuckle handle

1шт.

8

3048296R1

BUTTON

KNOB, turnbuckle rod

2шт.

9

527967R1

CLEVIS,7/8" - 9

YOKE ASSY, lift LH link

1шт.

10

3069069R1

PIN

5/8 x 3-3/4 hardened

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

720631R1

LINCH PIN

PIN, rockshaft arm cotter

2шт.

12

3044309R1

PIN

rockshaft arm hd

2шт.

13

402634R2

ROCKER ARM

ARM, rockshaft

1шт.

14

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

BOLT, Shoulder

1шт.

15

530050R3

CLIP,ELECTRICAL

CLIP, upper link storage

1шт.

23042R1

WASHER

.531 x 1.000 x .027

1шт.

16

527998R1

SCREW

ASSY, LH thd upper

1шт.

17

402634R2

ROCKER ARM

ARM, rockshaft

1шт.

18

528084R1

HITCH PIN

PIN ASSY, upper link cat II

1шт.

530049R1

CLIP, SPRING

PIN, QA cotter

1шт.

19

539247R1

BRACKET, PIVOT

SWIVEL, leveling screw

2шт.

20

3072424R1

SPRING

leveling screw handle

1шт.

21

527943R1

CRANK

HANDLE, leveling screw

1шт.

22

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

23

3069069R1

PIN

5/8 x 3-3/4 hardened

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

24

3072422R2

HOUSING

leveling screw

1шт.

25

69991C91

SCREW

ASSY, leveling, or

1шт.

25

69984C1

NO LONGER SERVICED,7/16" - 20 x 1 1/8"

SCREW ASSY, leveling

1шт.

26

3069063R1

GEAR

pinion

1шт.

142506

LATCH

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

27

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

lift RH link leveling screw brg

1шт.

28

3044346R91

BALL BEARING

BEARING, leveling screw

1шт.

29

3069064R1

BEARING

leveling screw

1шт.

30

3069065R1

LOCK NUT

leveling screw brg

1шт.

31

3121964R1

HOUSING

lift link yoke

1шт.

575814R1

WASHER

.781 x 2.000 x .105 pln

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

32

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

2шт.

33

527981R1

PIN ASSY.

PIN ASSY, rear chain bracket

2шт.

231-14012

LOCK NUT,3/4"-10, GB

NUT, 3/4 pln P/T lock

2шт.

34

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

PIN, float stop, Includes: Ref. 107762

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

35

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

PIN ASSY, lift link lock

2шт.

528085R91

UPPER LINK

LINK ASSY, upper

1шт.
