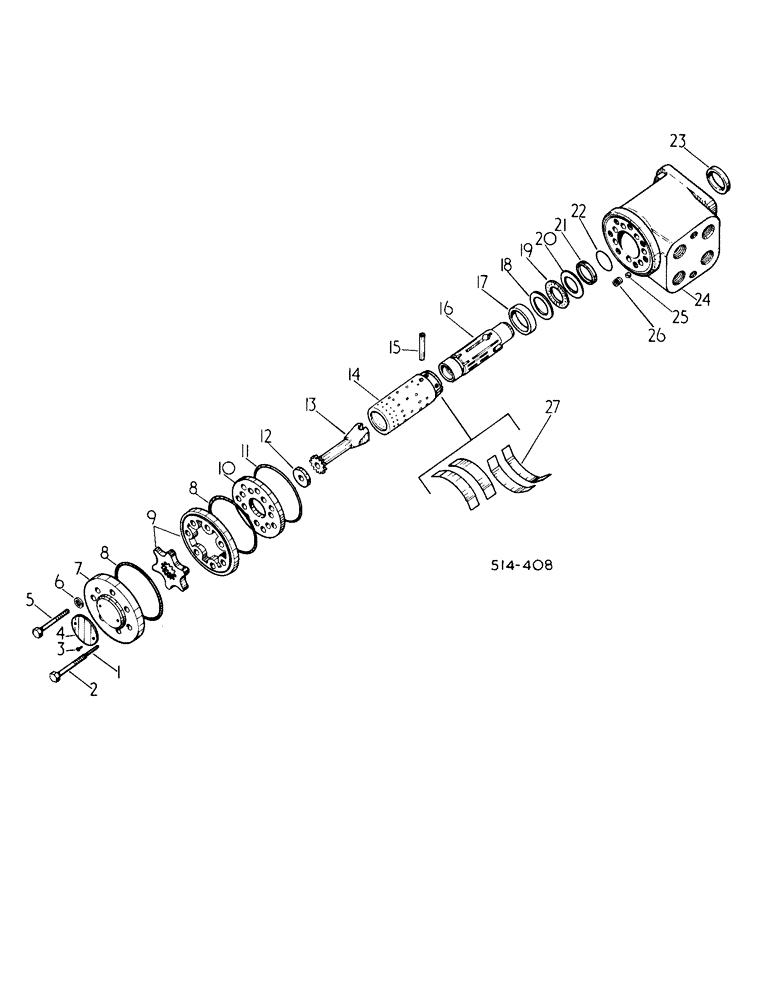

Запчасти Case IH 484 (10-20) - HYDRAULICS, INTEGRAL HYDROSTATIC POWER STEERING VALVE (07) - HYDRAULICS

67698C93

VALVE

ASSY, integral power steering

1шт.

1

3112271R1

PIN, ROLL

ed

1шт.

2

SCREW

1шт.

3

SCREW

2шт.

4

PLATE, rating, not serviced separately

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

plain

6шт.

5

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

driller

1шт.

6

WASHER, order seal & spring package 1500443C91

7шт.

7

1500444C1

CAP

end

1шт.

8

O-RING, order seal and spring package 1500443C91

2шт.

9

538918R1

ROTOR ASSY.

SET, rotor

1шт.

10

3112276R1

PLATE

valve

1шт.

11

O-RING, order seal and spring package 1500443C91

1шт.

12

538916R1

SPACER

drive link

1шт.

13

538915R1

DRIVE SHAFT

LINK, drive

1шт.

14

SLEEVE, not serviced separately

1шт.

15

3112269R1

PIN

cross

1шт.

16

SLEEVE, not serviced separately

1шт.

17

3112264R1

RING

1шт.

18

RACE, bearing, order bearing assy 3234338R91

1шт.

19

BEARING, needle, order bearing assy 3234338R91

1шт.

20

WASHER, axial, order bearing assy 3234338R91

1шт.

21

RING, kin, order seal and spring package 1500443C91

1шт.

22

O-RING, order seal and spring package 1500443C91

1шт.

23

RING, seal, order seal and spring package 1500443C91

1шт.

24

HOUSING, consists of items 14 and 16, not serviced separately

1шт.

25

3112270R1

BALL

steel

1шт.

26

3112272R1

BUSHING

threaded

1шт.

27

SPRING, lead, order seal & spring package 1500443C91

1шт.

3234338R91

BEARING SET

ASSY, consists of items 18, 19 and 20

1шт.

1500443C91

SEAL KIT

PACKAGE, seal & spring service, consists of (1) ring, dust seal (NSS) (1) seal, lip (NSS) (1) o-ring (NSS) (1) o-ring (NSS) (2) o-ring (NSS) (7) washer (NSS) (2) spring leaf (NSS) (2) spring

1шт.
