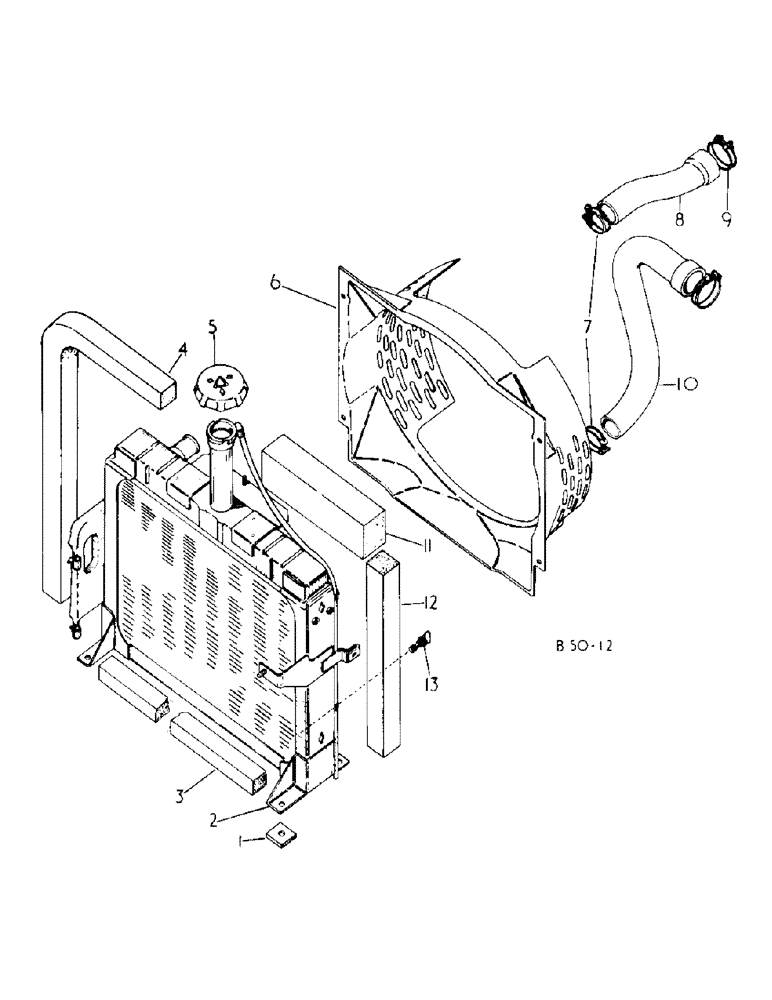

Запчасти Case IH 484 (06-02) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

47240D

PAD

radiator

4шт.

496-21047

WASHER

.469 x .922 x .051 pln

4шт.

2

3121412R91

RADIATOR

ASSY, Serial Range: -8168

1шт.

2

3121413R91

RADIATOR

ASSY, Start Serial: 8169

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1 pln type 5

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

142745

NUT, WING

NUT, 5/16 wing

1шт.

3

537162R1

FILLING STRIP

GASKET, lower radiator

1шт.

4

73217C1

FILLING STRIP

GASKET, radiator baffle top and side, 32.7 in., bulk length 4 ft

2шт.

5

532029R1

CAP ASSY.

CAP ASSY, radiator

1шт.

5

1500626C91

PLUG

CAP AND COVER ASSY, radiator

1шт.

6

527474R2

HOUSING

SHROUD, fan, Serial Range: -8168

1шт.

6

527475R2

HOUSING

SHROUD, fan, Start Serial: 8169

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

4шт.

7

705935R91

HOSE CLAMP

CLAMP, hose, or

2шт.

7

39149H

HOSE CLAMP

CLAMP, hose

2шт.

8

402191R1

HOSE,1.50" ID, 2.00" ID x 8.98", SAE 10R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet 1.50" ID, 2.00" ID x 8.98", SAE 10R2, Serial Range: -8168

1шт.

8

1502065C1

RADIATOR HOSE,1.50" ID, 2.00" ID x 8.98"

1.50" ID, 2.00" mm ID X 8.98", Inlet, Start Serial: 8169

1шт.

706082R91

CLAMP

hose, or

2шт.

9

39205H

CLAMP

hose

2шт.

10

402189R1

LARGE HOSE,1.50" ID, 2.00" ID x 10.39", SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A OR SAE 20R4, CLASS R, GRADE 1A, SAE 20R4 CLASS D1, Outlet 1.50" ID, 2.00" ID x 10.39", SAE 20R2

1шт.

11

73217C1

FILLING STRIP

GASKET, radiator baffle top, bulk length 4 ft

1шт.

12

3121417R1

GASKET

GASKET, radiator baffle side

1шт.

13

3113083R1

PLUG, DRAIN

VALVE, drain

1шт.
