(10-09) - HYDRAULICS, POWER BEYOND, FOR TRACTORS EQUIPPED WITH LOADER

Запчасти Case IH 484 (10-09) - HYDRAULICS, POWER BEYOND, FOR TRACTORS EQUIPPED WITH LOADER (07) - HYDRAULICS

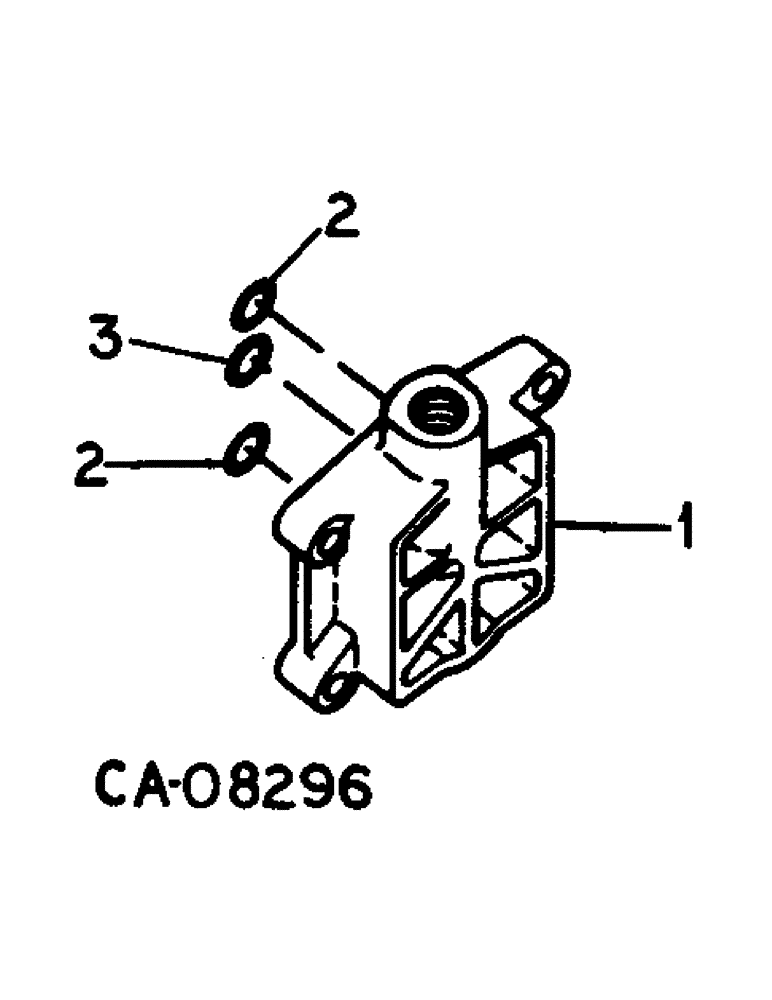

Схема запчастей Case IH 484 - (10-09) - HYDRAULICS, POWER BEYOND, FOR TRACTORS EQUIPPED WITH LOADER (07) - HYDRAULICS
2
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

114566C91

KIT

PARTS ACCESSORY, power beyond cover

1шт.

1

123082C1

COVER

1шт.

2

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 class 6

2шт.

3

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 class 6

1шт.

Выбрано товаров: 4
