Запчасти Case IH 484 (08-10) - ELECTRICAL, FENDER CONDUIT AND SEVEN PIN SOCKET (06) - ELECTRICAL

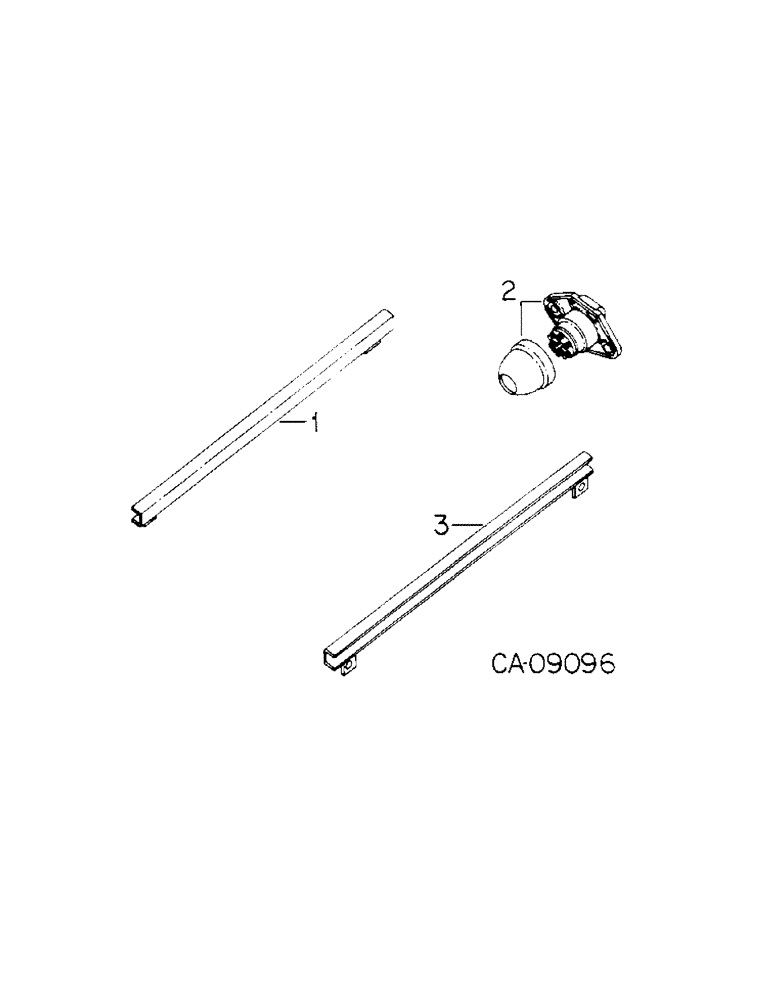

Схема запчастей Case IH 484 - (08-10) - ELECTRICAL, FENDER CONDUIT AND SEVEN PIN SOCKET (06) - ELECTRICAL
1
2
3

Артикул

Название

Примечание

Количество

1

3123182R2

CABLE SHEATH

CONDUIT ASSY, fender RH

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

2шт.

2

84117C1

SOCKET/RECEPTACLE

SOCKET, 7 pin w/boot

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

19296R1

NUT,5/16"-18, G5

5/16 cad type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

3123179R1

CABLE SHEATH

CONDUIT ASSY, fender LH

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

2шт.

Выбрано товаров: 9
