Запчасти Case IH 484 (08-07) - ELECTRICAL, CRANKING MOTOR, LUCAS - 537140R95 (06) - ELECTRICAL

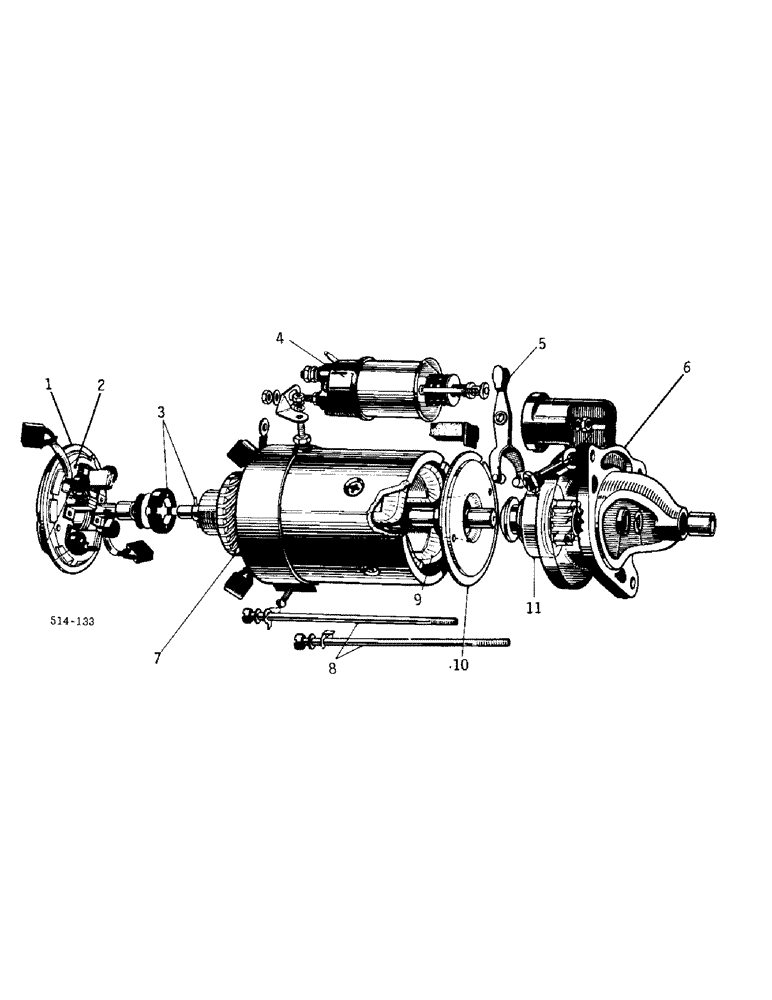

Схема запчастей Case IH 484 - (08-07) - ELECTRICAL, CRANKING MOTOR, LUCAS - 537140R95 (06) - ELECTRICAL
6
3
9
2
5
11
1
4
7
10
8

Артикул

Название

Примечание

Количество

537140R95

STARTER MOTOR

Lucas model M127/28, Lucas no. 27508B, replaces 537140R94 M50/26336 H/K, replaces 3125850R91 M50/26428A

1шт.

1

3206511R91

BRACKET

KIT, bracket assy

1шт.

2

3113026R91

PLATE ASSY.

PLATE ASSY, brush mounting

1шт.

3118371R91

BRUSH, COMMUTATOR

KIT, brushes

1шт.

3206523R91

SPRING KIT

KIT, brush springs

1шт.

3

3206531R91

BRAKE PACKAGE

KIT, brakes

1шт.

4

(Not used)

1шт.

6

84061C1

KIT

LINK ASSY, solenoid, replaces 3206517R91

1шт.

6

3129494R91

BRACKET

ASSY, drive end for Lucas starter 26336 H/K

1шт.

7

84059C1

ARMATURE

ASSY, replaces 3113038R91

1шт.

8

(Not used)

1шт.

9

84058C1

KIT

field coils, replaces 3206527R91

1шт.

10

3119902R91

SUPPORT

BRACKET ASSY, intermediate

1шт.

11

84209C1

DRIVE ASSY.

DRIVE ASSY, replaces 3113033R91

1шт.

3113029R91

BUSHING

KIT, bushing

1шт.

3206528R91

SEAL KIT

KIT, sealing

1шт.

3206529R91

KIT

sundry parts

1шт.

84060C1

SOLENOID SWITCH

SWITCH ASSY, solenoid, replaces 3124479R93

1шт.

If dlr needs new part for 84060C1 - order 141138A2

1шт.

1273635C1

COVER, solenoid

1шт.

78986C1

PACKAGE

KIT, retention

1шт.

Выбрано товаров: 21
