Заказать запчасти

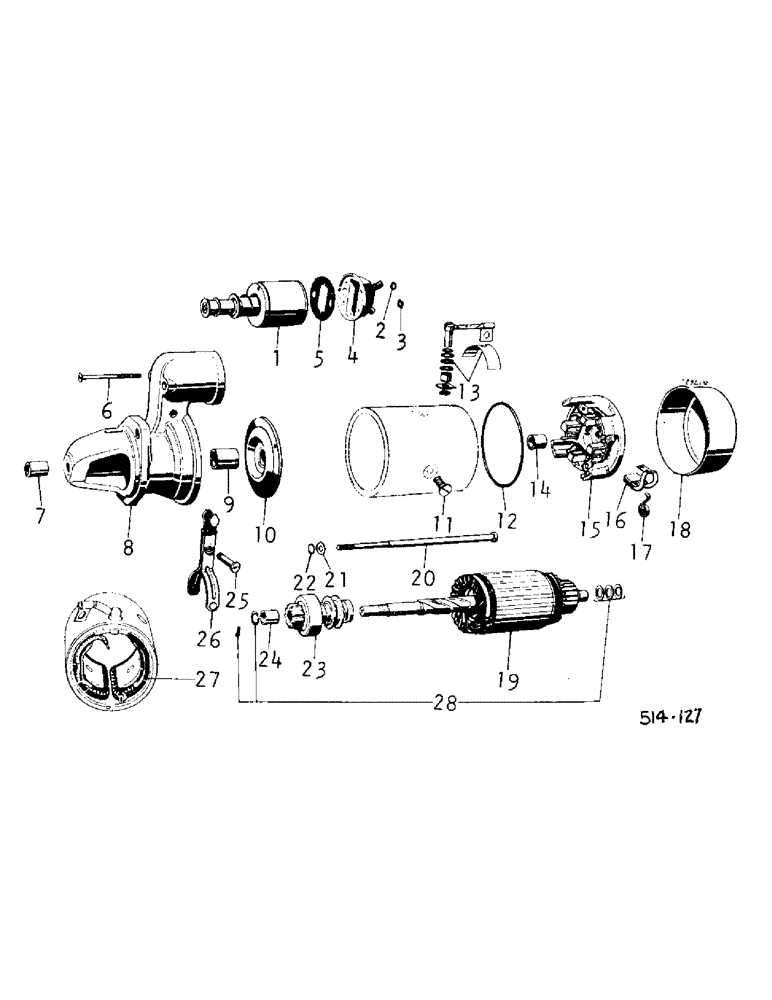

Запчасти Case IH 484 (08-06) - ELECTRICAL, CRANKING MOTOR, BOSCH (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
529965R93
STARTING MOTOR
STARTER MOTOR, Bosch 4PS, Bosch no. 00-001-362-310, replaces 00-001-359-045-R91 and 00-001-367-042-R92
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 pln type 5
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
537143R1
TERMINAL CONNECTOR,Male
TERMINAL, Male
1шт.
1
3113013R91
RELAY
SWITCH, solenoid
1шт.
Used with 529965R91.
1шт.
If dlr has bosch starter w/vendor no. 00001359069 it is the same as 00-001-367-042 which is theR92 starter suffix. order components marked note B.
1шт.
1
3078963R1
SOLENOID SWITCH
SWITCH, solenoid
1шт.
Used with 529965R92 and R93.
1шт.
2
WASHER, relay cover
2шт.
3
3132763R1
TERMINAL CONNECTOR
PLATE, relay cover
4шт.
4
COVER, relay
1шт.
931342R1
SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8
relay cover
1шт.
934075R1
LOCK WASHER,M10
Relay cover M10
2шт.
5
RING, packing relay cover
1шт.
6
931100R1
SCREW,M6 x 50mm, Cl 4.8
switch
2шт.
Used with 529965R91.
1шт.
6
3078974R1
SCREW
switch
3шт.
Used with 529965R92 and R93.
1шт.
7
3113008R1
BUSHING
bearing
1шт.
Used with 529965R91.
1шт.
7
3055738R1
BUSHING
bearing
1шт.
Used with 529965R92 and R93.
1шт.
8
3113007R91
DRIVE ASSY.
DRIVE ASSY, end
1шт.
Used with 529965R91.
1шт.
8
3129633R1
HOUSING
DRIVE ASSY, end
1шт.
Used with 529965R92 and R93.
1шт.
9
3132441R1
BUSHING
bearing
1шт.
Used with 529965R91.
1шт.
9
3078967R1
BUSHING
bearing
1шт.
Used with 529965R92 and R93.
1шт.
10
3132440R1
SUPPORT
BEARING, intermediate
1шт.
Used with 529965R91.
1шт.
10
3079253R1
BALL BEARING
intermediate
1шт.
Used with 529965R92 and R93.
1шт.
11
3078334R1
SCREW
retainer
4шт.
Used with 529965R91.
1шт.
11
3129639R1
SCREW
retainer
4шт.
Used with 529965R92 and R93.
1шт.
12
3132450R1
O-RING
RING, packing commutator end
1шт.
Used with 529965R91.
1шт.
13
3132464R91
TERMINAL CONNECTOR
SET, terminal parts
1шт.
Used with 529965R91.
1шт.
13
3079173R91
KIT
SET, terminal parts
1шт.
Used with 529965R92 and R93.
1шт.
14
3132446R1
BUSHING
commutator end
1шт.
Used with 529965R91.
1шт.
14
3079170R1
BUSHING
commutator end
1шт.
Used with 529965R92 and R93.
1шт.
15
3113011R91
FRAME ASSY
commutator end
1шт.
Used with 529965R91.
1шт.
15
3129632R91
END ASSY.
FRAME ASSY, commutator end
1шт.
Used with 529965R92 and R93.
1шт.
16
3078754R91
COMMUTATOR BRUSH
SET, brush
1шт.
Used with 529965R91.
1шт.
16
3079359R1
KIT
SET, brush
1шт.
Used with 529965R92 and R93.
1шт.
3079174R1
HOLDER
brush
1шт.
17
3132448R1
VALVE SPRING
SPRING, brush
2шт.
Used with 529965R91.
1шт.
17
3079420R1
SPRING
brush
4шт.
Used with 529965R92 and R93.
1шт.
18
3132449R1
COVER
end
1шт.
Used with 529965R91.
1шт.
18
3079177R1
CAP
COVER, end
1шт.
Used with 529965R92 and R93.
1шт.
3079426R1
SCREW
2шт.
19
3132444R1
X
ARMATURE
1шт.
Used with 529965R91.
1шт.
19
3079252R1
ARMATURE
1шт.
Used with 529965R92 and R93.
1шт.
20
3132759R1
BOLT
PIN, threaded housing
2шт.
Used with 529965R91.
1шт.
933987R1
LOCK WASHER,M6
WASHER, lock
2шт.
20
3079172R1
STUD
thru
2шт.
Used with 529965R92 and R93.
1шт.
3079176R1
WASHER
2шт.
86500688
NUT,Hex, M6 x 1.0, Cl 10.9
2шт.
21
3113009R1
WASHER
1шт.
Used with 529965R91.
1шт.
22
3132760R1
BUSHING
RING, packing
1шт.
Used with 529965R91.
1шт.
23
3078980R91
DRIVE
ASSY
1шт.
Used with 529965R91.
1шт.
23
3129631R1
DRIVE ASSY.
DRIVE ASSY
1шт.
Used with 529965R92 and R93.
1шт.
24
3132443R1
BUSHING
1шт.
Used with 529965R91.
1шт.
24
3079254R1
BUSHING
1шт.
Used with 529965R92 and R93.
1шт.
25
3132758R1
SCREW
lever
1шт.
Used with 529965R91.
1шт.
25
3079251R1
BOLT
lever
1шт.
Used with 529965R92 and R93.
1шт.
26
3132432R1
LEVER
engaging
1шт.
Used with 529965R91.
1шт.
26
3078965R1
LEVER
engaging
1шт.
Used with 529965R92 and R93.
1шт.
933983R1
LOCK WASHER,M6
WASHER, lock
1шт.
27
3078072R91
KIT
COIL, field
1шт.
Used with 529965R91.
1шт.
27
3079356R1
COIL
field
1шт.
Used with 529965R92 and R93.
1шт.
28
3132465R91
PACKAGE
SET, armature parts
1шт.
Used with 529965R91.
1шт.
1273635C1
COVER, solenoid
1шт.
Выбрано товаров: 108
