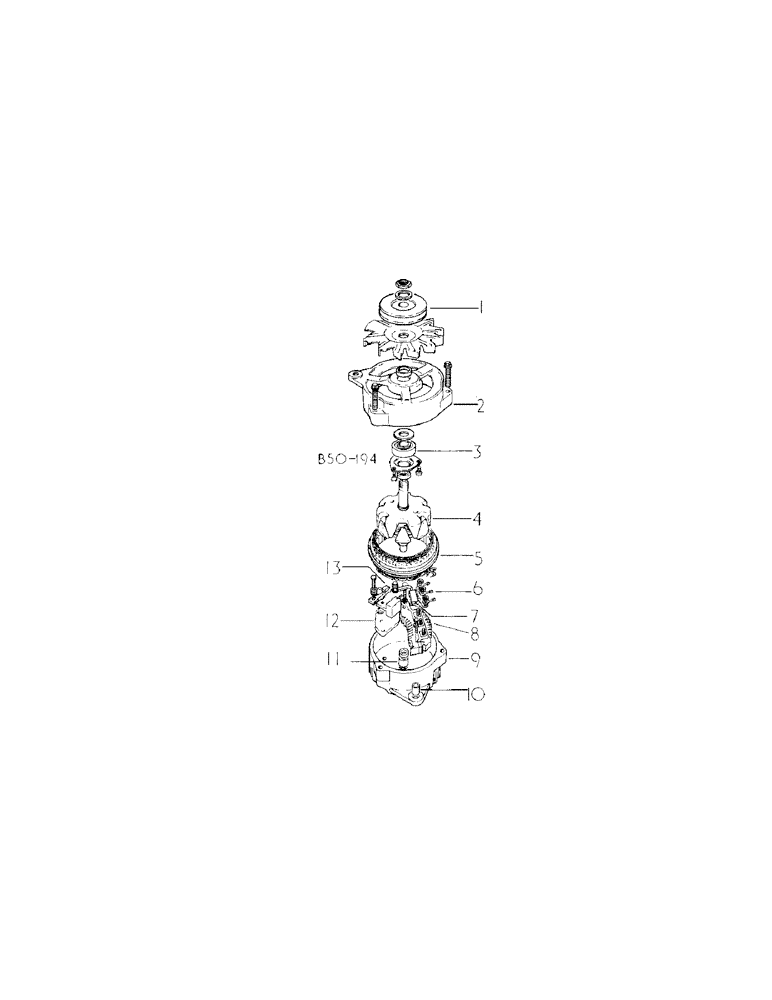

Запчасти Case IH 484 (08-05) - ELECTRICAL, ALTERNATOR, AC DELCO (06) - ELECTRICAL

3129075R91

ALTERNATOR

1шт.

1

3129077R1

PULLEY

1шт.

2

3129060R1

FRAME

drive end

1шт.

3

3129061R1

BEARING

drive end

1шт.

4

3129062R1

ROTOR ASSY.

ROTOR ASSY

1шт.

5

3129063R1

STATOR

ASSY

1шт.

6

3129069R1

TERMINAL CONNECTOR

TERMINAL, positive

1шт.

3129070R1

BLOCK

terminal

1шт.

3129071R1

CLIP

socket

1шт.

7

3129064R1

RECTIFIER

ASSY, diode

1шт.

8

3129065R1

SUPPORT ASSY.

SUPPORT ASSY, rectifier & insulator

1шт.

9

3129072R1

FRAME ASSY

W/BUSHING

1шт.

10

3129073R1

BUSHING

1шт.

11

3129074R1

BEARING

ROLLER

1шт.

12

3129068R1

REGULATOR

ASSY

1шт.

13

3129066R1

BRUSH ASSY.

BRUSH AND TERMINAL ASSY

1шт.

3129067R1

SPRING

brush

1шт.
