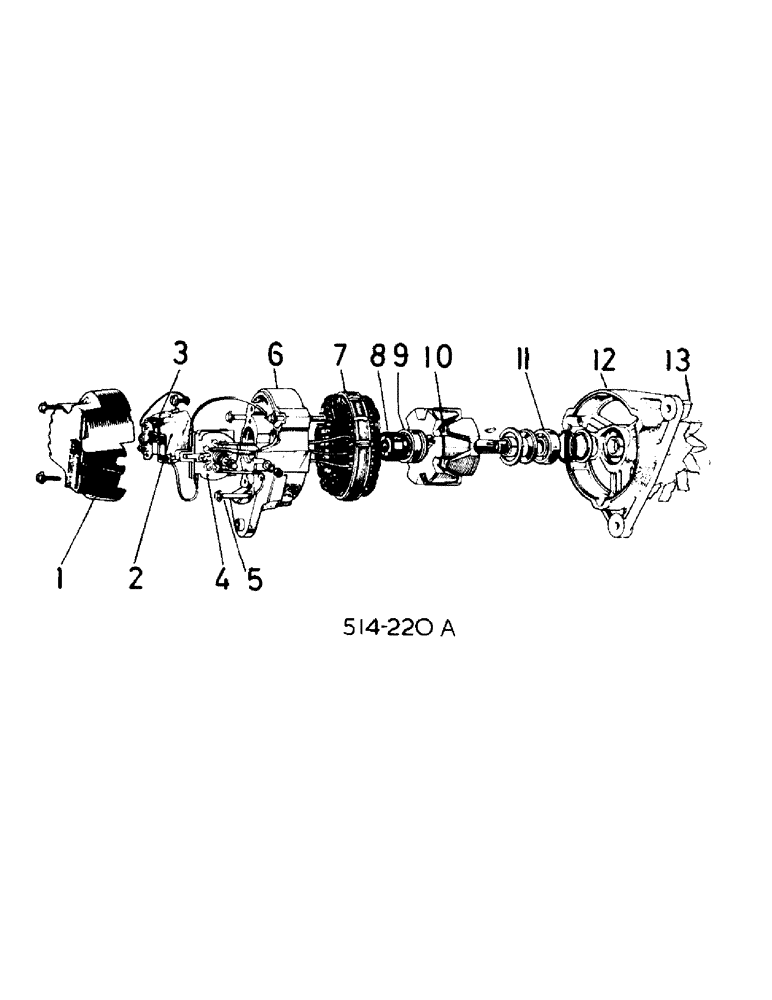

Запчасти Case IH 484 (08-02) - ELECTRICAL, ALTERNATOR, LUCAS 15 ACR, 17 ACR AND 18 ACR (06) - ELECTRICAL

ALTERNATOR, Lucas 15 ACR

1шт.

ALTERNATOR, Lucas 17 ACR, replaced by 84082C91

1шт.

ALTERNATOR, Lucas 18 ACR, less fan, Lucas no. 23765, replaced by 245531C91

1шт.

1

3116086R1

COVER

1шт.

2

3116094R91

BRUSH HOLDER

AND BRUSH ASSY, includes

1шт.

3116099R91

BRUSH SET

KIT, brush

1шт.

3

3116087R3

REGULATOR

1шт.

4

3116088R1

RECTIFIER

17 & 18 ACR alternator

1шт.

5

3116095R1

BOLT

fixing

3шт.

6

3116092R1

BRACKET

stator-regulator end

1шт.

7

3116093R1

STATOR

15 ACR alternator

1шт.

7

3125134R1

STATOR

17 & 18 ACR alternator

1шт.

8

3116097R1

RING

slip

1шт.

9

3116098R1

KIT

BEARING KIT, stator-regulator end

1шт.

10

3125130R91

ROTOR ASSY.

ROTOR ASSY, 15 ACR alternator

1шт.

10

3125133R91

ROTOR ASSY.

ROTOR ASSY, 17 & 18 ACR alternator, w/ring 3116097R1 and bearing 3116098R91

1шт.

11

3116096R91

BEARING ASSY

KIT, drive end

1шт.

12

3116089R91

BRACKET

ASSY, drive end

1шт.

13

3117067R1

FAN

alternator, 15 & 17 ACR alternator

1шт.

13

1502055C1

FAN

alternator, 18 ACR alternator, not included w/18 ACR alternator

1шт.

3116090R91

KIT

parts sundry

1шт.

3123891R1

RECTIFIER

surge protection

1шт.

3118367R1

RECTIFIER

15 & 17 ACR alternator

1шт.

3125297R1

CAPACITOR

18 ACR alternator

3шт.

84083C1

CAPACITOR

17 ACR alternator

3шт.

1500541C91

ALTERNATOR

(Motorola)

1шт.
