Запчасти Case IH 484 (08-01) - ELECTRICAL, ALTERNATOR AND CONNECTIONS, TRACTORS WITHOUT CAB (06) - ELECTRICAL

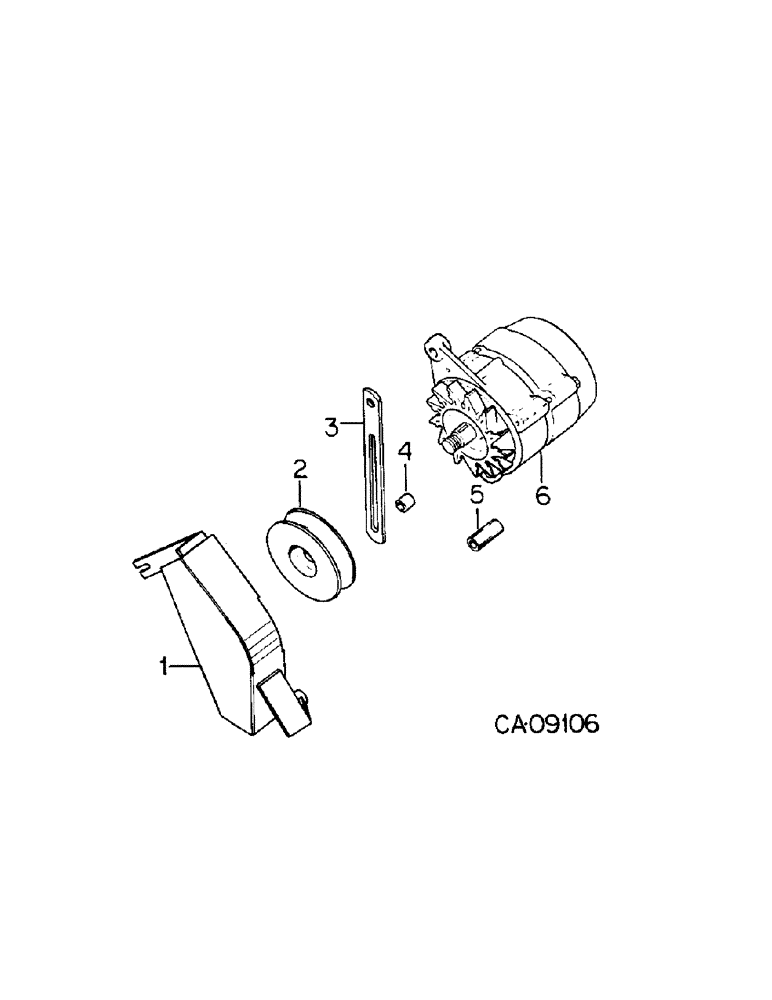

Схема запчастей Case IH 484 - (08-01) - ELECTRICAL, ALTERNATOR AND CONNECTIONS, TRACTORS WITHOUT CAB (06) - ELECTRICAL
1
2
6
4
3
5

Артикул

Название

Примечание

Количество

1

3129852R5

SHIELD

alternator

1шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

5/16 x 4-34 pln class 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

2

3113672R1

PULLEY

alternator, Lucas 15, 17 & 18 ACR alternators

1шт.

2

245534C1

PULLEY

SET, alternator, Lucas A115-45 alternator includes washer

1шт.

2

3129077R1

PULLEY

alternator, AC Delco alternator

1шт.

3

3113336R1

BRACE

alternator, Lucas alternator

1шт.

3

3129076R1

CLIP

BRACE, alternator, AC Delco alternator

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

4

190123C1

SPACER,1/2" Tube x 1"

1/2 x 1.000 tube

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

5/16 x 4-1/4 pln type 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

3113678R1

SPACER

alternator mounting, use with 3129 3129852R4 shield

1шт.

6

ALTERNATOR, Lucas 15 ACR

1шт.

6

ALTERNATOR, Lucas 17 ACR, replaces by 84082C91

1шт.

6

ALTERNATOR, Lucas 18 ACR less fan, Lucas no. 23765, replaced by alternator 245531C91

1шт.

6

245531C91

ALTERNATOR

Lucas A115-45, w/fan & pulley, Lucas no. 54206079, replaces 245538C91 less fan & pulley, replaces 3129851R91

1шт.

6

3129075R91

ALTERNATOR

AC Delco

1шт.

6

84082C91

GENERATOR

ALTERNATOR, Lucas A115-36, less fan Lucas no. 24061, replaces 3125132R92, for components, see list of parts under details of alternator

1шт.

Выбрано товаров: 23
