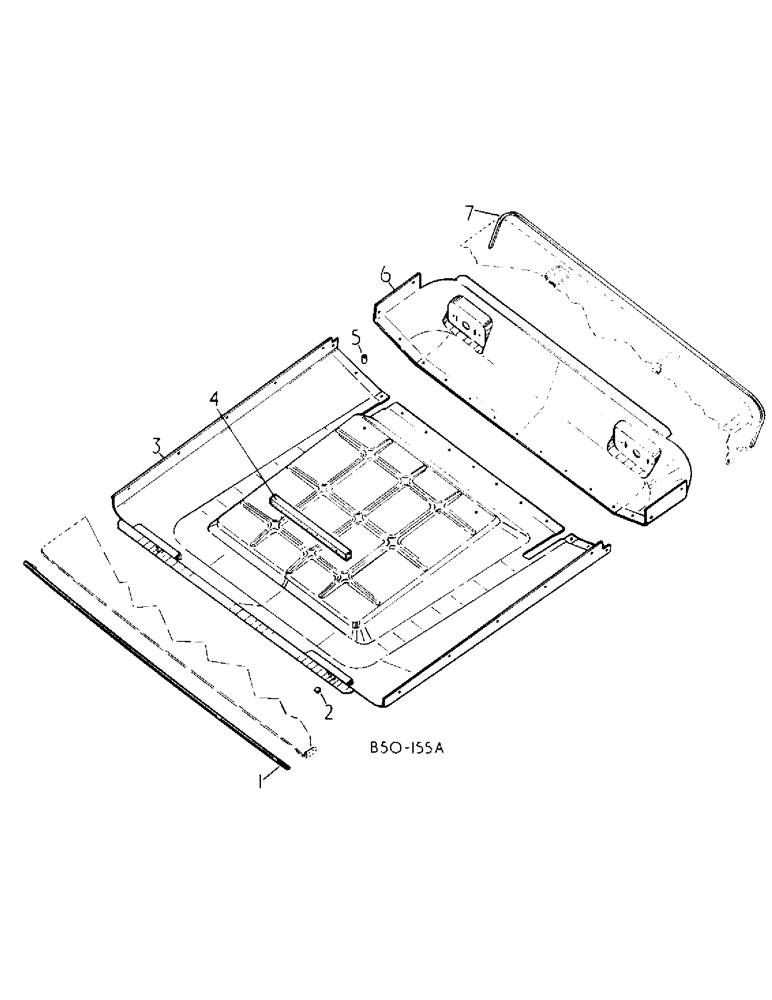

Запчасти Case IH 484 (13-19) - SUPERSTRUCTURE, CANOPY HEADLINER TRIM PACKAGE (05) - SUPERSTRUCTURE

1

118483C1

STRIP, METERS

STRIP, roof trim

1шт.

2

118515C1

CLIP

u-type speed, when used

18шт.

3

118381C1

PANEL

HEADLINER, front

1шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 P/HDCR tap

10шт.

684322R1

SPRING NUT

u-type spring

10шт.

120391

WASHER,#10

.219 x .500 x .036

10шт.

4

73213C1

FILLING STRIP

STRIP, vibration dampener foam 15 in., bulk length 4 ft

1шт.

5

12302N

SPACER,1/4" Pipe x 15/16"

.38 std pipe

2шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

NLS

NO LONGER SERVICED

.312 x .734 x .051

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

6

118359C1

PANEL

HEADLINER, rear

1шт.

24396R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 P/HDCR tap

15шт.

120391

WASHER,#10

.219 x .500 x .036

15шт.

684322R1

SPRING NUT

u-type spring

15шт.

7

118483C1

STRIP, METERS

STRIP, roof trim, bulk length, when used

1шт.

118388C1

STRIP

ROPS bar trim, bulk length

1шт.
