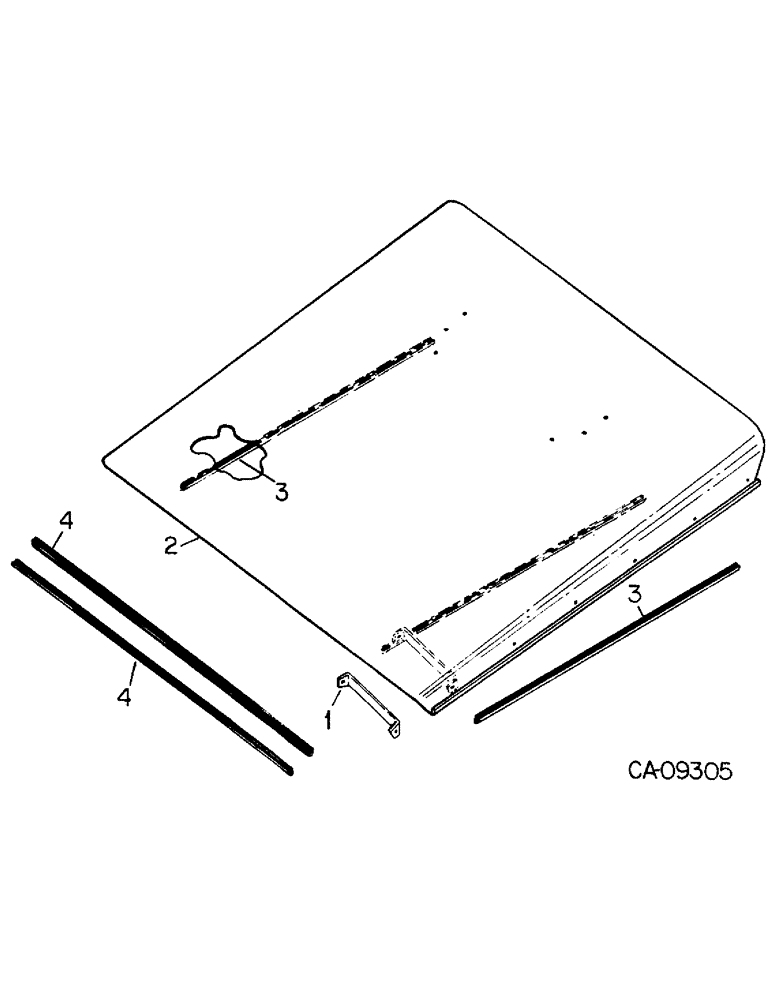

Запчасти Case IH 484 (13-18) - SUPERSTRUCTURE, PROTECTIVE FRAME CANOPY (05) - SUPERSTRUCTURE

1

118531C2

BRACKET

stabilizer

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

2

118375C3

TOP

ROOF ASSY, canopy, or

1шт.

2

1281633C1

ROOF

ASSY, canopy

1шт.

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT, 1/2 x 1-3/4 crg type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

118524C2

SEALING STRIP

STRIP, roof trim, 35 in. long, bulk length 70 inches

1шт.

4

STRIP, trim, cut 31 inches from 50 ft bulk roll marked 1327666C1

2шт.

1280164C1

SHIM

use w/118375C2 roof

6шт.

3123992R1

PLUG

7mm canopy blanking, when headliner trim not fitted

2шт.
