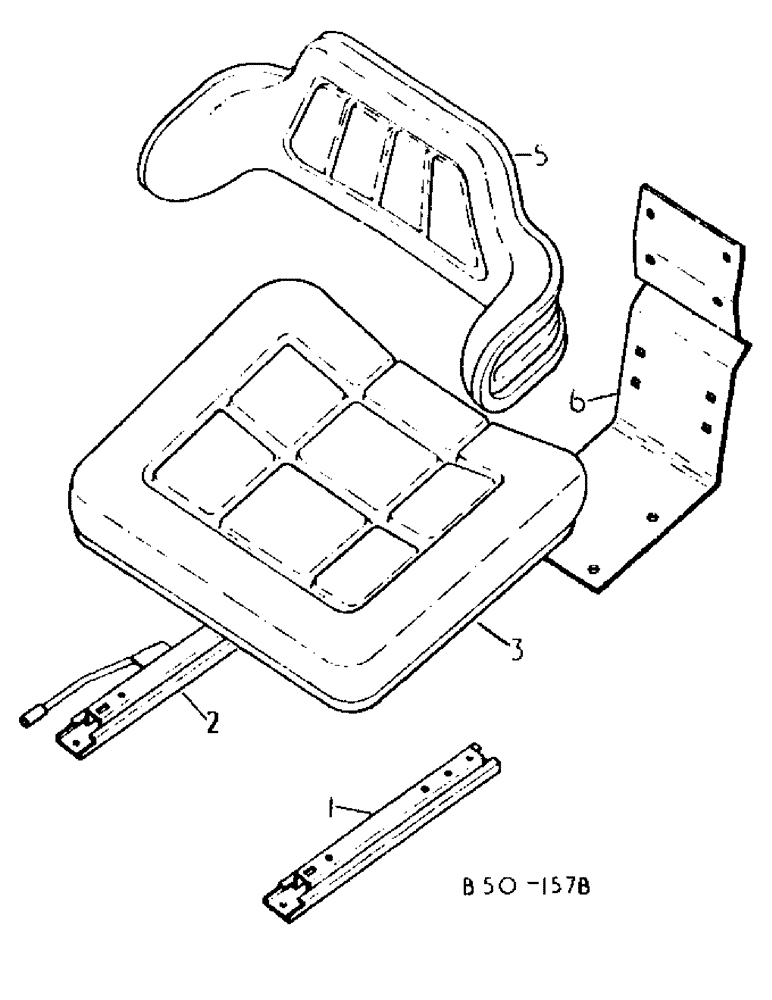

Запчасти Case IH 484 (13-12) - SUPERSTRUCTURE, SEAT, W/ BEFORE & AFTER & HEIGHT ADJUSTMENT, GRAMMER, SEAT & SLIDES (05) - SUPERSTRUCTURE

3121423R92

SEAT

ASSY, suspension, PVC

1шт.

3123562R1

SPACER

seat

4шт.

3123563R1

SCREW

5/16-18 x 1-1/2

4шт.

3123564R1

LOCK WASHER

WASHER, 5/16 lock

4шт.

1

3224898R1

SLIDE GUIDE

RAIL, adjustable

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

M8 x 15

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

Front Serr, M8.2

1шт.

934676R1

LOCK WASHER,M8

WASHER, rear, rail to plate

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

M8 x 20

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

934674R1

WASHER,M10.5 x 30 x 2.5

2шт.

905424R1

WASHER,M10.5 x 25 x4

rail to seat

2шт.

2

3224897R1

RAIL

adjustable w/handle

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

M8 x 15

1шт.

934675R1

WASHER,M8 x 16 x 1.6

Rear, Rail to plate M8 x 16 x 1.6

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

M8 x 20

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

934674R1

WASHER,M10.5 x 30 x 2.5

2шт.

905424R1

WASHER,M10.5 x 25 x4

rail to seat

2шт.

3

3125773R1

CUSHION, SEAT

PVC, used w/seat assy 3121423R91

1шт.

3

3125997R1

CUSHION, SEAT

PVC, used w/seat assy 3121426R92, having grammer no. 113182

1шт.

3129992R1

WASHER

NUT

4шт.

4

(Not used this application)

1шт.

5

3125775R1

BACKREST

CUSHION, back, PVC, used w/seat assy 3121423R91

1шт.

5

3125996R1

BACKREST

CUSHION, back, PVC, used w/seat assy 3121423R92, having grammer no. 113182

1шт.

6

3125777R1

FRAME

seat, used w/seat assy. 3121423R91

1шт.

6

3125995R1

FRAME

seat, used w/seat assy 3121423R92, having grammer no. 113182

1шт.
