Запчасти Case IH 484 (13-05) - SUPERSTRUCTURE, REAR FENDERS, LOW CROWN (05) - SUPERSTRUCTURE

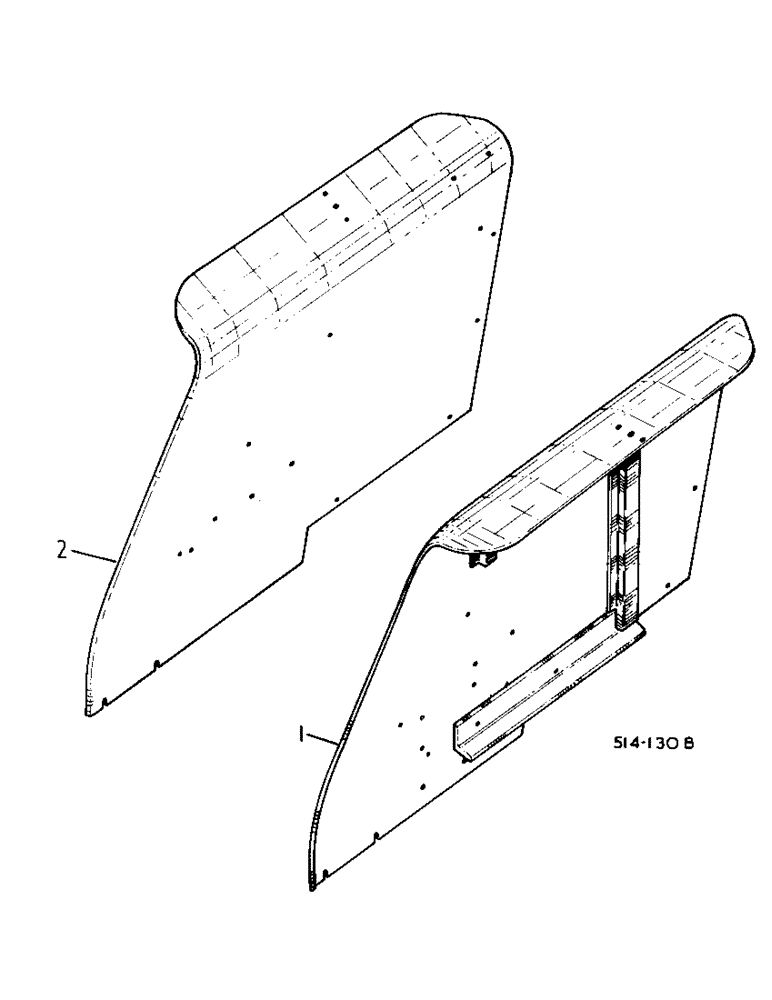

Схема запчастей Case IH 484 - (13-05) - SUPERSTRUCTURE, REAR FENDERS, LOW CROWN (05) - SUPERSTRUCTURE
1
2

Артикул

Название

Примечание

Количество

1

538639R3

FENDER ASSY.

FENDER, w/product-graphic, LH

1шт.

2

530002R5

FENDER ASSY.

FENDER ASSY, RH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , To rear top cover 5/16"

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

To transmission shift control housing or draft control housing 5/16"-18, G5

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex hd cap

4шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, , To axle carrier 1/2"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , To parking brake bracket 3/8"

3шт.

3113657R1

PLUG

side and tail light blanking

4шт.

3113430R1

PLUG

side and tail light blanking

2шт.

531625R1

GROMMET

2шт.

3113430R1

PLUG

blanking fender LH

3шт.

3112888R1

PLUG

blanking fender RH

1шт.

3125820R1

SLEEVE

PVC, for use w/LH & RH fender assys

3шт.

Выбрано товаров: 18
