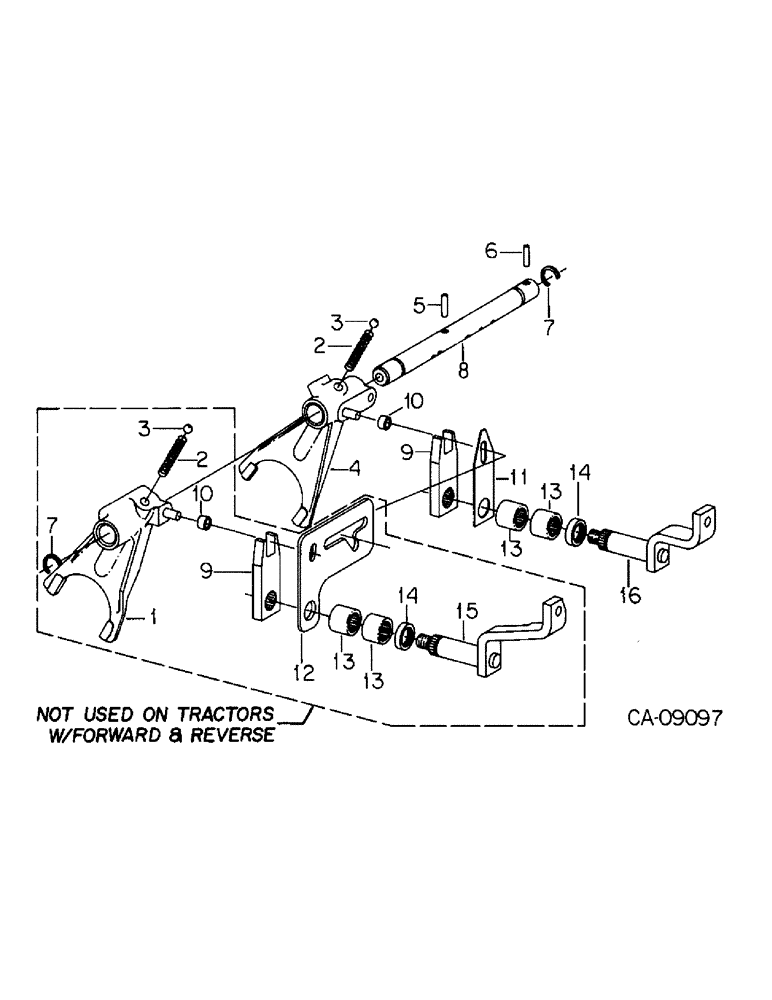

Запчасти Case IH 484 (07-28) - DRIVE TRAIN, GEAR SHIFT MECHANISM, RANGE TRANSMISSION, H PATTERN SHIFT, TRACTORS W/S/N 10139 & ABOVE (04) - Drive Train

1

1286428C1

FORK

front

1шт.

Tractors w/o forward and reverse.

1шт.

2

103062C1

SPRING

poppet ball

2шт.

3

17013R1

BALL,13/32" Dia

2шт.

4

1286416C1

FORK

rear

1шт.

Tractors w/o forward and reverse.

1шт.

4

86311C1

FORK

rear

1шт.

Tractors with forward and reverse.

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

Tractors w/o forward and reverse.

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

148501C1

RING, SNAP

RING, retaining

2шт.

8

1286415C1

RAIL

range shift fork

1шт.

Tractors w/o forward and reverse.

1шт.

8

86304C1

RAIL

range shift fork

1шт.

Tractors with forward and reverse.

1шт.

9

1286421C1

ARM

. range shift inner

2шт.

10

1286423C1

BUSHING

range shift pin

2шт.

11

1286444C2

STRIP

PLATE, retainer

1шт.

Tractors w/o forward and reverse.

1шт.

11

86310C1

PLATE

retainer

1шт.

Tractors with forward and reverse.

1шт.

12

1286419C1

PLATE, LOCKING

PLATE, interlock range

1шт.

Tractors w/o forward and reverse.

1шт.

13

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

4шт.

14

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

oil

2шт.

15

1289946C1

ARM

ASSY, range shift outer front

1шт.

Tractors w/o forward and reverse.

1шт.

21018R1

WASHER

.781 x 1.500 x .027 pln

1шт.

16066R1

WASHER

.781 x 1.500 x .054 pln (or as required)

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln p/t lock type 5

1шт.

16

1289948C1

ARM

ASSY, range shift outer rear

1шт.

21018R1

WASHER

.781 x 1.500 x .027 pln

1шт.

16066R1

WASHER

.781 x 1.500 x .054 pln (or as required)

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln p/t lock type 5

1шт.
