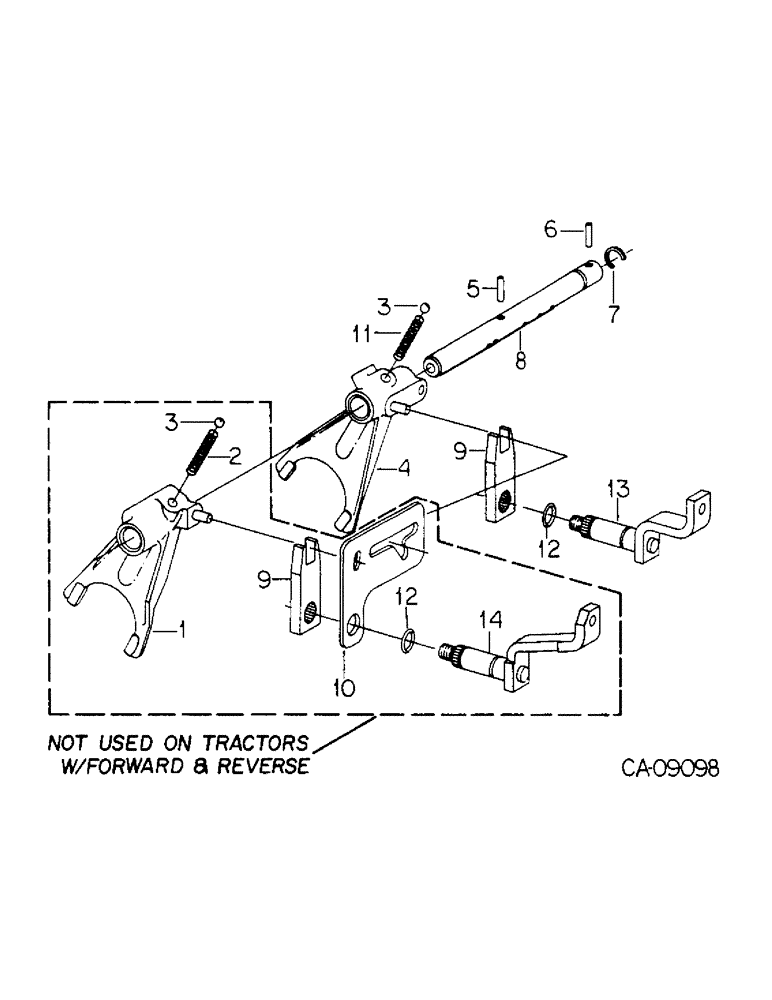

Запчасти Case IH 484 (07-27) - DRIVE TRAIN, GEAR SHIFT MECHANISM, RANGE TRANSMISSION, H PATTERN SHIFT, TRACTORS W/S/N 10138 & BELOW (04) - Drive Train

1

538911R4

FORK

front

1шт.

See T.S. Bulletin 5003 for replacement parts.

1шт.

Tractors w/o forward and reverse.

1шт.

2

103062C1

SPRING

poppet ball, front fork

1шт.

3

17013R1

BALL,13/32" Dia

2шт.

4

538912R4

FORK

rear

1шт.

Tractors w/o forward and reverse.

1шт.

4

538913R4

FORK

rear

1шт.

See T.S. Bulletin 5003 for replacement parts.

1шт.

Tractors with forward and reverse.

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

Tractors w/o forward and reverse.

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

1шт.

8

537473R3

RAIL

range shift fork

1шт.

Tractors w/o forward and reverse.

1шт.

8

402150R1

RAIL

range shift fork

1шт.

Tractors with forward and reverse.

1шт.

9

405169R2

ARM

range shift inner

2шт.

See T.S. Bulletin 5003 for replacement parts.

1шт.

10

1286419C1

PLATE, LOCKING

PLATE, interlock range, replaces 1265223C1

1шт.

Tractors w/o forward and reverse.

1шт.

11

534053R1

SPRING

poppet ball, rear fork

1шт.

See T.S. Bulletin 5003 for replacement parts.

1шт.

12

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 class 6

2шт.

13

405167R3

ARM

ASSY, range shift outer rear

1шт.

Q3501

WASHER

.781 x 1.250 x .054 pln

2шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln p/t lock type 5

1шт.

See T.S. Bulletin 5003 for replacement parts.

1шт.

14

405164R4

ARM

ASSY, range shift outer front

1шт.

Tractors w/o forward and reverse.

1шт.

Q3501

WASHER

.781 x 1.250 x .054 pln

2шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln p/t lock type 5

1шт.

1288283C1

PACKAGE,SERVICE

PACKAGE, internal range shift service tractors w/serial no. 10138 and below, consists of

1шт.

Tractors w/o forward and reverse.

1шт.

1286428C1

FORK

ASSY, front

1шт.

1286416C1

FORK

ASSY, rear

1шт.

1286415C1

RAIL

range shift

1шт.

148501C1

RING, SNAP

RING, retaining

2шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

103062C1

SPRING

2шт.

17013R1

BALL,13/32" Dia

2шт.

1286421C1

ARM

range shift

2шт.

1286423C1

BUSHING

range shift

2шт.

1286419C1

PLATE, LOCKING

PLATE, interlock

1шт.

1286444C2

STRIP

retainer

1шт.

21018R1

WASHER

.781 x 1.500 x .027 pln

10шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 pln P/T lock type 5, instructions (NSS), installing

2шт.

See T.S. Bulletin 5003 for replacement parts.

1шт.
