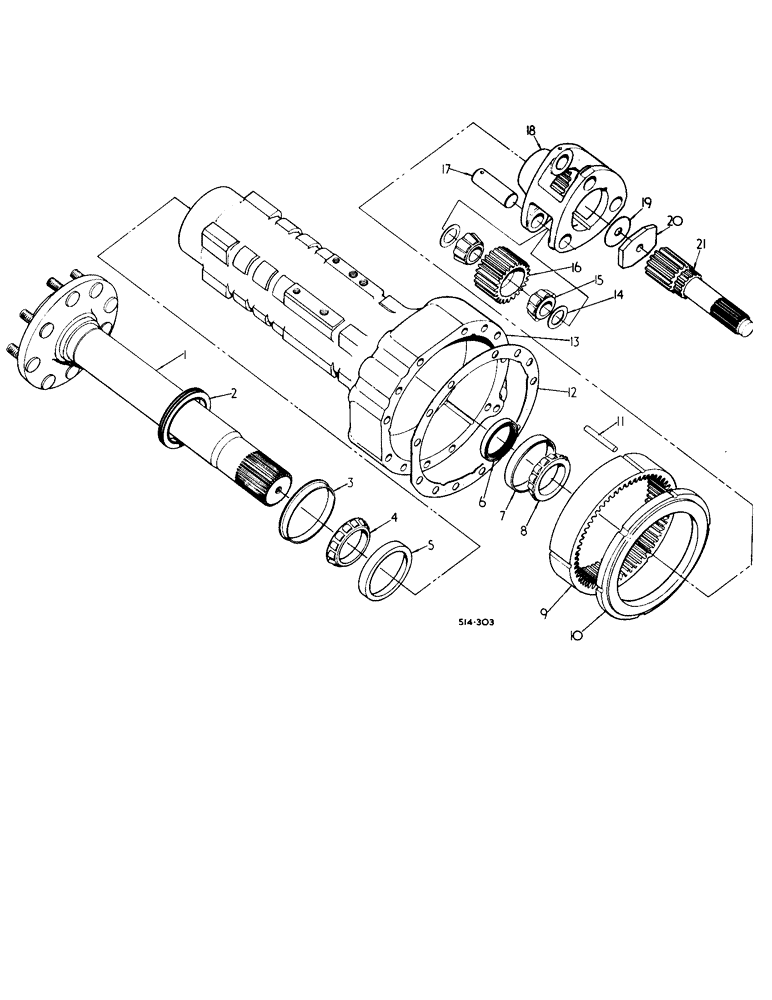

Запчасти Case IH 484 (07-12) - DRIVE TRAIN, REAR AXLE, CARRIER AND CONNECTIONS (04) - Drive Train

1

404340R21

HALF SHAFT

AXLE ASSY, rear

2шт.

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

2

105470C1

OIL SEAL

SEAL, rear axle outer oil

2шт.

3

399754R1

SLEEVE

wear

2шт.

4

ST2001A

BEARING ASSY,2.688" ID x 4.3317" OD x 0.88"

BEARING, rear axle outer cone

2шт.

5

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

rear axle outer cup

2шт.

6

380200R92

OIL SEAL

rear axle inner oil

2шт.

7

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

rear axle inner cup

2шт.

8

ST2194

BEARING, CONE

BEARING, rear axle inner cone

2шт.

9

535316R1

GEAR, RING

66T

2шт.

10

114620C1

RING,260mm OD

brake outer disc

2шт.

11

529685R1

DOWEL

PIN, 3/8 x 2-1/4 dowel

6шт.

12

399762R3

GASKET

rear axle carrier

2шт.

13

3123813R3

CARRIER

rear axle LH

1шт.

13

3123814R2

CARRIER

rear axle RH

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

5/8 x 4 pln type 8

22шт.

14

65420C1

SHIM KIT

PACKAGE, planet gear shim service, consists of (3) shim .042 (NSS) (3) shim .049 (NSS) (3) shim .056 (NSS)

1шт.

15

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, planet gear cone

12шт.

16

399784R2

PINION

GEAR, planet

6шт.

17

399788R1

PIN

planet shaft

6шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

6шт.

18

404339R3

PINION CARRIER

CARRIER, planet gear, on orders for 404339R2, furnish 404339R3 w/3 of 399784R2

2шт.

19

65422C1

SHIM KIT

PACKAGE, rear axle retainer shim

1шт.

20

399748R1

SPACER

planet carrier ret

2шт.

20668R1

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 8

5/8-nf x 1-1/2 pln type 8

2шт.

21

404338R1

SHAFT

planetary drive RH

1шт.

21

404337R1

SHAFT

planetary drive LH

1шт.
