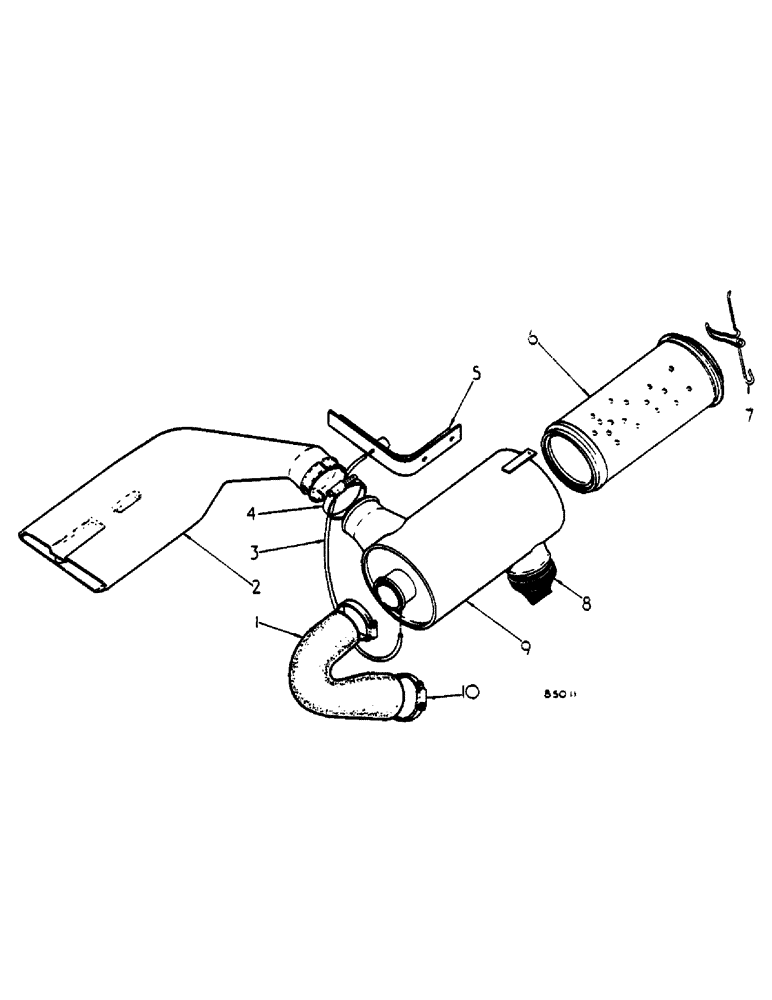

Запчасти Case IH 484 (0C23-2) - AIR CLEANER AND CONNECTIONS, UP TO 484/2300, UP TO 248/540 Power

1

402615R1

INTAKE AIR HOSE,2.50" ID, 2.80" ID

Air Cleaner Outlet

1шт.

2

529864R1

DUCT

AIR INLET

1шт.

3

3123825R2

TUBE

NYLON

1шт.

4

21423R1

CLAMP

3-5/16 HOSE

1шт.

4

539994R1

CLAMP

3-5/16 HOSE - OPTIONAL

1шт.

5

3121418R1

BRACKET

AIR CLEANER MOUNTING

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

3116918R1

CABLE CLIP

1шт.

6

529854R2

AIR FILTER

1шт.

7

3118679R1

RETAINER

AIR CLEANER

1шт.

8

850470C1

BELLOWS

DUST UNLOADER

1шт.

9

3118835R92

AIR CLEANER

NOT SERVICED - INCLUDES ITEMS 6, 7 AND 8

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

10

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

NO 44 HOSE

2шт.
