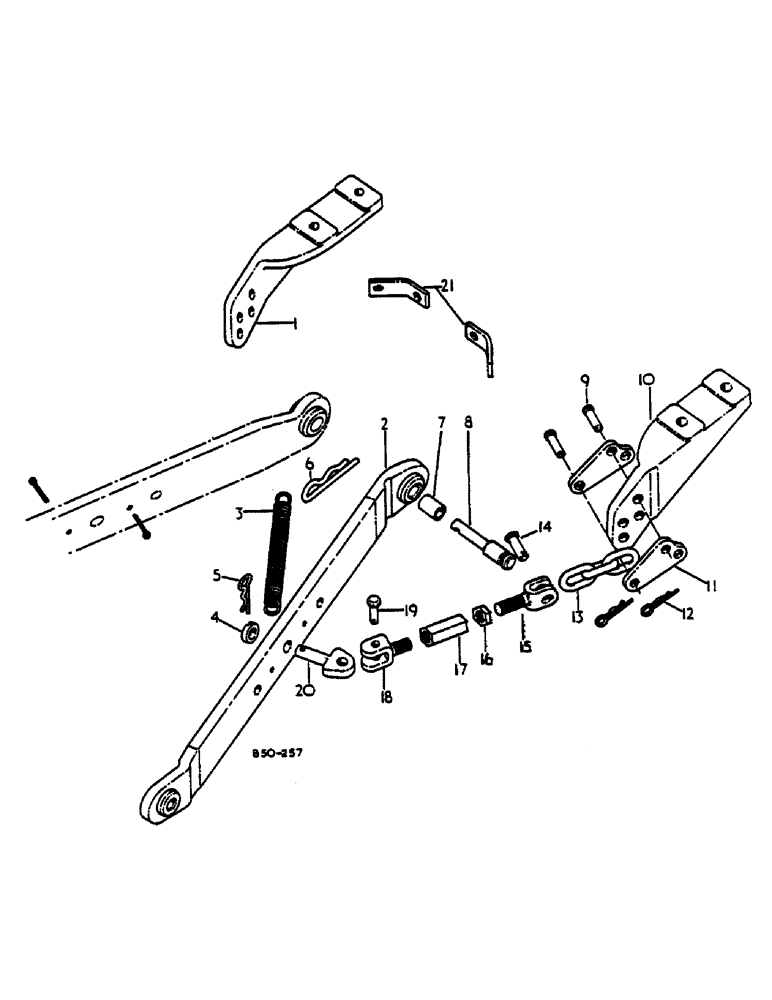

Запчасти Case IH 484 (00J08) - LOWER LINKS - THREE POINT HITCH, W/OUTSIDE CHECK CHAINS, 484/5807 & UP, 248/692 & UP (12) - FRAME

1

529874R1

SUPPORT

CHECK CHAIN LH

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 HEX HD CAP

2шт.

92-11062

LOCK WASHER,5/8"

2шт.

2

124898A1

LOWER LINK

2шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

4шт.

3

1970961C1

SPRING

CHECK CHAIN RESTRAINING

2шт.

4

529894R2

WASHER

ADJ EYE BOLT CHAIN PIN

2шт.

5

529895R2

CLIP

PIN, SPRING

2шт.

6

538406R1

COTTER PIN

PIN, COTTER

2шт.

7

530826R1

BUSHING

LOWER LINK

2шт.

8

530825R1

PIN,31.75mm OD x 119.84mm L

LOWER LINK

2шт.

9

528112R2

PIN,15.77mm OD x 54.61mm L

LIMITER CHAIN

4шт.

10

529875R1

SUPPORT

CHECK CHAIN R H

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 HEX HD CAP

2шт.

92-11062

LOCK WASHER,5/8"

2шт.

11

3129005R1

SUPPORT

STRAP, CHECK CHAIN ADJ

4шт.

12

198121A1

SPRING CLIP

6шт.

13

3129007R1

CHAIN (AG)

LIMITER

2шт.

14

528112R2

PIN,15.77mm OD x 54.61mm L

LIMITER CHAIN

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

PIN, COTTER

2шт.

15

70622C1

CLEVIS,7/8" - 14

LIMITER CHAIN

2шт.

16

7774391

JAM NUT

7/8-14 PLAIN HEX JAM

2шт.

17

3113596R1

NUT

ADJUSTMENT

2шт.

18

3118016R1

CLEVIS,7/8" - 14

LH THREAD

2шт.

19

528112R2

PIN,15.77mm OD x 54.61mm L

LIMITER CHAIN CLEVIS

2шт.

20

3129014R1

EYEBOLT

BOLT, EYE REAR STAB

2шт.

21

3121228R1

BRACKET

SWAY CHAIN

2шт.

7771785

BOLT

5/8-11 X 1 HEX HD CAP

2шт.

1092798R3

DECAL

SWAY CHAINS (NOT ILLUSTRATED)

1шт.
