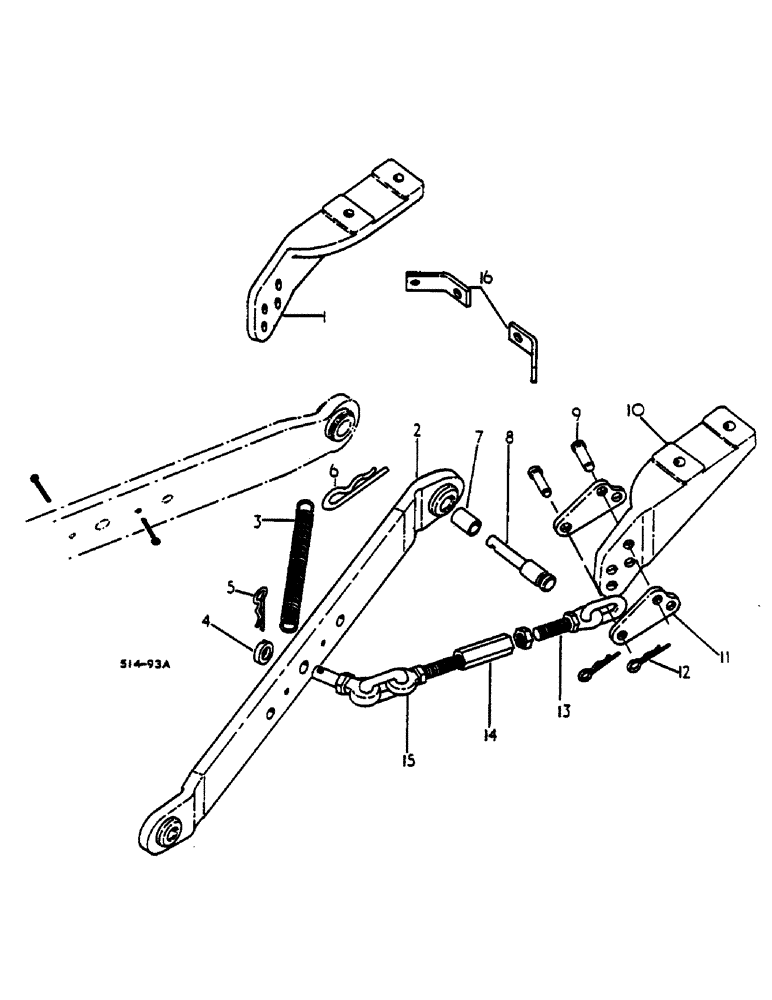

Запчасти Case IH 484 (00J06) - LOWER LINKS - THREE POINT HITCH, W/OUTSIDE CHECK CHAINS, UP TO 484/5806, UP TO 268/691 (12) - FRAME

1

529874R1

SUPPORT

CHECK CHAIN LH

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 HEX HD CAP

2шт.

92-11062

LOCK WASHER,5/8"

2шт.

2

124898A1

LOWER LINK

2шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

4шт.

3

1970961C1

SPRING

CHECK CHAIN RESTRAINING

2шт.

4

529894R2

WASHER

ADJ EYE BOLT CHAIN PIN

2шт.

5

529895R2

CLIP

PIN, ADJ EYE BOLT PIN WASHER SPRING

2шт.

6

538406R1

COTTER PIN

PIN, QUICK ATTACHABLE COTTER

2шт.

7

530826R1

BUSHING

LOWER LINK

2шт.

8

530825R1

PIN,31.75mm OD x 119.84mm L

LOWER LINK

2шт.

9

528112R2

PIN,15.77mm OD x 54.61mm L

LIMITER CHAIN

4шт.

10

529875R1

SUPPORT

CHECK CHAIN RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 HEX HD CAP

2шт.

92-11062

LOCK WASHER,5/8"

2шт.

11

3129005R1

SUPPORT

CHECK CHAIN ADJ

8шт.

12

198121A1

SPRING CLIP

ADJ STRAP COTTER

4шт.

13

529879R2

BOLT,Eye & Chain

EYE AND CHAIN ADJ

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HEX JAM

2шт.

14

529885R1

TURNBUCKLE,3/4" - 10

CHECK CHAIN ADJ EYE BOLT

2шт.

15

529886R2

BOLT

LIFT LINK PIN AND CHAIN

2шт.

16

3121228R1

BRACKET

SWAY CHAIN

1шт.

7771785

BOLT

5/8-11 X 1 HEX HD CAP

2шт.

1092798R3

DECAL

SWAY CHAINS - AGRICULTURAL MACHINES - (NOT ILLUSTRATED)

1шт.

1093303R1

DECAL

SWAY CHAINS - INDUSTRIAL MACHINES - (NOT ILLUSTRATED)

1шт.
