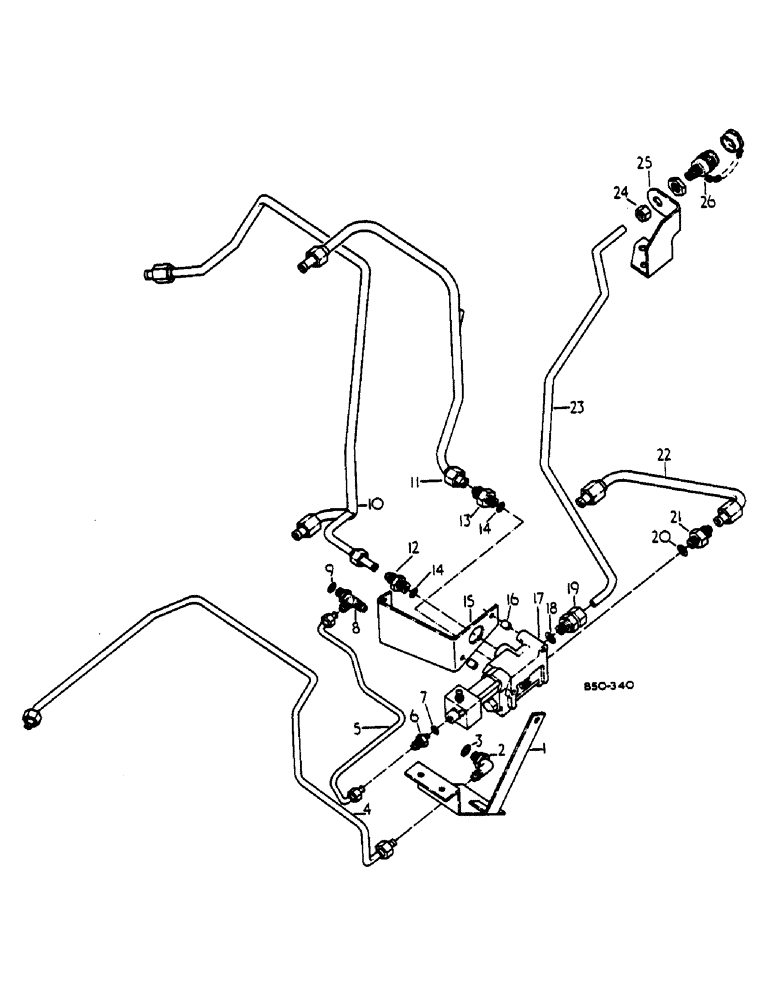

Запчасти Case IH 484 (0C13-2) - HYDRAULIC TRAILER BRAKE - 484 (07) - HYDRAULICS

1

1500676C1

GUARD ASSY.

GUARD ASSY, ROCK

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

80681

LOCK WASHER,5/16"

3шт.

2

530052

HOSE

VALVE ASSY, ELBOW PS CHECK

1шт.

530056R1

WASHER

1шт.

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

3

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

1500682R1

TUBE ASSY, PS PRESSURE REAR

1шт.

5

1500679C1

TUBE ASSY.,6.35 mm OD, 2049, 205 mm Length

TUBE ASSY, BRAKE TO VALVE LH

1шт.

6

1500680C1

ADAPTER,M10 x 1 x 7/16"-20, 37º Fl

ADAPTOR, 7/16-20

1шт.

7

709803R1

SEALING WASHER

O-RING

1шт.

8

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

TEE

1шт.

9

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

1500669C1

TUBE ASSY.,15.8 mm OD, 325.5, 140.2 mm Length

TUBE ASSY, DRAFT CONTROL RETURN

1шт.

11

1500665C1

TUBE ASSY.

SPARE PART TUBE ASSY, DRAFT CONTROL PRESSURE

1шт.

12

1500662C2

ADAPTER,M18 x 1.5 x 3/4"-16, 37º Fl

ADAPTOR, M18 X 1.5 1/2 TUBE

1шт.

13

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

ADAPTOR, M18 X 1.5 5/8 TUBE

1шт.

14

1500663C1

O-RING

O-RING

2шт.

15

1500658C1

BRACKET

BRACKET, VALVE SUPPORT

1шт.

185282

BOLT, 3/8-16 X 3-1/4 HEX HD

2шт.

16

23323H

SPACER,1/4" Pipe x 1/2"

SPACER

2шт.

17

1500659C91

VALVE

VALVE ASSY, TRAILER BRAKE - BOSCH REF 0538008316

1шт.

17

1500659C91

VALVE

VALVE ASSY, TRAILER BRAKE - HAILWOOD AND ACKROYD H80641

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

WASHER, 5/16 LOCK

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

1500663C1

O-RING

O-RING

1шт.

19

1500673C1

ADAPTER,M18 x 1.5 x M12 Tube w/Nut

ADAPTOR

1шт.

20

1500663C1

O-RING

O-RING

1шт.

21

1500661C1

ADAPTER,M18 x 1.5 x 7/8"-14, 37 Degree Fl

ADAPTOR, M18 X 1.5 5/8 TUBE

1шт.

22

1500664C1

TUBE ASSY.,15.88 mm OD, 235, 136 mm Length

SPARE PART TUBE ASSY, MCV TO BRAKE VALVE

1шт.

23

1500668C1

TUBE,12 mm OD, 397, 316.7 mm Length

SPARE PART TUBE, BRAKE VALVE TO COUPLING

1шт.

24

1500671C1

NUT

NUT

1шт.

1500670C1

SLEEVE

SLEEVE, OLIVE

1шт.

25

1500675C1

BRACKET

BRACKET, COUPLING SUPPORT

1шт.

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

26

3131463R91

QUICK MALE COUPLING

COUPLING

1шт.

1135283R1

CAUTION DECAL

PRODUCT-GRAPHIC, CAUTION ( NOT ILLUSTRATED)

1шт.
