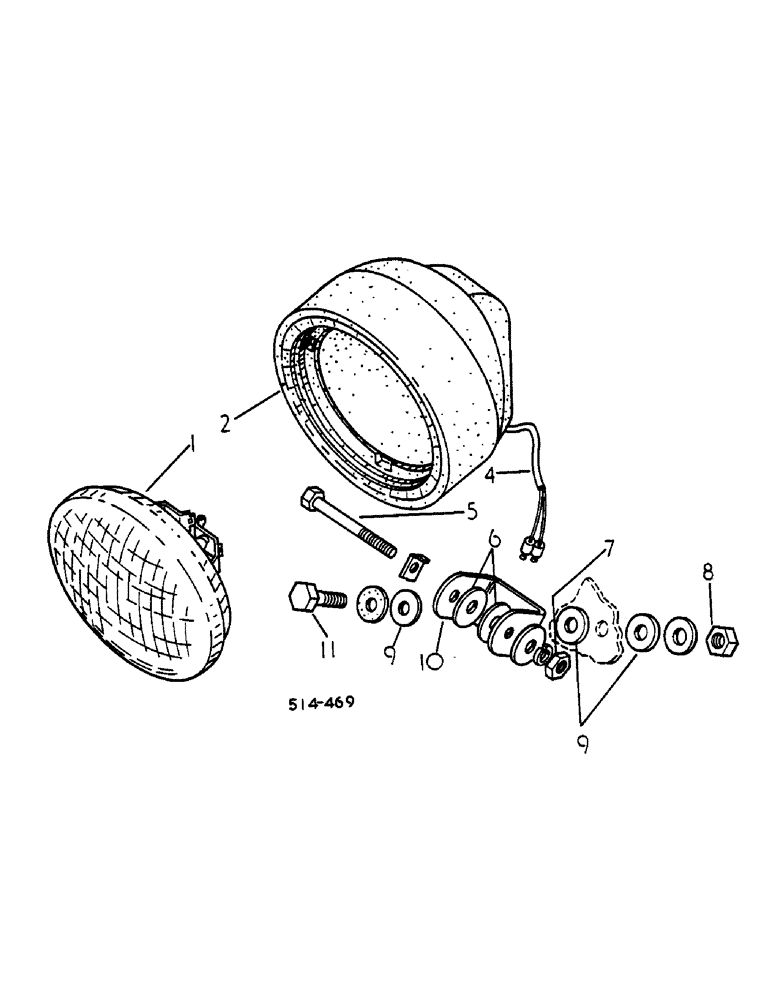

Запчасти Case IH 484 (00H18) - PLOUGH LAMP, 484/5683 & UP, 248/688 & UP (06) - ELECTRICAL

1

390756R91

LAMP

SEALED BEAM

1шт.

2

1328046C1

LAMP, WORK

LIGHT, WORK LAMP

1шт.

3

NSS

NOT SOLD SEPARAT

HARNESS, CABLE

1шт.

4

181323

BOLT,Hex, 1/4" - 28 x 2", Gr 5

1шт.

4

3072945R1

WASHER

TAB

1шт.

5

3112690R1

WASHER

NYLON

2шт.

6

3112690R1

WASHER

NYLON

2шт.

7

704668

NUT

1/4 UNF HEX

1шт.

16559

SPOOL

WASHER, 17/64 X 5/8

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

FLAT STEEL

1шт.

9

3112401R1

WASHER

NYLON

3шт.

10

3108515R1

SUPPORT

LAMP

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

FLAT STEEL

1шт.

3125881R1

BRACKET

PLOUGH LAMP

1шт.

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

NO 8-18 X 3/8 TAPPING ZND - DELUXE LIGHTING

4шт.
