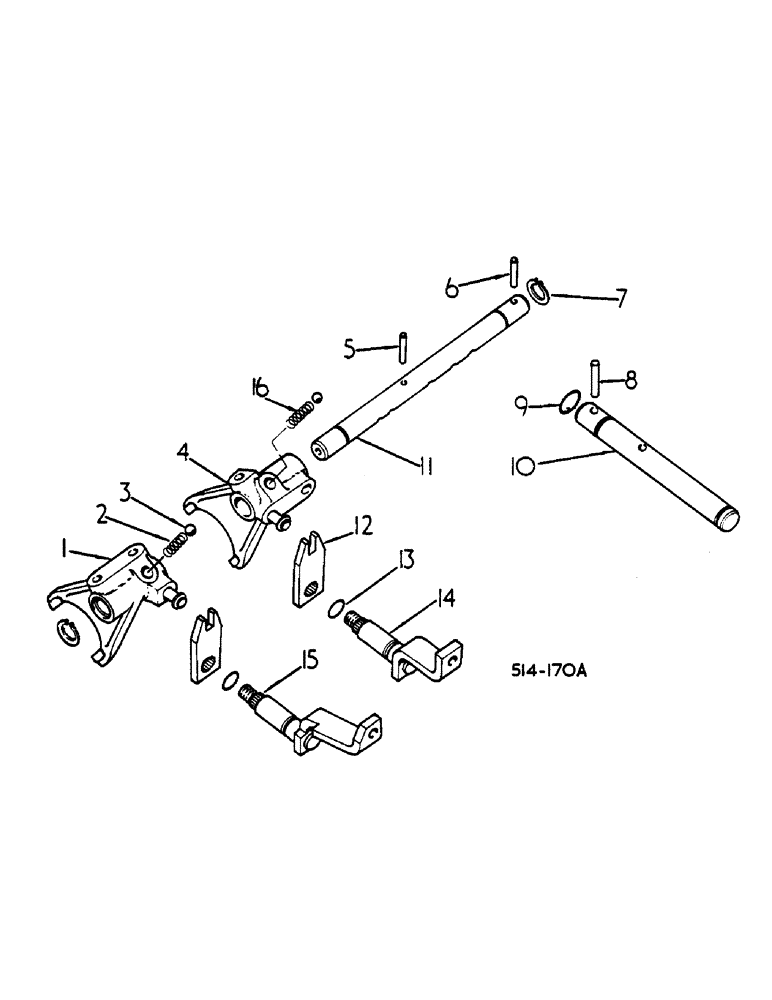

Запчасти Case IH 484 (00E20) - GEAR SHIFT MECHANISM - RANGE TRANSMISSION, 484 (04) - Drive Train

1

538911R4

FORK

FRONT

1шт.

2

103062C1

SPRING

POPPET BALL

1шт.

3

211-1013

BALL,10.31mm OD, Gr 24

13/32 CR-STL

2шт.

3

211-1013

BALL,10.31mm OD, Gr 24

13/32 CR-STL - OPTIONAL

2шт.

4

538912R4

FORK

REAR

1шт.

4

538913R4

FORK

USE ON SYNCHROMESH W/FORWARD AND REVERSE

1шт.

5

763458

PIN,1/4" x 1 1/2", Coiled

1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail

1шт.

8

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

9

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

10

402152R1

SHAFT

RANGE TRANS SHIFT LEVER IDLER - SYNCHROMESH DRIVE TRACTOR

1шт.

10

527853R1

SHAFT

RANGE SHIFT LEVER - USE ON SYNCHROMESH W/FORWARD AND REVERSE

1шт.

11

537473R3

RAIL

RANGE SHIFT FORK - SYNCHROMESH DRIVE TRACTORS

1шт.

11

402150R1

RAIL

RANGE SHIFT FORK - USE ON SYNCHROMESH W/FORWARD AND REVERSE

1шт.

12

405169R2

ARM

RANGE SHIFT INNER

2шт.

131-208

SPECIAL NUT,1/2"-13

1/2-13 NYLON INSERT

2шт.

13

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32

2шт.

14

405167R3

ARM

RANGE SHIFT OUTER REAR

1шт.

Q50

WASHER, 25/32 X 1-1/4 X 060

2шт.

15

405164R4

ARM

RANGE SHIFT OUTER FRONT

1шт.

Q301

WASHER, 25/32 X 1-1/4 X 060 - SYNCROMESH DRIVE TRACTORS

2шт.

16

534053C1

SPARE PART SPRING, POPPET BALL

1шт.
