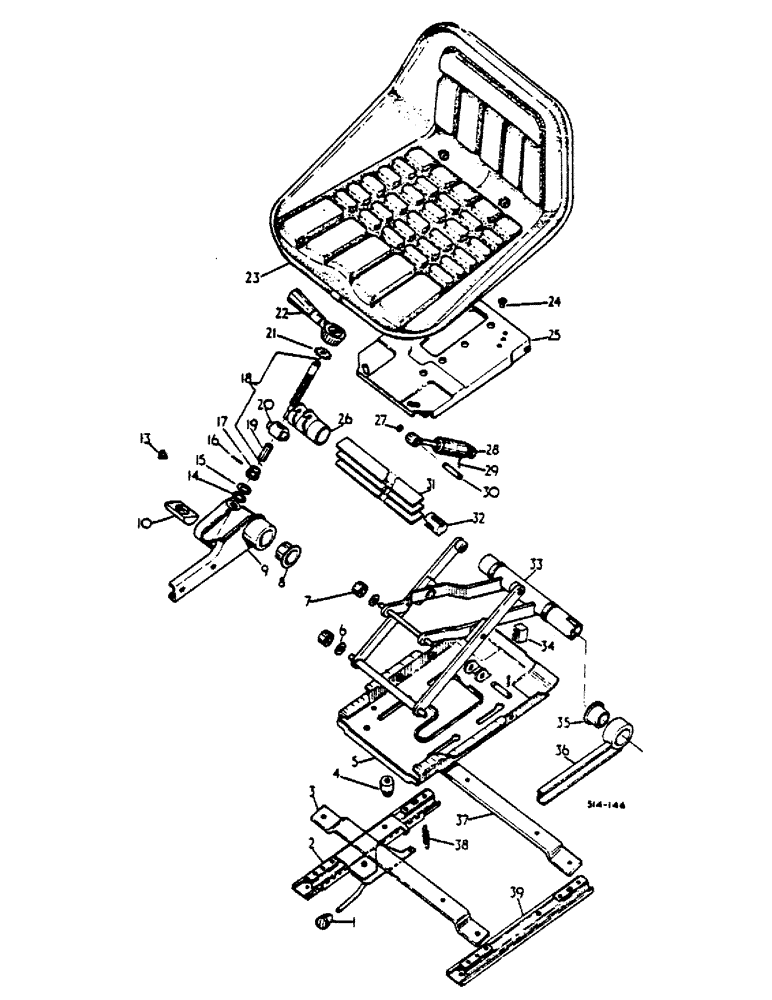

Запчасти Case IH 474 (13-10) - BOSTROM SUSPENSION SEAT DE-LUXE (05) - SUPERSTRUCTURE

528738R91

SEAT ASSY.

SEAT ASSY, DE-LUXE SUSPENSION - CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT A

1шт.

533233R91

SEAT ASSY, DE-LUXE SUSPENSION - HIGH BACK - CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT B

1шт.

1

538693R1

BUTTON

KNOB

1шт.

2

825199C91

SLIDE

RAIL, SLIDE R.H.

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

1шт.

HD MACH

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

538550R1

BRACKET

FRONT

1шт.

120376

NUT,5/16"-18, G5

2шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

1шт.

HD

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

3109739R1

BUMPER

1шт.

113959

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

1/4-20 x 5/8 CR REC FIL HD MACH

1шт.

32590D

WASHER

.266 x .422 x .032 C-Z

2шт.

5

538553R1

BASE

PLATE, ASSY, BASE

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

6

538565R1

WASHER

6шт.

7

538566R1

ROLLER

4шт.

8

538556R1

FLANGED BEARING

BEARING, FLANGED

1шт.

9

538558R1

SHROUD L.H.

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

2шт.

10

538574R1

SPACER

ROCKER

1шт.

11

538561R1

CLIP

1шт.

12

538563R1

TRUNNION

INDICATOR

1шт.

13

538695R1

PLUG

PUSH-IN

1шт.

14

538575R91

BEARING, NEEDLE

BEARING

1шт.

15

538576R1

THRUST WASHER

2шт.

16

538572R1

PIN, ROLL

1шт.

17

538571R1

COLLAR

1шт.

18

538567R91

STUD

ASSY, ADJUSTER

1шт.

19

538569R1

SLEEVE

1шт.

20

538568R1

TRUNNION

ADJUSTER

1шт.

21

538570R1

GEAR

ADJUSTER

1шт.

22

538573R1

HANDLE

ASSY, RATCHET

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 ZND HEC HD CAP

1шт.

20893R1

WASHER

11/32 x 1 x 11 GA C-Z

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

538528R1

SEAT

ASSY, PAN - UNIT A

1шт.

23

3113424R91

SEAT

ASSY, PAN - UNIT B

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

1шт.

HD MACH

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

4шт.

24

538552R1

NUT

4шт.

25

538551R1

SEAT PLATE

PLATE, ASSY, TOP

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 5/8 ZND HEX HD CAP

2шт.

156241

SCREW,Cross Flat Hd, 1/4" - 20 x 1/2"

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

538557R1

ADJUSTER

1шт.

27

110668

RING

2шт.

28

538577R1

DAMPER

ASSY

1шт.

29

539579R1

PIN, COTTER CHECK

2шт.

30

538578R1

PIN

DAMPER

2шт.

31

3074836R1

BAR

TORSION

3шт.

32

538560R1

RETAINER

1шт.

33

538554R1

LEVER ASSY.

LEVER, ASSY

1шт.

34

538564R1

STOP

LIMIT

2шт.

35

538556R1

FLANGED BEARING

BEARING, FLANGED

1шт.

36

538555R91

BRACKET

BEARING, ASSY

1шт.

37

538529R1

BRACKET

REAR

1шт.

120376

NUT,5/16"-18, G5

2шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

1шт.

HD MACH

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

38

538694R1

SPRING

1шт.

39

825198C1

RAIL

SLIDE L.H.

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

1шт.

HD MACH

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
