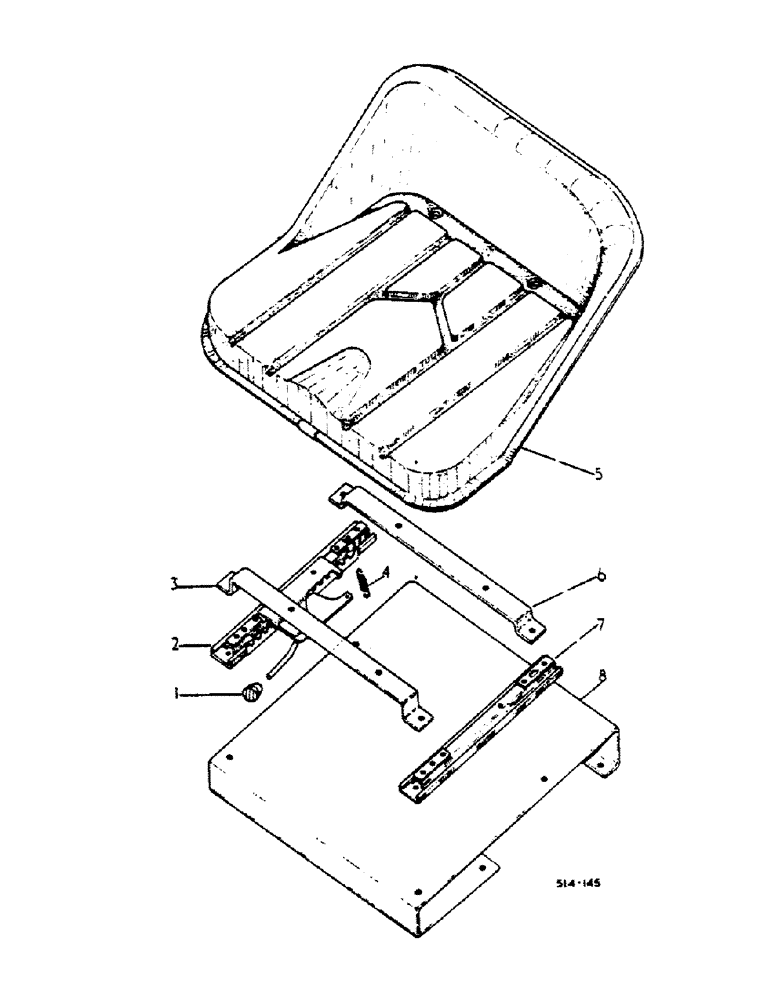

Запчасти Case IH 474 (13-09) - BOSTROM SEAT (05) - SUPERSTRUCTURE

528737R91

DRIVER SEAT

SEAT, ASSY, BOSTROM

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

1шт.

HD MACH

4шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z INT TOOTH LOCK

4шт.

1

538693R1

BUTTON

KNOB

1шт.

2

825199C91

SLIDE

RAIL, SLIDE R.H. W/ADJUSTER

1шт.

120376

NUT,5/16"-18, G5

2шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

538027R1

BRACKET, FRONT MOUNTING

1шт.

4

538694R1

SPRING

1шт.

5

538026R1

SEAT ASSY.

SEAT, ASSY, PAN

1шт.

6

538028R1

BRACKET

REAR MOUNTING

1шт.

7

825198C1

RAIL

SLIDE L.H.

1шт.

120376

NUT,5/16"-18, G5

2шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

537526R1

BRACKET

ASSY, SEAT MOUNTING

1шт.
