(13-08[1]) - WING MIRROR, TRACTOR WITH CAB

Запчасти Case IH 474 (13-08[1]) - WING MIRROR, TRACTOR WITH CAB (05) - SUPERSTRUCTURE

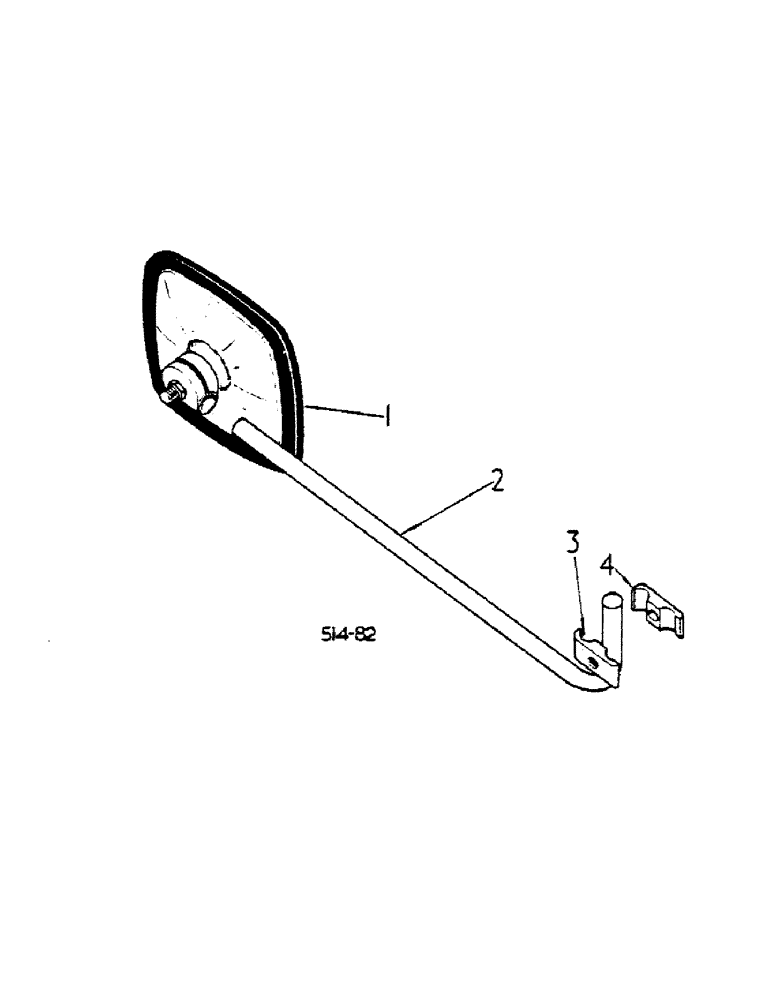

Схема запчастей Case IH 474 - (13-08[1]) - WING MIRROR, TRACTOR WITH CAB (05) - SUPERSTRUCTURE
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

528281R1

GLASS

MIRROR

2шт.

2

528282R1

MIRROR

TUBE, SUPPORT

2шт.

3

534461R1

CLAMP

MIRROR ARM SUPPORT

2шт.

4

534462R1

CLAMP

MIRROR ARM SUPPORT

2шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, 3/8-24 x 7/8 HEX HD CAP

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
