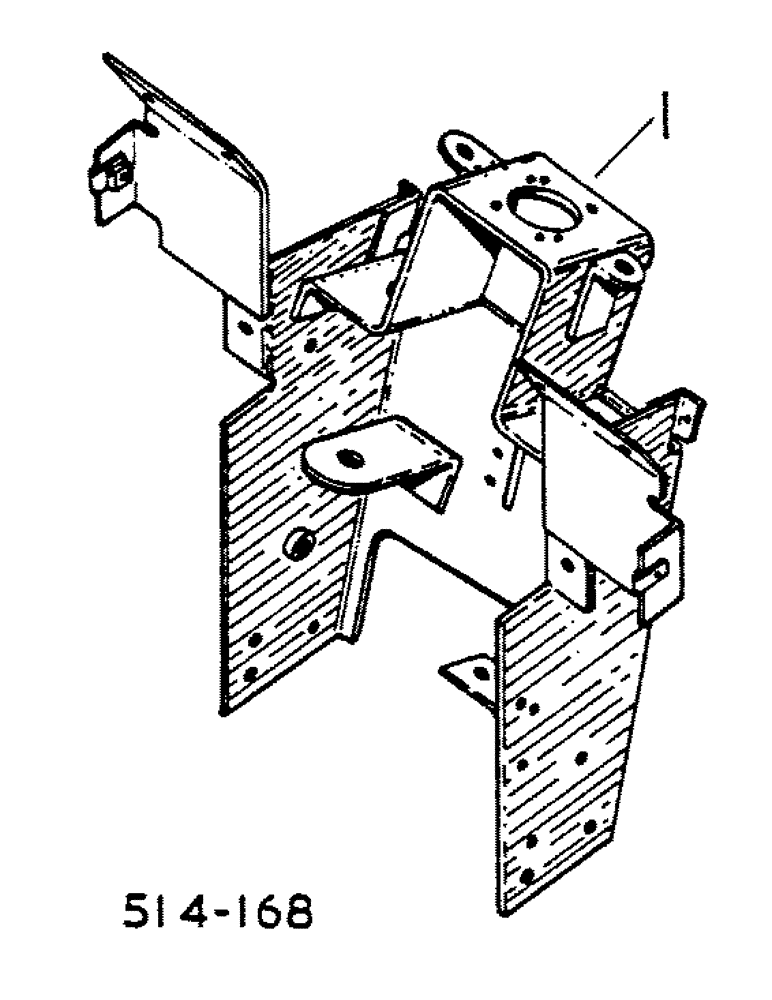

Запчасти Case IH 474 (13-07) - STEERING SUPPORT (05) - SUPERSTRUCTURE

1

3113302R1

SUPPORT

ASSY, STEERING - SYNCHROMESH DRIVE TRACTORS

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24539R1

HOLE PLUG BUTTON,1"

BUTTON, HOLE PLUG, , Optional w/3113429R1 1"

1шт.

3113429R1

PLUG

1 IN BUTTON - OPTIONAL W/24539R1

1шт.

1

3113303R1

SUPPORT

ASSY, STEERING - HYDROSTATIC DRIVE TRACTORS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24539R1

HOLE PLUG BUTTON,1"

BUTTON, HOLE PLUG, , Optional w/3113429R1 1"

1шт.

3113429R1

PLUG

1 IN BUTTON - OPTIONAL W/24539R1

1шт.

536704R1

BUSHING

CONTROL HANDLE CLAMP

1шт.

572830R1

NO LONGER SERVICED

SCREW, W/NYLON PELLET 5/16 x 1-1/

1шт.
