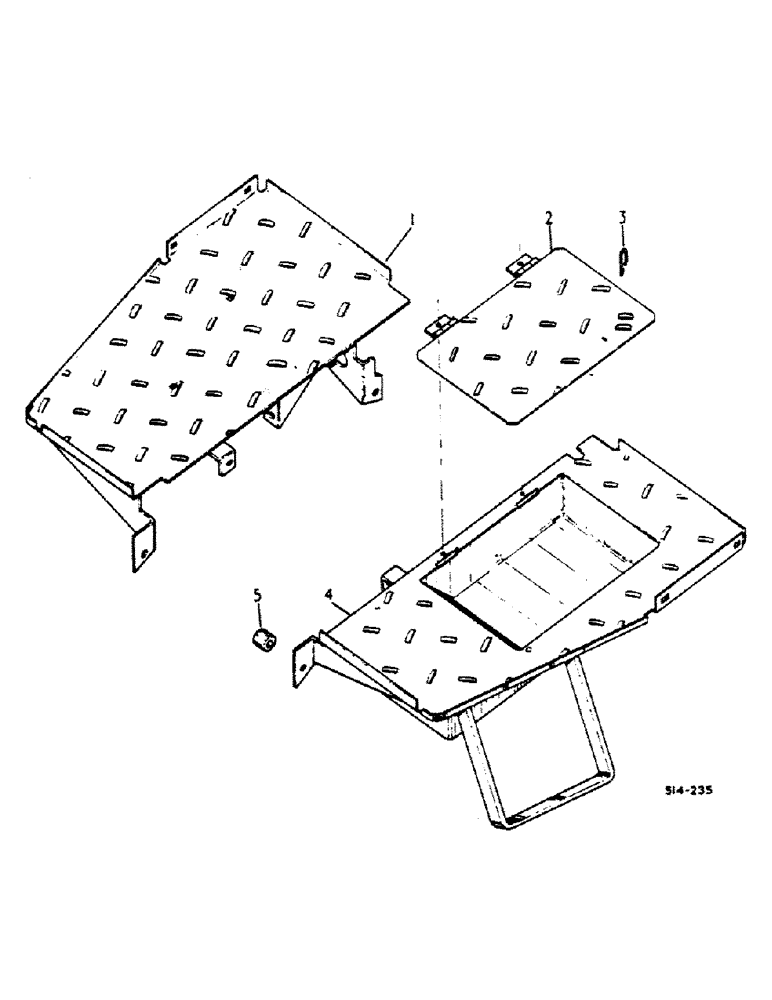

Запчасти Case IH 474 (13-06) - PLATFORM, MOUNTING STEP AND TOOL BOX (05) - SUPERSTRUCTURE

1

528523R2

STEP

PLATFORM ASSY, R.H.

1шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8-16 x 3/4 SHORT SQ NK CRG

2шт.

102635

NUT,3/8"-16, G5

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x .051

2шт.

2

538421R1

COVER ASSY

TOOL

1шт.

3

528917R1

RING

FINGER PULL

1шт.

4

528910R2

PLATFORM ASSY.

PLATFORM ASSY, L.H.

1шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8-16 x 3/4 SHORT SQ NK CRG

2шт.

102635

NUT,3/8"-16, G5

2шт.

179887

CABLE

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

13/32 x 13/16 x .051

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 x 5/8 C-Z SLT PAN HD

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

5

528909R1

SPACER

. L.H. PLATFORM

1шт.
