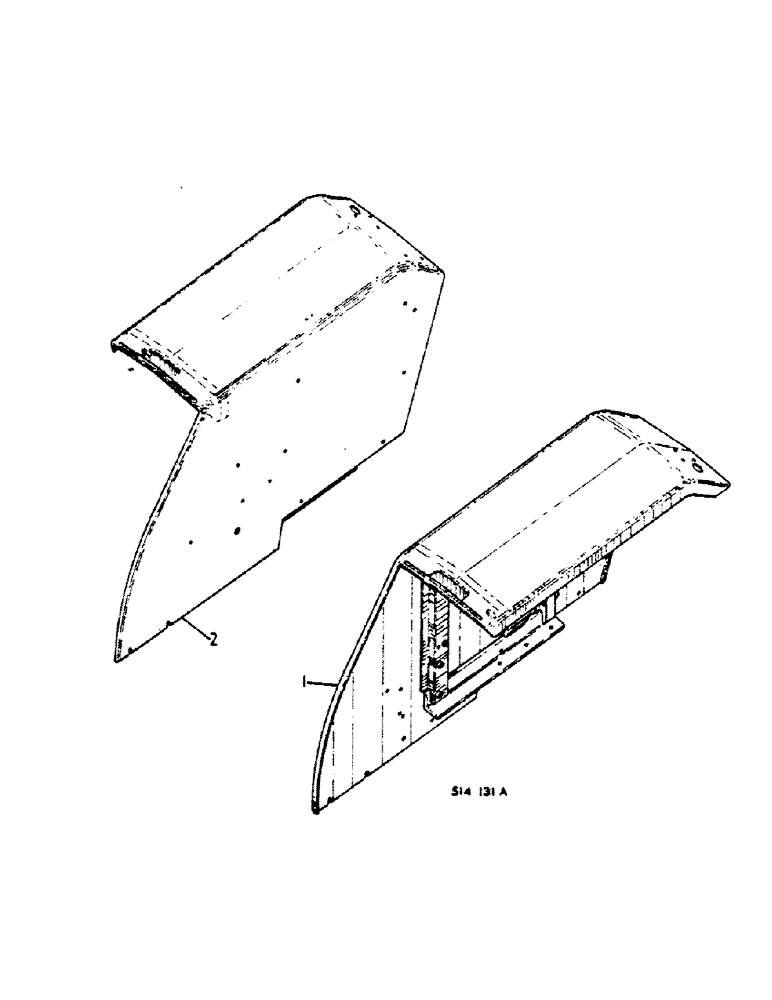

Запчасти Case IH 474 (13-05) - REAR FENDERS, FLAT TOP (05) - SUPERSTRUCTURE

1

538644R3

NO LONGER SERVICED

FENDER, W/PRODUCT GRAPHIC L.H.

1шт.

2

531003R3

FENDER ASSY.

FENDER, ASSY, R.H.

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/2 HEX HD CAP

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , To Rear Top Cover 5/16"

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , To Transmission Shift Hsg or Draft Control Hsg 5/16"

2шт.

181165

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/4 HEX HD CAP

4шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, , To axle carrier 1/2"

4шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 HEX HD CAP

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , To parking brake bracket 3/8"

3шт.
