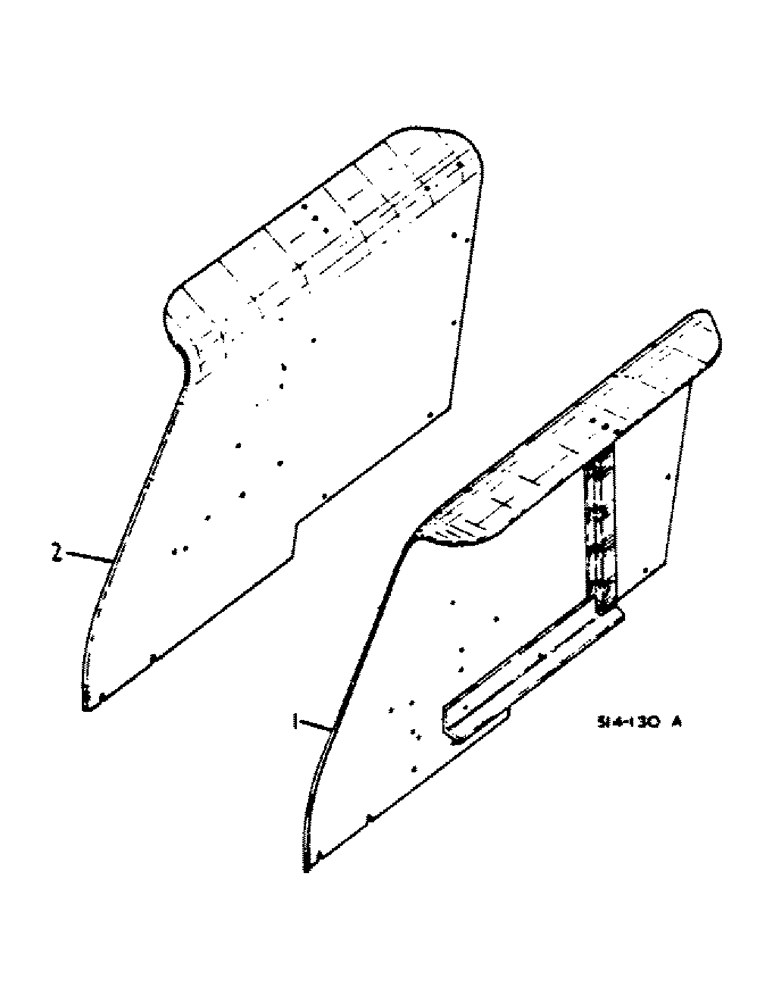

Запчасти Case IH 474 (13-04) - REAR FENDERS, CROWN TYPE (05) - SUPERSTRUCTURE

1

538641R1

FENDER ASSY.

FENDER, L.H. W/PRODUCT GRAPHIC

1шт.

2

530015R1

FENDER ASSY.

FENDER R.H.

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , To Rear Top Cover 5/16"

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , To Transmission Shift Hsg or Draft Control Hsg 5/16"

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 HEX HD CAP

4шт.

116121

LOCK WASHER,1/2"

WASHER, LOCK, , To axle carrier 1/2"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 HEX HD CAP

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 HEX HD CAP

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , To parking brake bracket 3/8"

3шт.

ref

Part No.

English

1шт.

3113657R1

PLUG

SIDE AND TAIL LIGHT BLANKING , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

4шт.

3113430R1

PLUG

SIDE AND TAIL LIGHT BLANKING , THE FOLLOWING PARTS ARE NOT ILLUSTRATED

2шт.
