Запчасти Case IH 474 (13-02) - HOOD AND PANELS (05) - SUPERSTRUCTURE

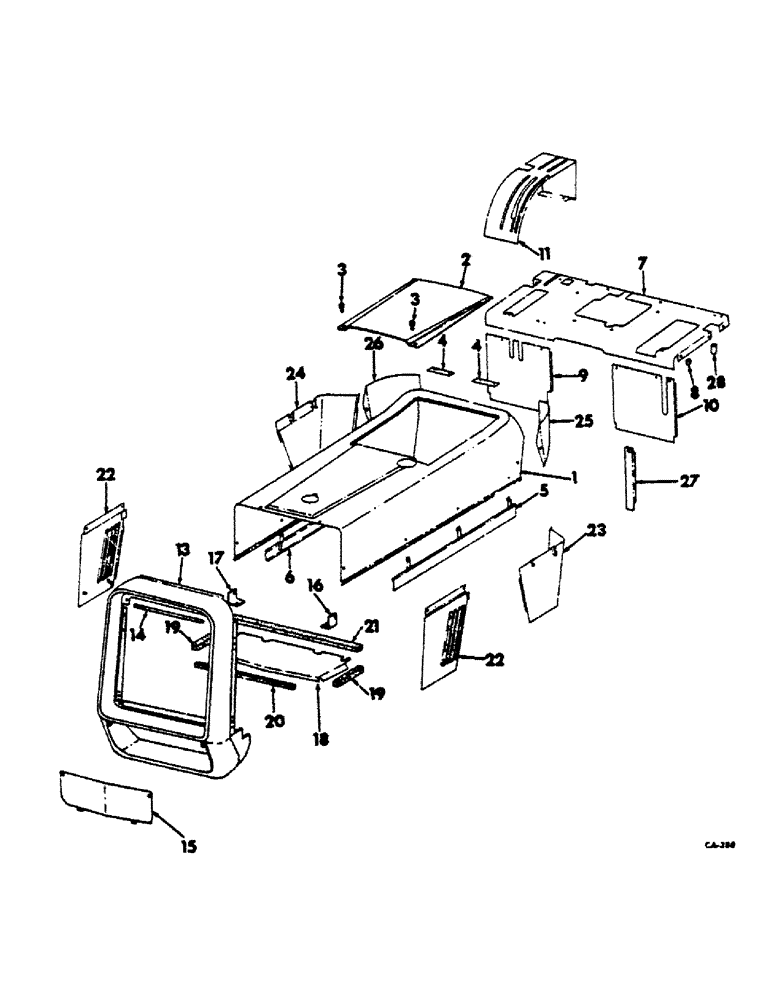

Схема запчастей Case IH 474 - (13-02) - HOOD AND PANELS (05) - SUPERSTRUCTURE
3
5
28
8
25
14
27
18
1
26
19
24
17
4
19
16
21
7
13
15
3
22
2
9
10
20
6
23
22
11
4

Артикул

Название

Примечание

Количество

1

405422R1

HOOD ASSY - TRACTORS W/UNDERSLUNG EXHAUST

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 FLOATING CAGE

2шт.

534458R1

NUT

HEX 10-24 LOCK

6шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 GA

6шт.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 C-Z HEX WASHER HD

1шт.

CAP

6шт.

1

406417R1

NO LONGER SERVICED

HOOD ASSY - TRACTORS W/VERTICAL EXHAUST

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 FLOATING CAGE

2шт.

534458R1

NUT

HEX 10-24 LOCK

6шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 GA

6шт.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 C-Z HEX WASHER HD

1шт.

CAP

6шт.

534308R1

SHIELD

SHEET, ASBESTOS

1шт.

534458R1

NUT

5/16-18 FLOATING CAGE

2шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 GA

2шт.

2

401933R11

COVER

ASSY, REAR HOOD

1шт.

3

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW

2шт.

376787R1

WASHER

X

2шт.

4

406698R1

STRIP

REAR HOOD COVER RETAINER

2шт.

147791

SCREW,Cross Rec Fil Hd, #10 - 24 x 5/8"

10-24 x 5/8 CR REC F HD MACH

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

110633

NUT,#10-24

4шт.

5

538362R1

PANEL

ASSY, LOWER HOOD LH

1шт.

6

538363R1

PANEL

ASSY, LOWER HOOD RH

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

157728

SCREW

1/4-20 x 5/8 C-Z CR REC TRUSS

1шт.

HD MACH

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

528640R3

COVER

ASSY, REAR TOP

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120368

NUT,5/16"-24, G5

5шт.

8

401941R1

SPACER

MOUNTING - SHORT

2шт.

9

527858R1

ANGLE

CHANNEL ASSY, REAR VERTICAL RH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 1/2 C-Z HEX HD TAP

2шт.

10

528638R1

CHANNEL

ASSY, REAR VERTICAL LH

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW, 1/4-20 x 1/2 C-Z HEX HD TAP

3шт.

10

528473R1

PLATE

SECTION ASSY, VERTICAL INNER - TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

11

529457R31

COVER

ASSY, HITCH CONTROL LEVER

1шт.

12

- NOT USED -

1шт.

13

537180R1

HOUSING

ASSY, RADIATOR GRILLE

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

14

530854R1

MOLDING

MOULDING, AIR BAFFLE EDGE

1шт.

15

402427R1

PANEL

ASSY, GRILLE LOWER FRONT

1шт.

157728

SCREW

1/4-20 x 5/8 C-Z CR REC TRUSS

1шт.

HD MACH

2шт.

16

406696R1

BRACKET

GRILLE HOUSING ANGLE LH

1шт.

17

406697R1

BRACKET

GRILLE HOUSING ANGLE RH

1шт.

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

7/16-14 x 7/8 C-Z HEX HD CAP

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

18

402457R1

BAFFLE

RADIATOR LOWER

1шт.

19

389838R1

FOAM

GASKET, RADIATOR BAFFLE LOWER

2шт.

20

370181R1

GASKET

RADIATOR BAFFLE

1шт.

21

394788R1

GASKET

GASKET, RADIATOR BAFFLE

1шт.

22

402458R1

PANEL

ASSY, GRILLE SIDE L.H.

1шт.

22

402459R1

PANEL

ASSY, GRILLE SIDE R.H.

1шт.

NLS

NO LONGER SERVICED

1/4-28 x 1/2 C-Z SLT HEX HD

1шт.

TAP

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051

2шт.

23

538366R1

PANEL

LOWER SIDE REAR LH

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 x 5/8 HEX WASHER HD

1шт.

CAP

3шт.

24

538367R1

PANEL

LOWER SIDE REAR RH

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 x 5/8 HEX WASHER HD

1шт.

CAP

3шт.

25

402423R1

PANEL

L.H.

1шт.

26

402424R1

PANEL

RH

1шт.

27

528475R1

SECTION ASSY, VERTICAL OUTER - TRACTORS W/HAND OPERATED DRUM BRAKE

1шт.

28

401940R2

SPACER, MOUNTING

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

Выбрано товаров: 72
