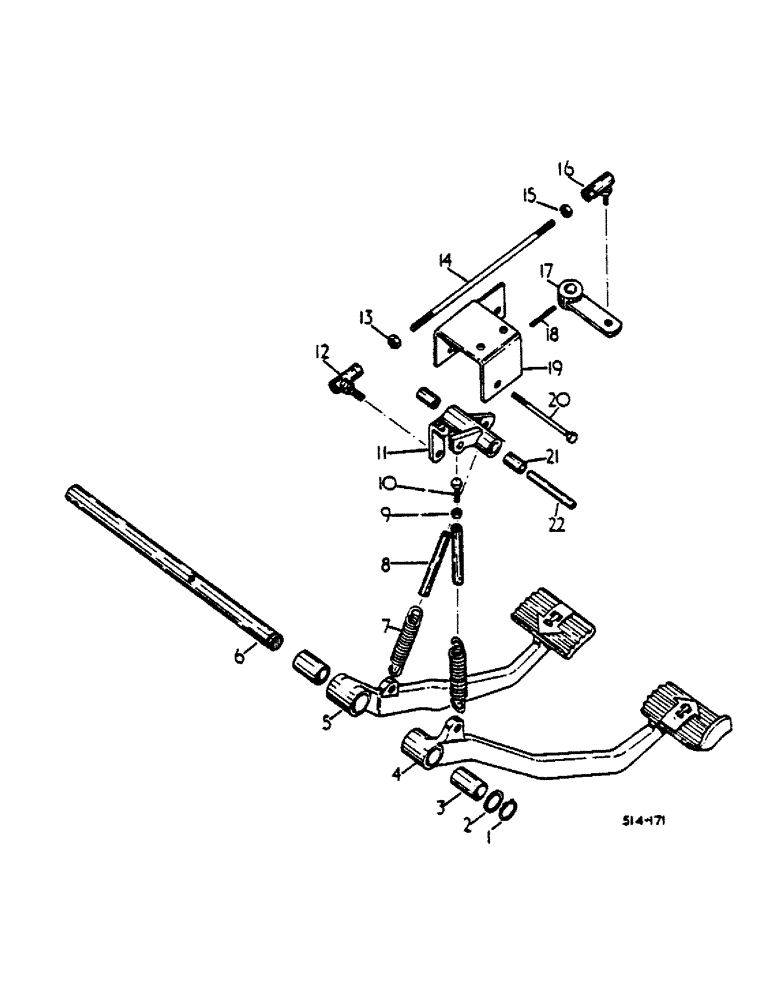

Запчасти Case IH 474 (07-56) - FOOT SPEED CONTROLS (04) - Drive Train

1

454331R1

SNAP RING,#87, Ext

Forward-reverse speed control #87, Ext

1шт.

SNAP

1шт.

2

23183R1

WASHER

19/32 x 1-3/8 x .54

1шт.

3

539246R1

BUSHING

SPEED CONTROL REVERSE PEDAL

2шт.

4

537945R11

PEDAL ASSY.

PEDAL ASSY, SPEED CONTROL REVERSE

1шт.

5

537946R11

PEDAL ASSY.

PEDAL ASSY, SPEED CONTROL FORWARD

1шт.

6

537943R1

SHAFT

FORWARD AND REVERSE SPEED CONTROL

1шт.

SHAFT

1шт.

7

537956R1

SPRING

PSEED CONTROL RETURN

2шт.

8

537947R1

ROD

FORWARD AND REVERSE SPEED CONTROL

2шт.

9

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

2шт.

10

181567

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5

SCREW, 1/4 x 7/8 HEX HD CAP

2шт.

11

537948R91

LEVER

BELLCRANK ASSY, FORWARD AND REVERSE

1шт.

SPEED CONTROL

1шт.

12

392594R1

END ASSY.

JOINT, 3/8 x 1-11/32 BALL SPEED CONTROL

1шт.

BELLCRANK

1шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

124925

JAM NUT,Jam, 3/8"-24, G5

3/8-16 HEX JAM

1шт.

14

537957R1

ROD

SPEED CONTROL CAM

1шт.

15

23460R1

NUT,Jam, 3/8"-24, G5, LH

3/8-16 C-Z LH THD HEX JAM

1шт.

16

534930R1

BALL JOINT

JOINT, 3/8-24 x 1-11/16 BALL CAM

1шт.

ACTUATING ROD

1шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

537958R1

ARM

ASSY, SPEED CONTROL CAM ACTUATING

1шт.

18

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

19

537954R1

BRACKET, FORWARD AND REVERSE SPEED

1шт.

CONTROL BELLCRANK

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

20

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

SCREW, 5/16-x 4 HEX HD CAP

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

537936R1

BUSHING

2шт.

22

537953R1

SPACER

FORWARD AND REVERSE SPEED

1шт.

CONTROL BELLCRANK

1шт.
