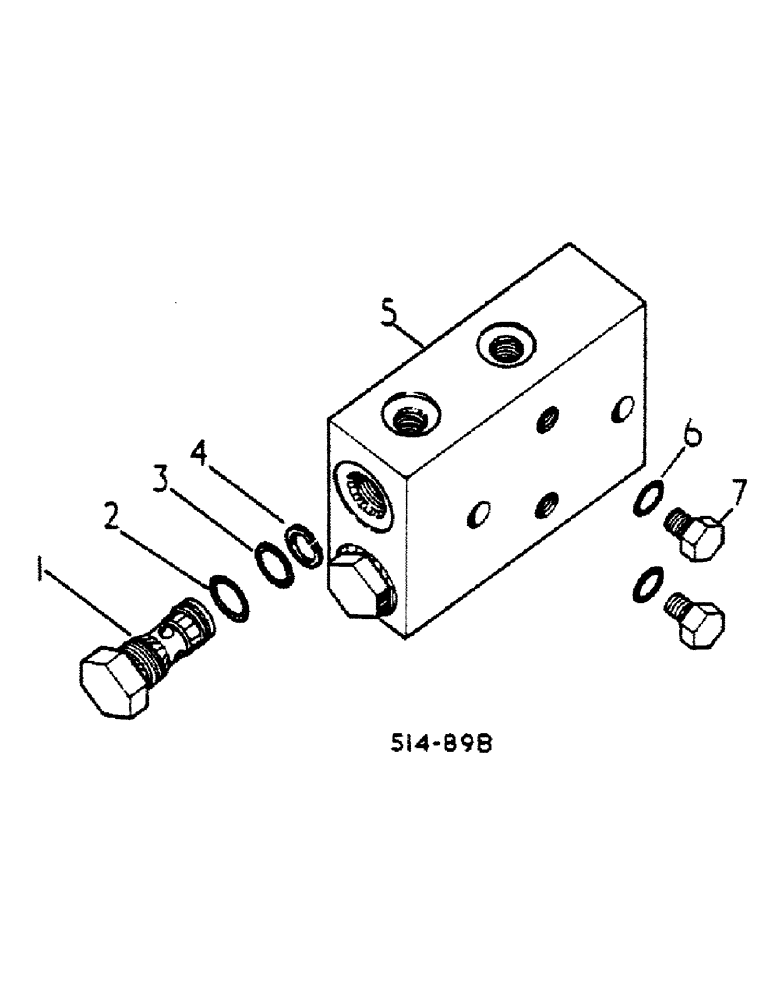

Запчасти Case IH 474 (07-53) - MANIFOLD CHECK VALVE (04) - Drive Train

1

535251R1

VALVE

ASSY CHECK

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

2шт.

3

398699R1

BACK-UP RING

WASHER, BACK-UP

2шт.

4

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 1/16

2шт.

5

535250R2

BLOCK

CHECK VALVE

1шт.

6

355967R1

O-RING,0.364" ID x 0.003" Width

3/8 x 1/2 x 1/16

2шт.

7

9410967R1

PLUG, 7/16-20 O-RING BOSS

2шт.
