Запчасти Case IH 474 (07-51) - TORQUE AMPLIFIER LEVER AND CONNECTIONS (04) - Drive Train

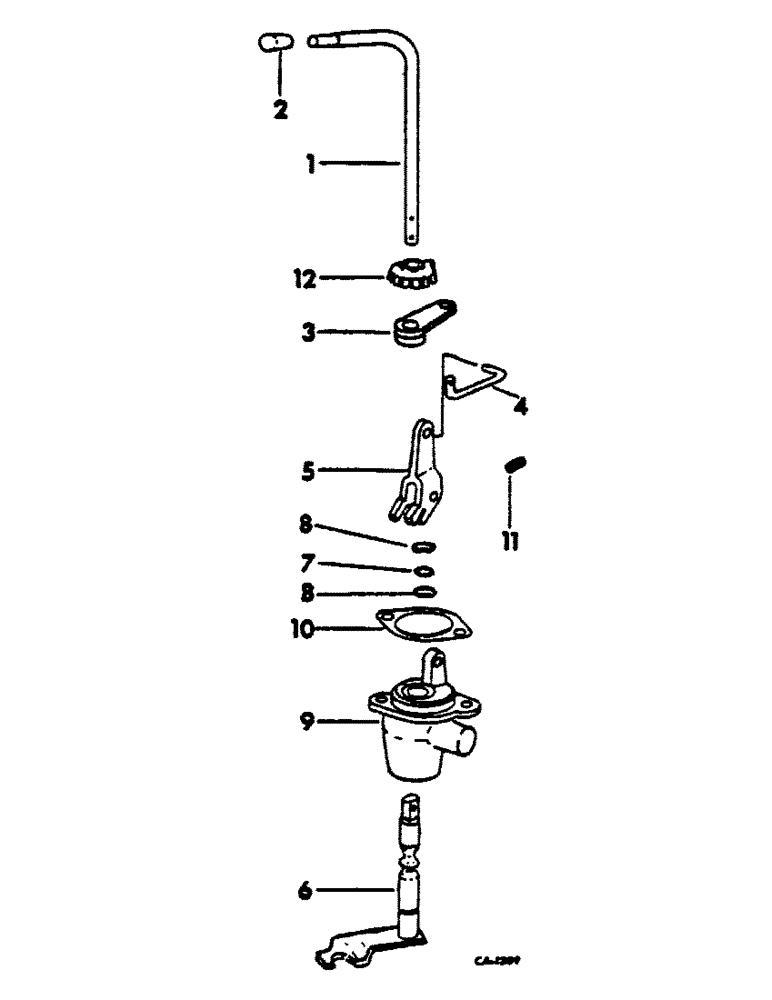

Схема запчастей Case IH 474 - (07-51) - TORQUE AMPLIFIER LEVER AND CONNECTIONS (04) - Drive Train
7
9
5
1
10
3
4
6
2
8
12
8
11

Артикул

Название

Примечание

Количество

1

402583R1

ROD

TA CONTROL HANDLE

1шт.

2

402584R1

BUTTON

KNOB, TA CONTROL HANDLE ROD

1шт.

Q5035

WASHER

1/2 x 1 x 1/16

1шт.

103384

COTTER PIN,1/8" x 3/4"

PIN, 1/8 x 1 COT.

1шт.

3

402585R1

ARM

ASSY, TA CONTROL

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

4

402588R1

ROD

TA CONTROL

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

402589R1

LEVER ASSY.

LEVER ASSY, TA CONTROL

1шт.

22731D

SPLIT PIN/SAFETY PIN

PIN, 1/4 x 29/32 ROD END

1шт.

16558R1

WASHER

17/64 x 5/8 x .036

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

6

531553R1

LEVER ASSY.

LEVER ASSY, TA CONTROL

1шт.

20702R1

DOWEL,3/16" x 3/4"

PIN, 3/16 x 3/4 DOWEL

1шт.

7

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

1шт.

8

309032R1

SNAP RING,#62, Ext

Ring, Snap, , TA control shaft #62, Ext

2шт.

9

402595R1

SUPPORT

TA CONTROL SHAFT

1шт.

10

401623R1

GASKET

TA CONTROL SHAFT SUPPORT

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

402596R1

SPRING

TA CONTROL

1шт.

17014R1

BALL

7/16 CR STL

1шт.

12

528290R1

GUIDE RING

COLLAR, TA CONTROL HANDLE

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW, 8-32 x 3/8 HEX SOC HD F PT

1шт.

SET

1шт.

Выбрано товаров: 26
