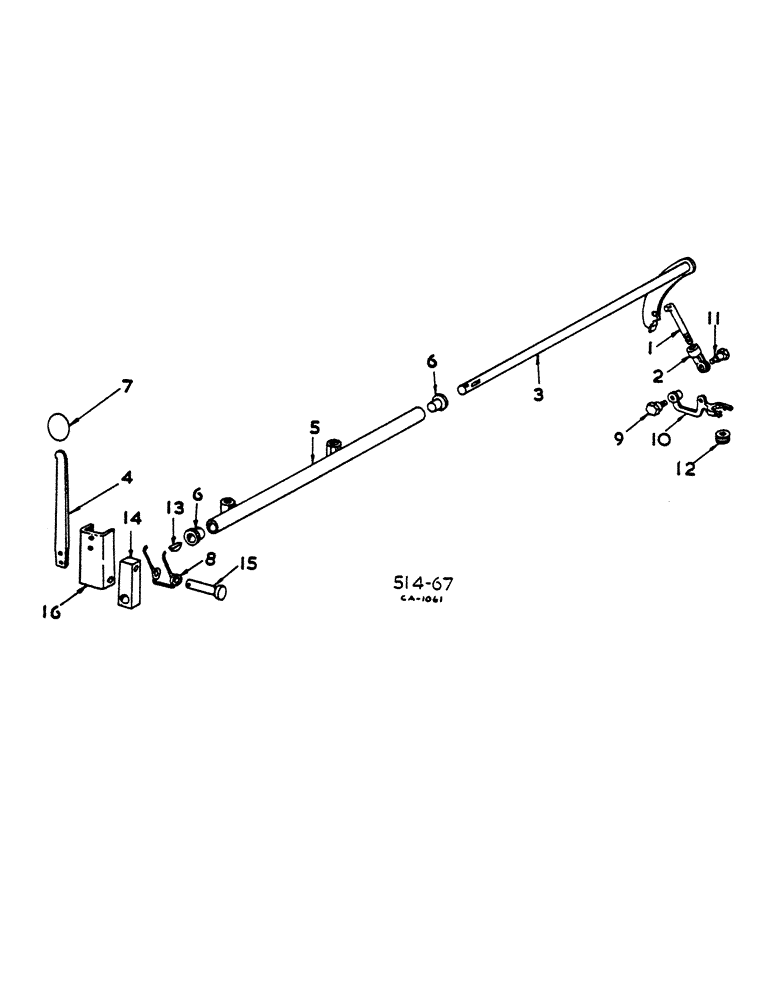

Запчасти Case IH 474 (07-50) - POWER TAKE OFF LEVER AND CONNECTIONS (04) - Drive Train

1

535450R1

ROD ASSY.

ROD ASSY, IPTO CONTROL

1шт.

103375

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

535453R1

PIN

IPTO ROD

1шт.

2

528837R1

CLEVIS,5/16" - 24

IPTO CONTROL

1шт.

3

401741R1

SHAFT ASSY.

SHAFT ASSY, IPTO CONTROL CROSS-OVER

1шт.

193385

EYELET

PIN, 1/8 x 1 COT

1шт.

4

536214R1

LEVER

ASSY, HAND

1шт.

5

530811R11

SUPPORT

ASSY, CONTROL SHAFT

1шт.

6

528839R1

BUSHING

CONTROL SHAFT SUPPORT

1шт.

7

530090R1

KNOB

IPTO HAND LEVER

1шт.

8

536215R2

SPRING

HAND LEVER

1шт.

9

401754R1

BOLT,3/8" - 16 x 2.20"

CONTROL ARM PIVOT SHAFT

1шт.

704864R1

SPACER - TRACTORS W/HAND OPERA TED DRUM BRAKES

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

401749R2

LEVER ASSY.

LEVER ASSY, CONTROL

1шт.

11

530809R1

BOLT,Shoulder, Hex, 1/4" - 28 x 1.06"

SHOULDER

1шт.

12

530813R2

GUIDE BUSHING

COLLAR, IPTO CONTROL

1шт.

23587R1

PIN, 3/16 x 7/8 DOWEL 3/16" x 7/8"

1шт.

13

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

14

532390R1

NO LONGER SERVICED

PIVOT, CONTROL HANDLE

1шт.

15

577140R1

LOCK PIN,3/8" x 1 7/8", Slotted

Pin, 3/8" x 1 7/8", Slotted

1шт.

16

530810R1

NO LONGER SERVICED

YOKE, IPTO LEVER

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
