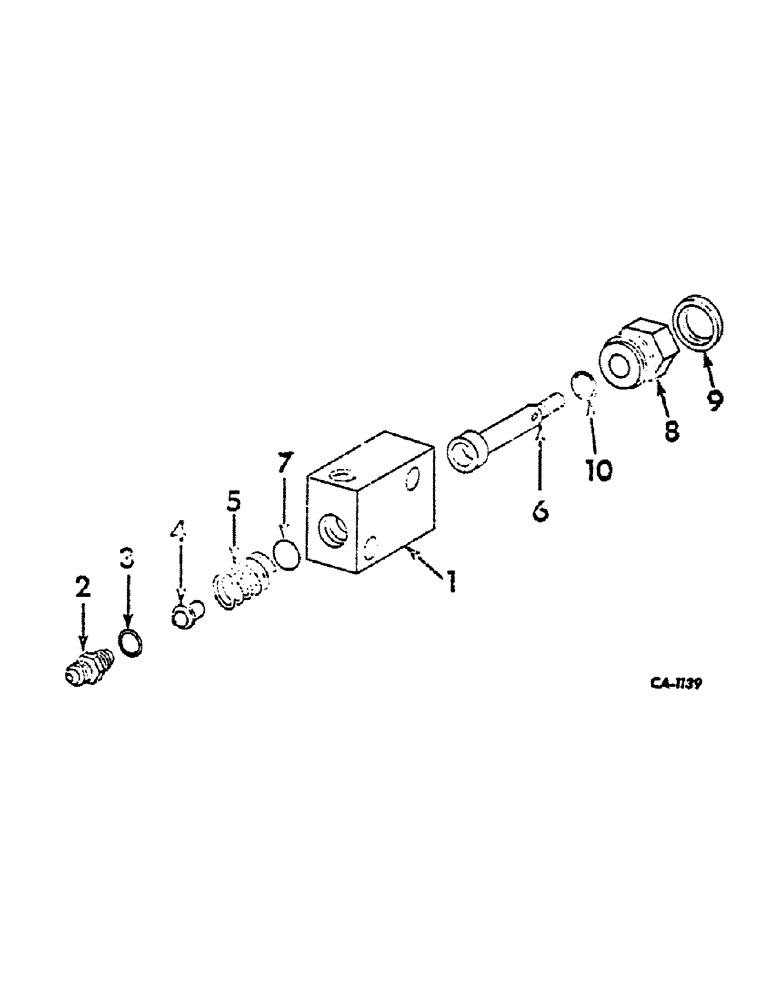

Запчасти Case IH 474 (07-49) - FOOT-N-INCH VALVE (04) - Drive Train

398705R91

VALVE

ASSY, FOOT-N-INCH

1шт.

1

BODY, VALVE - ORDER VALVE 398705R91

1шт.

2

398709R1

SEAT

POPPET VALVE

1шт.

3

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

4

398710R1

VALVE POPPET

VALVE, POPPET

1шт.

5

398731R1

SPRING

VALVE

1шт.

6

398708R1

STOP

VALVE

1шт.

7

401293R91

PACKAGE

RELIEF VALVE SHIM SERVICE - CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

SHIM .042 398711R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

SHIM .020 398712R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

SHIM .007 398713R1

1шт.

Not available for service

1шт.

NSS

NOT SOLD SEPARAT

SHIM .005 398174R1

1шт.

Not available for service

1шт.

8

398707R1

GUIDE

VALVE SPRING STOP

1шт.

9

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

OIL - OPTIONAL W/530101R91

1шт.

9

530101R91

OIL SEAL

OIL - OPTIONAL W/398701R91

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

1шт.
