Запчасти Case IH 474 (07-47) - DRIVE CONTROL VALVE (04) - Drive Train

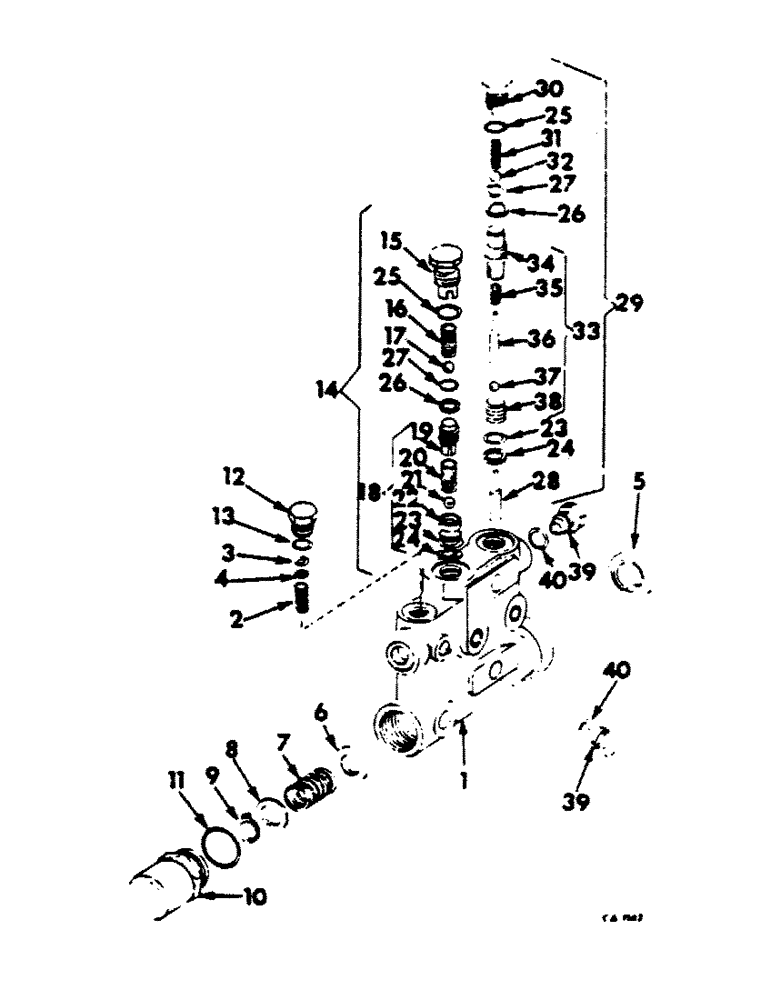

Схема запчастей Case IH 474 - (07-47) - DRIVE CONTROL VALVE (04) - Drive Train
25
9
14
34
36
23
24
17
15
26
30
25
1
40
3
24
18
13
26
35
37
39
6
29
11
16
20
40
7
12
2
19
27
22
39
4
27
28
38
33
10
5
31
8
32
23
21

Артикул

Название

Примечание

Количество

401852R91

LOCK VALVE

VALVE ASSY, DRIVE CONTROL

1шт.

1

BODY ASSY, DRIVE CONTROL

1шт.

2

400454R1

SPRING

VALVE

1шт.

3

875777R1

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

1шт.

4

401291R1

SPRING WASHER

ANTI-COAST VALVE PIN

1шт.

5

381232R91

OIL SEAL

OIL - OPTIONAL W/530097R91

1шт.

5

530097R91

SEAL

OIL - OPTIONAL W/381232R91

1шт.

6

398693R1

WASHER

1шт.

7

398733R1

SPRING

DRIVE CONTROL VALVE CENTERING

1шт.

8

398694R1

WASHER

1шт.

9

398700R1

SNAP RING,#56, .524", Ext

RING, RETAINING

1шт.

10

398692R1

PLUG

DRIVE CONTROL VALVE

1шт.

11

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE

1шт.

12

533567R1

PLUG

9/16-18 STR THD O-RING BOSS

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

14

404497R2

SPARE PART

VALVE ASSY, -B- CAPSULE

1шт.

15

BODY, CHECK VALVE SEAT - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404497R2

1шт.

16

SPRING, UPPER BALL CHECK - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404497R2

1шт.

17

BALL, 5/16 DIA - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404497R2

1шт.

18

VALVE ASSY, COMBINATION - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404497R2

1шт.

19

BODY, CHECK VALVE SEAT - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404497R2

1шт.

20

SPRING, LOW PRESSURE RELIEF - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404497R2

1шт.

21

BALL, 7/32 DIA - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404497R2

1шт.

22

SEAT, RELIEF VALVE - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404497R2

1шт.

23

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 x 1/16

2шт.

24

398699R1

BACK-UP RING

RING, BACK-UP

1шт.

25

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

2шт.

26

383004R1

BACK-UP RING,Split, 13.16mm ID x 15.9mm OD x 1.32mm Thk

RING, BACK-UP

2шт.

27

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16

2шт.

28

398696R1

PIN

LOWER VALVE LIFT

2шт.

29

404496R2

VALVE

ASSY -A- CAPSULE

1шт.

30

BODY, CHECK VALVE - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404496R2

1шт.

31

SPRING, CHECK VALVE - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404496R2

1шт.

32

BALL, 5/16 DIA. - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404496R2

1шт.

33

VALVE ASSY, COMBINATION - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404496R2

1шт.

34

BODY, CHECK VALVE SEAT - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404496R2

1шт.

35

SPRING, LOWER CHECK VALVE - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404496R2

1шт.

36

PIN, UPPER VALVE LIFT - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404496R2

1шт.

37

BALL, 1/4 DIA - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404496R2

1шт.

38

SEAT, LOWER CHECK VALVE - NOT SERVICED SEPARATELY, ORDER VALVE ASSY 404496R2

1шт.

39

9410356

PLUG

7/16-20 STR THD O-RING BOSS

2шт.

40

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

Выбрано товаров: 42
