Запчасти Case IH 474 (07-45) - FOOT-N-INCH CONTROLS (04) - Drive Train

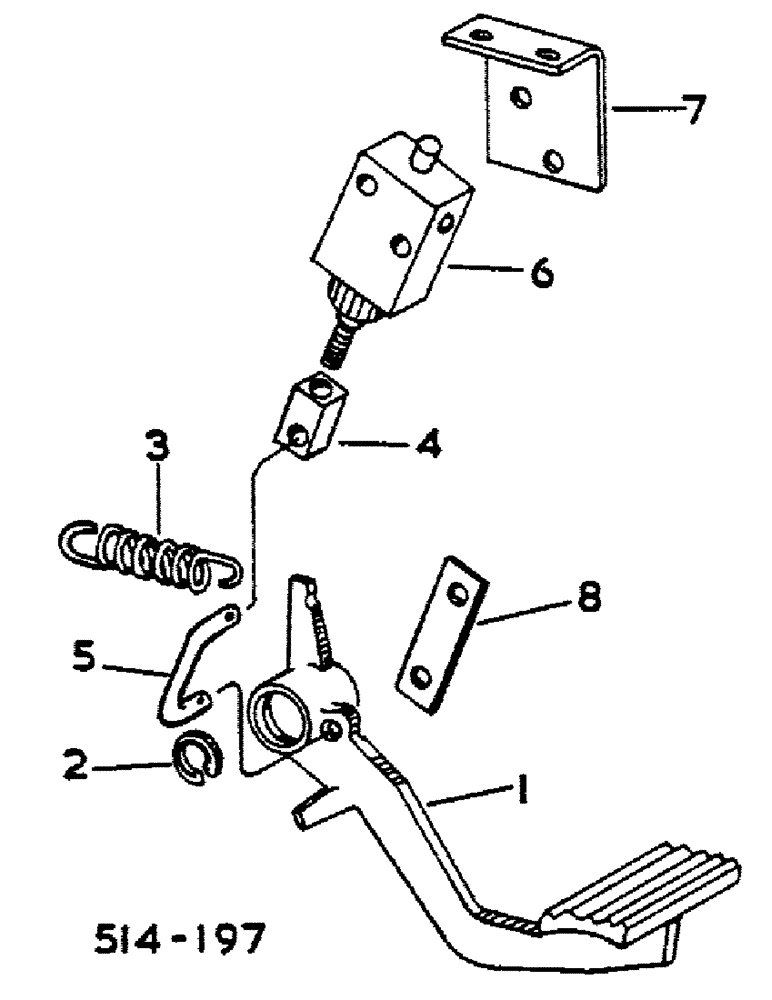

Схема запчастей Case IH 474 - (07-45) - FOOT-N-INCH CONTROLS (04) - Drive Train
4
6
3
5
8
7
2
1

Артикул

Название

Примечание

Количество

TRACTORS FITTED W/HAND SPEED CONTROLS

1шт.

1

530817R1

PEDAL

ASSY, FOOT-IN-INCH VALVE

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 GA

1шт.

21739R1

WASHER

11/32 x 9/16 x .54

1шт.

539246R1

BUSHING

FOOT-N-INCH VALVE PEDAL

1шт.

2

454331R1

SNAP RING,#87, Ext

Clutch pedal #87, Ext

1шт.

3

539556R1

SPRING

RELIEF VALVE PEDAL RETURN

1шт.

4

398766R1

UNION

CONNECTOR, FOOT-N-INCH VALVE

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

5

534463R2

LINK ASSY.

LINK ASSY, FOOT-N-INCH VALVE PEDAL

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

6

398705R91

VALVE

ASSY, FOOT-N-INCH - FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF FOOT-N INCH VALVE

1шт.

7

539559R1

BRACKET, FOOT-N-INCH VALVE

1шт.

8

539557R1

PLATE

VALVE LINK

1шт.

Выбрано товаров: 14
