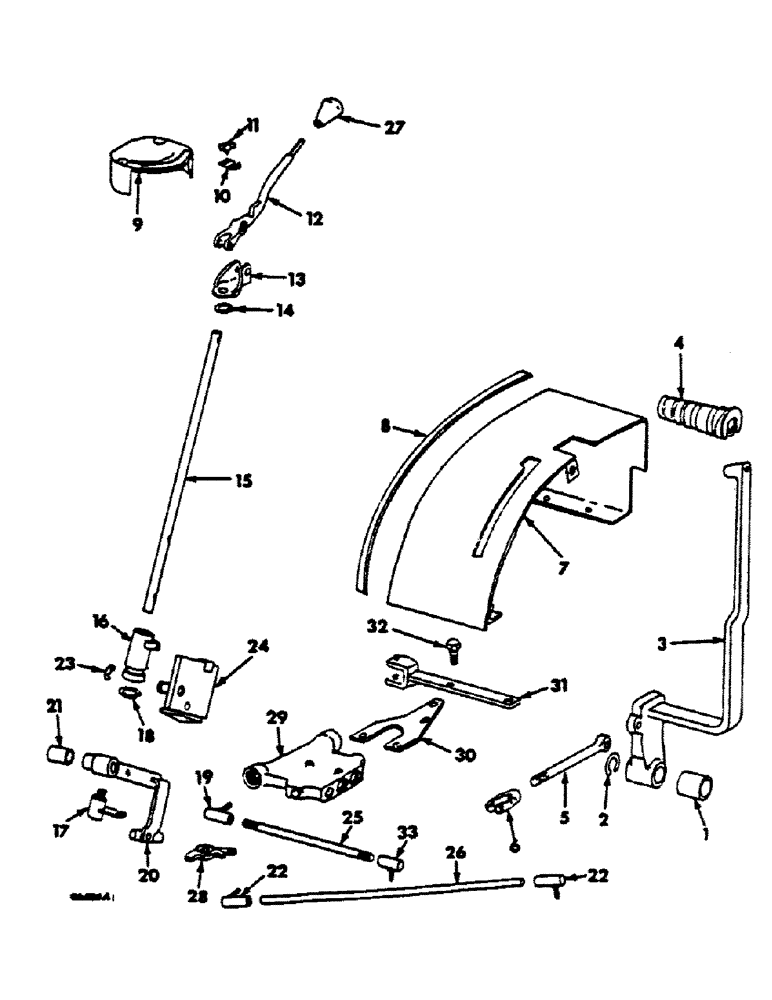

Запчасти Case IH 474 (07-43) - TRANSMISSION CONTROLS, HYDROSTATIC DRIVE (04) - Drive Train

HAND SPEED CONTROLS

1шт.

1

530934R1

SPACER

LEVER

1шт.

615192R1

WASHER

29/32 x 1-1/4 x .0299

1шт.

2

454331R1

SNAP RING,#87, Ext

Shift lever #87, Ext

1шт.

3

530536R1

LEVER

ASSY, RANGE SHIFT

1шт.

539245R1

BUSHING

RANGE SHIFT LOWER LEVER

1шт.

4

528138R1

HANDLE

RANGE SHIFT UPPER LEVER

1шт.

426372

HEX SOC SCREW,3/8" - 16 x 2 3/4"

SCREW, 3/8-16 x 2-3/4 ZN SOC HD CAP

1шт.

5

528789R1

ROD

ASSY, RANGE SHIFT REAR

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

6

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 SHORT ADJ ROD

1шт.

END - OPTIONAL W/161003C1

1шт.

6

161003C1

NO LONGER SERVICED

CLEVIS, 3/8-24 x 2-1/4 ROD END - OPTIONAL W/116536

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 x 1-7/32 ROD END

1шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x .051

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

PIN, 3/8 x 1-11/32 ROD END

1шт.

Q3641

WASHER

13/32 x 3/4 x .024

1шт.

7

529385R21

HOUSING ASSY.

HOUSING ASSY, TRANSMISSION SHIFT

1шт.

PATTERN

1шт.

8

- NOT USED -

1шт.

9

534363R1

HOUSING

ASSY, HYDROSTATIC CONTROL

1шт.

154041

SCREW, 5/16-18 x 2 C-Z CR REC FIL HD

1шт.

MACH

2шт.

10

531339R2

STOP

HYDROSTATIC CONTROL HANDLE

1шт.

11

531340R2

KNOB, HYDROSTATIC CONTROL HANDLE

1шт.

FLUTED

1шт.

12

531341R2

HANDLE

HYDROSTATIC CONTROL

1шт.

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16 x 1-1/4 DOWEL

1шт.

13

3112834R1

BRACKET

CONTROL HANDLE PIVOT

1шт.

82635H

CLEVIS PIN,5/16" x 1 3/8"

PIN, 5/16 x 1-3/8 ROD END

1шт.

NLS

NO LONGER SERVICED

PIN, 7/64 x 3/4 COTTER

1шт.

495-21031

WASHER,1/4"

.750 x .312 x .051

1шт.

14

454331R1

SNAP RING,#87, Ext

Control handle pivot bracket #87, Ext

1шт.

15

531344R1

ROD

CONTROL HANDLE

1шт.

16

531360R1

SPARE PART

GATE ASSY, HYDROSTATIC CONTROL

1шт.

21072R1

PIN,3/16" x 1", Coiled

1шт.

17

531345R1

ARM ASSY.

ARM ASSY, SPEED CONTROL

1шт.

18

269181R1

SNAP RING,#75, Ext

Ring, Snap, , speed control arm hub #75, Ext

1шт.

20064R1

PIN,4.78mm OD x 31.75mm L

PIN, 3/16 x 1-1/4 DOWEL

1шт.

19

310673R1

BALL JOINT

JOINT, 5/16 x 2-3/8 C-Z BALL

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

531348R11

LEVER

ASSY, SHUTTLE CONTROL - ALSO INCLUDES BUSHING REF NO 21

1шт.

19962R1

DOWEL,3/8" x 3/4"

PIN, DOWEL 3/8 x 3/4

1шт.

21

531350R1

BUSHING

1шт.

22

534930R1

BALL JOINT

JOINT, 3/8-24 x 1-11/32 LH THD BALL

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , neutral gate latch pivot pin #50, .392" Dia, E-Type

1шт.

24

531353R1

LATCH ASSY, NEUTRAL GATE

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 ZND HEX HD CAP

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25

531358R1

ROD

SPEED CONTROL

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

455332

NUT,Jam, 5/16"-18, G5, LH

5/16-24 ZN PLTD LH THD HEX

1шт.

26

531359R1

ROD

SHUTTLE SPOOL CONTROL

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

23460R1

NUT,Jam, 3/8"-24, G5, LH

1шт.

27

402584R1

BUTTON

KNOB, CONTROL HANDLE

1шт.

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

28

403516R1

ARM

CAM ACTUATING

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

29

401852R91

LOCK VALVE

VALVE ASSY, DRIVE CONTROL - FOR COMPONENTS, SEE LIST OF PARTS UNDER DRIVE CONTROL VALVE

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 3 ZND HEX HD CAP

2шт.

42947V

CLEVIS PIN,1/4" x 1 1/8"

PIN, 1/4 x 1-1/8 ROD END

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

30

531372R1

BRACKET

SHUTTLE SPOOL CONTROL ROD

1шт.

31

531373R11

LEVER ASSY.

LEVER ASSY, SHUTTLE SPOOL CONTROL ROD

1шт.

141236

DOWEL

PIN, 3/8 x 1/2 DOWEL

2шт.

32

531375R1

BOLT,3/8" - 16 x 1 1/16"

PIVOT

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

33

25472R1

BALL JOINT

JOINT 5/16-24 x 2-3/8 CD PLTD LH THD

1шт.

HEX

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

ref

Part No.

English

1шт.

533595R1

DECAL

PRODUCT GRAPHIC, HYDROSTATIC CONTROL, NOT ILLUSTRATED

1шт.
