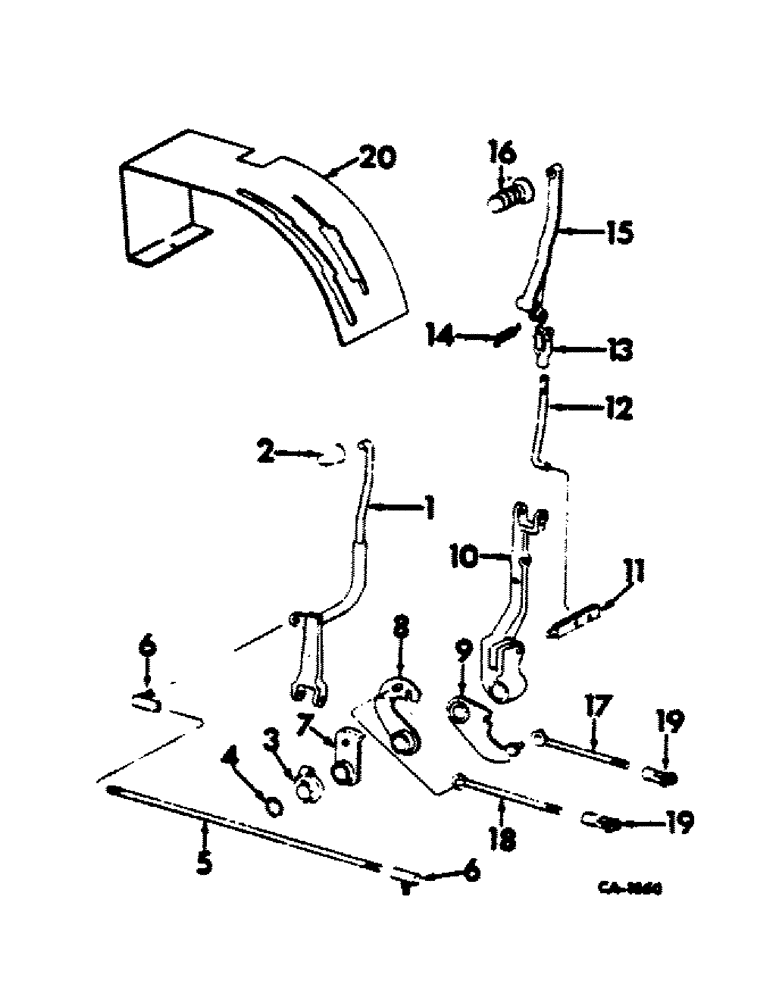

Запчасти Case IH 474 (07-42) - TRANSMISSION CONTROLS, SYNCHROMESH DRIVE (04) - Drive Train

1

530532R1

LEVER

ASSY, SPEED SHIFT

1шт.

2

379022R2

KNOB

SPEED SHIFT LEVER

1шт.

3

530932R1

HUB ASSY.

HUB ASSY, TRANSMISSION SHIFT HAND LEVER

1шт.

615192R1

WASHER

29/32 x 1-1/4 x .0299

1шт.

366281R1

PIN,3/8" x 2", Coiled

1шт.

4

454331R1

SNAP RING,#87, Ext

Shift lever #87, Ext

1шт.

5

528122R1

ROD

SPEED SHIFT LEVER

1шт.

6

537469R1

SWING JOINT

JOINT, 3/8-24 x 1-3/32 BALL - OPTIONAL W/392594R1

2шт.

6

392594R1

END ASSY.

JOINT, 3/8-24 x 1-11/32 BALL - OPTIONAL W/537469R1

2шт.

103026

NUT,3/8"-24, G5

3шт.

7

528123R1

PIVOT ASSY.

GATE ASSY, RANGE SHIFT

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

8

528126R2

LEVER ASSY.

LEVER ASSY, IDLER SHAFT INNER

1шт.

Q3641

WASHER

13/32 x 3/4 x .020

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

9

528129R1

LEVER ASSY.

LEVER ASSY, IDLER SHAFT OUTER

1шт.

Q3641

WASHER

13/32 x 3/4 x .020

1шт.

107761

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter), 1/16" x 5/8"

1шт.

10

530933R1

LEVER

ASSY, RANGE SHIFT

1шт.

22963R1

HEADED PIN,5/16" x 2 1/4"

PIN, 5/16 x 2-1/4 STD HD

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

11

528134R1

LATCH

RANGE SHIFT LEVER

1шт.

12

528135R1

ROD

RANGE SHIFT LEVER

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

13

104037

CLEVIS

5/16-24 x 2-1/4 ROD END - OPTIONAL W/161002C1

1шт.

13

161002C1

NO LONGER SERVICED

CLEVIS, 5/16-24 x 2-1/4 ROD END - OPTIONAL W/104037

1шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1-1/16 ROD END

1шт.

14

528136R1

SPRING

SHIFT LEVER RETURN

1шт.

15

528137R1

LEVER

RANGE SHIFT UPPER

1шт.

16

528138R1

HANDLE

RANGE SHIFT UPPER LEVER

1шт.

426372

HEX SOC SCREW,3/8" - 16 x 2 3/4"

SCREW, 3/8-16 x 2-3/4 ZN SOC HD CAP

1шт.

17

528139R1

ROD ASSY.

ROD ASSY, RANGE SHIFT FRONT

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

528141R1

ROD ASSY.

ROD ASSY, RANGE SHIFT REAR

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

19

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 SHORT ADJ ROD END - OPTIONAL W/161003C1

1шт.

19

161003C1

NO LONGER SERVICED

CLEVIS, 3/8-24 x 2-1/4 ROD END - OPTIONAL W/116536

2шт.

865197C1

PIN, 3/8 x 1-7/32 ROD END

2шт.

95-11041

WASHER,3/8"

13/32 x 13/16 x .051

2шт.

193373

PIN, 3/32 x 3/4 COT.

2шт.

20

529384R21

HOUSING ASSY.

HOUSING ASSY, TRANSMISSION SHIFT

1шт.
