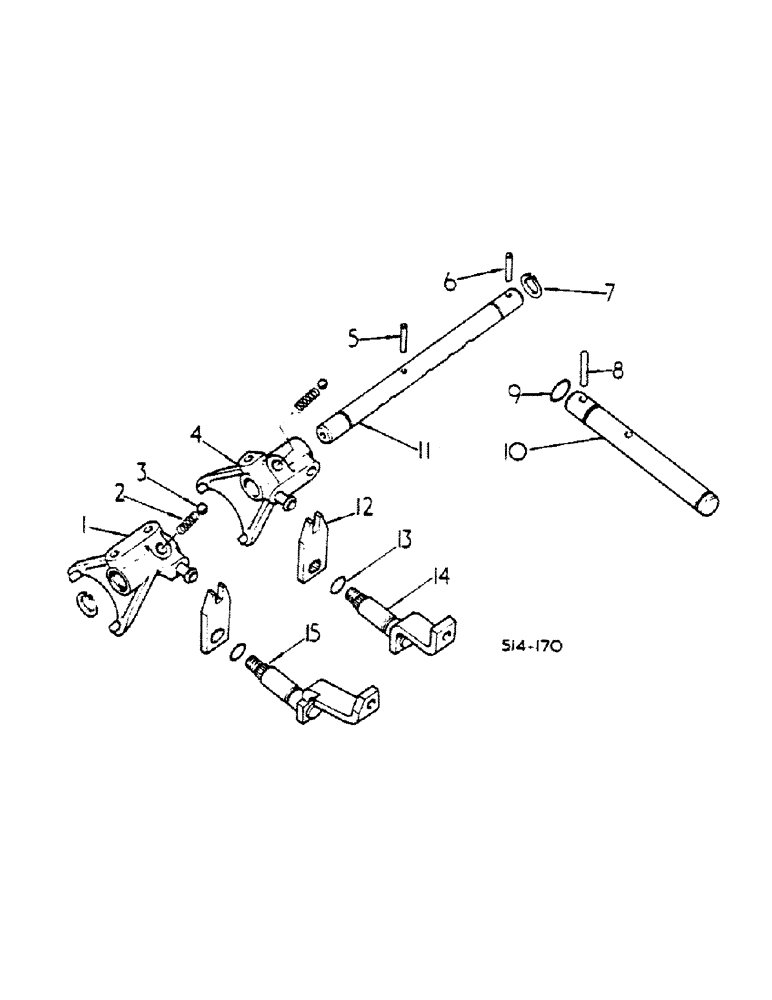

Запчасти Case IH 474 (07-41) - GEAR SHIFT MECHANISM, RANGE TRANSMISSION (04) - Drive Train

1

538911R2

NO LONGER SERVICED

FORK, FRONT - SYNCHROMESH DRIVE TRACTORS

1шт.

2

534053R1

SPRING

POPPET BALL - 1 USED FOR HYDROSTATIC DRIVE TRACTORS -E2199

2шт.

3

17013R1

BALL,13/32" Dia

Optional w/16013R1 13/32" Dia

2шт.

3

16013R1

BALL

13/32 CR STL - OPTIONAL W/17 013R1 - 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

4

538912R2

FORK

REAR - SYNCHROMESH DRIVE TRACTORS

1шт.

4

538913R2

NO LONGER SERVICED

FORK - HYDROSTATIC DRIVE TRACTORS

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885

PIN, 1/4 x 1-3/8 MED COILED SPRING

1шт.

7

661652R1

SNAP RING,#75, Ext

Shift fork rail - 1 used for hydrostatic drive tractors #75, Ext

2шт.

8

617940R1

PIN,5/16" x 1 3/4", Coiled

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

11/16 x 7/8 x 3/32

1шт.

10

402152R1

SHAFT

RANGE TRANS SHIFT LEVER IDLER - SYNCHROMESH DRIVE TRACTORS

1шт.

10

527853R1

SHAFT

HYDROSTATIC RANGE SHIFT LEVER - HYDROSTATIC DRIVE TRACTORS

1шт.

11

537473R1

RAIL ASSY.

RAIL, RANGE SHIFT FORK - SYNCHROMESH DRIVE TRACTORS

1шт.

11

402150R1

RAIL

RANGE SHIFT FORK - HYDROSTATIC DRIVE TRACTORS

1шт.

12

405169R2

ARM

RANGE SHIFT INNER - 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 NYLON INSERT - 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

13

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 - 1 USED FOR HYDROSTATIC DRIVE TRACTORS

2шт.

14

405167R2

ARM

ASSY, RANGE SHIFT OUTER REAR

1шт.

Q3501

WASHER

25/32 x 1-1/4 x .060

2шт.

15

405164R2

ARM

ASSY, RANGE SHIFT OUTER FRONT - SYNCHROMESH DRIVE TRACTORS

1шт.

Q3501

WASHER

25/32 x 1-1/4 x .060

2шт.
